AW-AM457-D Evaluation Board

AW-AM457-D-uSD

Roll over image to zoom in

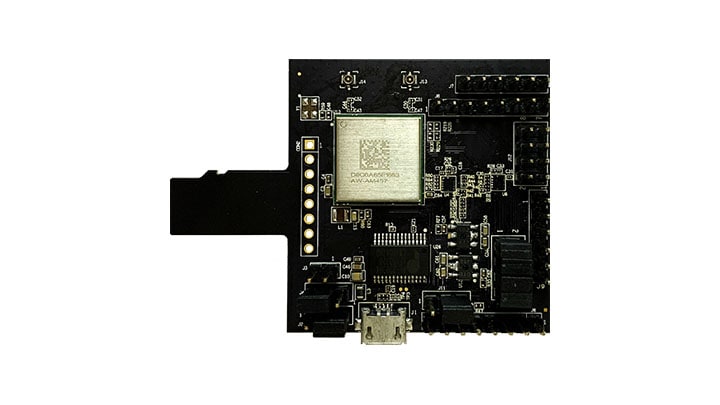

AW-AM457-D-uSD is the evaluation board of AW-AM457-D, which support 802.11a/b/g/n 1x1 2.4 GHz/5 GHz with 15x15 LGA form-factor. It has one antenna to support Wi-Fi 1 (Transmit) x 1 (Receive) communications. Another antenna to support Bluetooth communications. The host interface supports SDIO for Wi-Fi® and UART for Bluetooth®.

Supported Devices

Wireless Connectivity

Wi-Fi® + Bluetooth® + 802.15.4

  • IW416: 2.4/5 GHz Dual-Band 1x1 Wi-Fi® 4 (802.11n) + Bluetooth® 5.2 Solution

Features

Wi-Fi

  • Wi-Fi 4 802.11a/b/g/n 1x1

Bluetooth

  • Bluetooth 5.1

Interface

  • Wi-Fi for SDIO and BT for UART

Antenna Pins

  • ANT1 for Wi-Fi Tx/Rx
  • ANT2 for Bluetooth Tx/Rx

Buy Options

AW-AM457-D-Image

Click to expand

AW-AM457-D
Active

AW-AM457-D Evaluation Board.
