FRDM Development Board for RW612 Wi-Fi 6 + Bluetooth Low Energy + 802.15.4 Tri-Radio Wireless MCU

FRDM-RW612 Active

Roll over image to zoom in

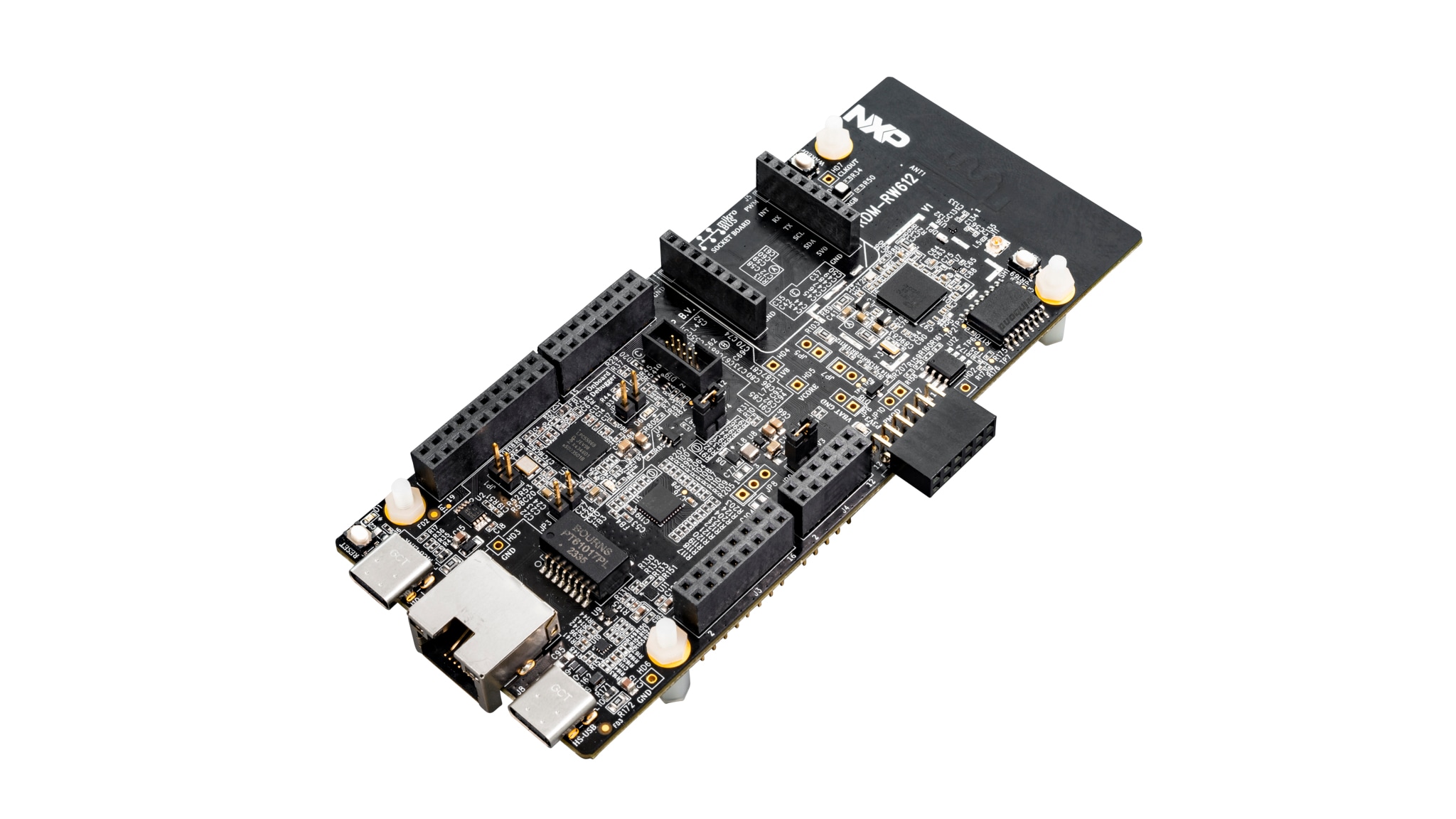

FRDM-RW612 is a compact and scalable development board for rapid prototyping of the RW61x series of Wi-Fi 6 + Bluetooth Low Energy + 802.15.4 tri-radio wireless MCUs.

It offers easy access to the MCU’s I/Os and peripherals, integrated open-standard serial interfaces, external flash memory and on-board MCU-Link debugger.

NXP's Expansion Board Hub for add-on boards, the Application Code Hub for software examples and more are available through the MCUXpresso Developer Experience.

Block Diagram

FRDM-RW612

FRDM-RW612 Block diagram new
Get diagram PDF

Supported Devices

Wireless Connectivity

Wi-Fi® + Bluetooth® + 802.15.4

  • RW610: Wireless MCU with Integrated Radio: 1x1 Wi-Fi® 6 + Bluetooth® Low Energy 5.4 Radios
  • RW612: Wireless MCU with Integrated Tri-radio: 1x1 Wi-Fi® 6 + Bluetooth® Low Energy 5.4 / 802.15.4

Power Management

Sensors

I3C/I²C Digital Temp. Sensors

  • P3T1755DP: I3C/I²C-Bus ±0.5 °C Accurate Digital Temperature Sensor

Features

Microcontroller

  • RW612 Arm™ Cortex™-M33 core @260MHz with optimized performance efficiency, 1.2 MB on-chip SRAM

Memory Expansion

  • Winbond QSPI flash (512Mbit): W25Q512JV
  • AP Memory QSPI pSRAM (64 Mbit): APS6404L-SQN-SN

Connectivity

  • SPI/I2C/UART connector (mikroBUS, Pmod™)
  • Ethernet Phy and connector
  • HS USB Type-C connectors
  • Dual-band, 1x1 Wi-Fi 6 radio with 20 MHz channel bandwidth
  • Bluetooth LE radio
  • 802.15.4 radio supporting Zigbee and Thread

Debug

  • On-board MCU-Link debugger with CMSIS-DAP
  • JTAG/SWD connector

Sensor

Expansion Options

  • Arduino® Header (with FRDM expansion rows)
  • FRDM Header
  • Pmod™
  • mikroBUS™

User Interface

  • RGB user LED, Reset, ISP, Wakeup buttons

Buy Options

FRDM-RW612-Image

Click to expand

FRDM-RW612
Active

FRDM Development Board for RW612 Wi-Fi 6 + Bluetooth Low Energy + 802.15.4 Tri-Radio Wireless MCU.

    $30.00 USD
    In Stock :91

    Normally ships 1-2 business days

    ADD TO CART
