Name: PF8200/PF8100 Programming Board
Price: 193.20 USD

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

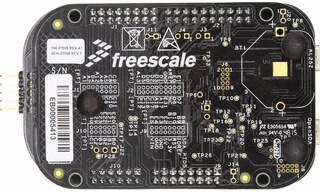

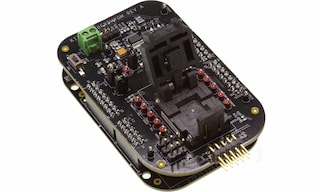

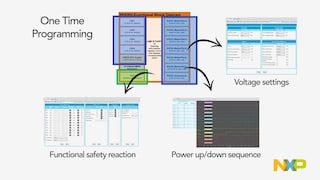

The KITPF8200FRDMPGM is a programming board featuring a 56 pin QFN socket compatible with all PF81xx and PF82xx PMICs. It integrates a communication bridge based on the FRDM-KL25Z development board to communicate with the FlexGUI software interface to program the OTP configuration.

Design Files

Software

Product Details

Block Diagram

Choose a diagram:

KITPF8200FRDMPGM Block Diagram

PF8100/PF8200 Multi-channel PMIC Block Diagram

KITPF8200FRDMPGM Block Diagram 2

PF8101/PF8201, 9-channel PMIC Block Diagram

KITPF8200FRDMPGM Block Diagram 3

Get diagram PDF

Supported Devices

Power Management

5 V PMIC Solutions

PF81-PF82: 12-Channel Power Management Integrated Circuit (PMIC) for High-Performance Processing Applications
PF8101-PF8201: 9-Channel Power Management Integrated Circuit (PMIC) for High-Performance Processing Applications
PF8121: 12-Channel Power Management Integrated Circuit (PMIC) for High-Performance Consumer Applications

Features

Programming Socket

Clamshell 56-pin QFN socket

System Features

5.0 V operating input voltage range (from USB connector)
Integrated boost converted to supply VDDOTP programming voltage
USB to I²C communication via the FRDM-KL25Z interface
In-line programming interface connector

Buy Options

Click to expand

KITPF8200FRDMPGM
Active

PF8200/PF8100 Programming Board.

Kit Contains

Assembled and tested KITPF8200FRDMPGM and preprogrammed FRDM-KL25Z MCU board in an anti-static bag
3.0ft. USB-STD A to USB-B-mini cable
USB to mini USB cable
Quick Start Guide

$193.20 USD

In Stock :9

Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order
