PF8100/PF8200 Customer Evaluation Boards

PF8100-PF8200-EVAL-KITS
Active

Roll over image to zoom in

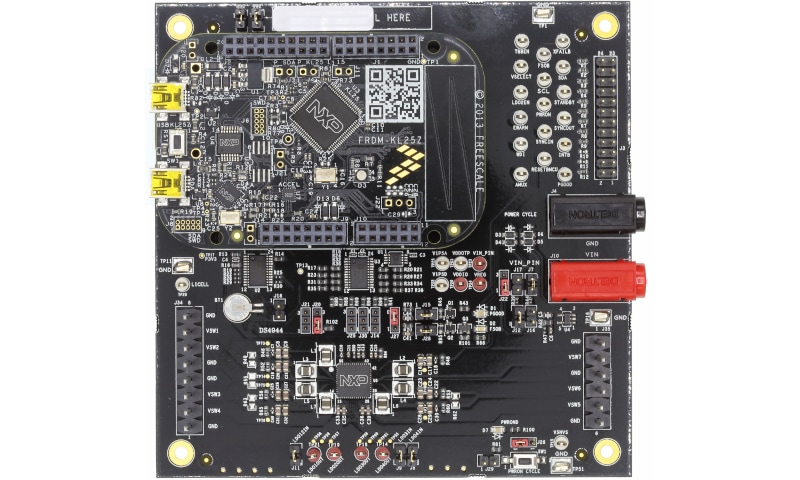

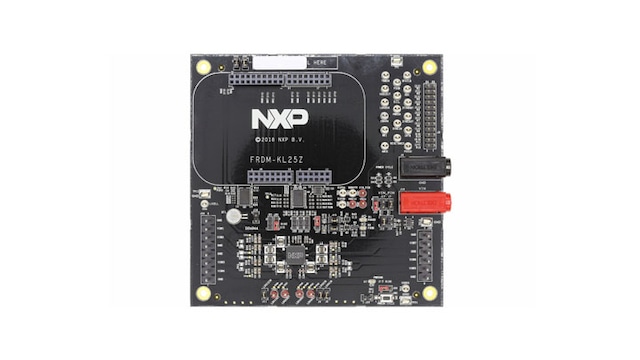

The KITPF8100FRDMEVM and KITPF8200FRDMEVM are customer evaluation boards featuring the PF8100 and PF8200 power management IC.

The kits integrate all hardware needed to fully evaluate the featured power management integrated circuit. It integrates a communication bridge based on the FRDM-KL25Z freedom board to interface with the FlexGUI software interface to fully configure and control the PF8100/ PF8200 PMIC.

Supported Devices

Power Management

PMICs

  • PF81-PF82: 12-Channel Power Management Integrated Circuit (PMIC) for High-Performance Processing Applications

Features

System Features

  • 2.5 V to 5.5 V operating input voltage range
  • USB to I²C communication via the FRDM-KL25Z interface
  • Up to 1.0 MHz I²C communication
  • Selectable hardwire default PMIC configuration or OTP/TBB operation
  • Advance system monitoring/diagnostic via PMIC and/or system AMUX
  • Leader/follower interface connector for multi-PMIC support
  • On-board I/O regulator with 1.8 V/3.3 V selectable output voltage

PMIC Features

  • Up to seven switching regulators with multiphase capability
  • Four LDO regulators with selectable switch mode operation
  • Programmable output voltage and current limits
  • Programmable switching frequency with selectable frequency spread spectrum
  • RTC supply with programmable coin cell charger
  • Voltage monitoring circuits
  • System watchdog monitoring

Buy Options

KITPF8100FRDMEVM-Image

Click to expand

  • KITPF8100FRDMEVM
    Active

  • PF8100/PF8200 Customer Evaluation Boards.

    • Assembled and tested KITPF8100FRDMEVM and preprogrammed FRDM-KL25Z microcontroller board in an anti-static bag
    • 3.0 ft. USB-STD A to USB-B-mini cable
    • Quick Start Guide
  • $229.14 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 10
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
KITPF8200FRDMEVM-Image

Click to expand

  • KITPF8200FRDMEVM
    Active

  • Freedom Expansion board, PF8200 PMIC, i.MX8,.

    • Assembled and tested KITPF8200FRDMEVM, and preprogrammed FRDM-KL25Z microcontroller board in an anti-static bag
    • 3.0 ft. USB-STD A to USB-B-mini cable
    • Quick Start Guide
  • $229.14 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 10
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
