Overview

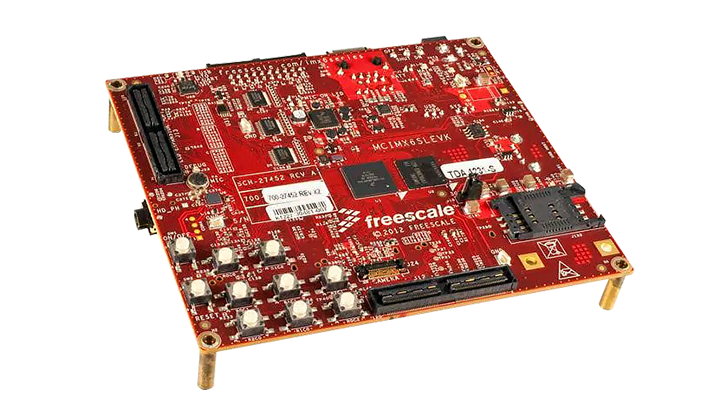

NXP^® delivers highly-flexible, market-focused development tools with an Evaluation Kit (EVK) based on the i.MX 6SoloLite applications processor.

The i.MX 6SoloLite is the first system-on-a-chip (SoC) with a high-performance 1 GHz Arm^® Cortex^®-A9 CPU and integrated E Ink^® and Sipix^® display controllers to drive current and next-generation electronic paper display (EPD) panels.

This EVK enables EPD and/or LCD or HDMI display, touch control, audio playback as well as the ability to add WLAN, a 3G modem or Bluetooth^® technology. The EVK was designed to facilitate software development with the goal of faster time to market through the support of both Linux^® and Android^™ operating systems.

Buy

MCIMX6SLEVK ^Active
Evaluation Kit, Hardware, i.MX 6SoloLite, No Display

1 @ US
$399.00

Buy Direct

Availability?

Distributor

Distributor Name	Region	Inventory	Inventory Date

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

IMXEBOOKDC3-E ^Active
Accessory Board, Hardware, i.MX 6SoloLite, i.MX 6Solo, i.MX 6DualLite, E-Ink Daughter Card

IMXEBOOKDC3-E
1 @ US
$499.00

Distributor

Distributor Name	Region	Inventory	Inventory Date

IMXEBOOKDC4 ^Active
IMXEBOOKDC4

IMXEBOOKDC4
1 @ US
$399.00

Buy Direct

Availability?

Distributor

Distributor Name	Region	Inventory	Inventory Date

Documents

Fact Sheet ( 1 )

iMX_6sololite Fact Sheet^{(REV
2
)}

NXP delivers a highly-flexible, market-focused evaluation kit (EVK) based on the i.MX 6SoloLite applications processor. The i.MX 6SoloLite is the first system-on-a-chip (SoC) designed specifically for eReaders that incorporates a high-performance 1 GHz Arm^® Cortex^®-A9 CPU and integrated E Ink® and Sipix® display controllers to drive current and next-generation electronic paper display (EPD) panels.
- PDF
- 126.8 kB
- 04 Nov 2015
- IMX6SLEVKFS
- [ English , Chinese ]
i.MX 6SoloLite评估套件 - 简介^{(REV
1
)}
- PDF
- 126.8 kB
- IMX6SLEVKFS

Design Resources

Design Tools & Files ( 2 )

Printed Circuit Boards and Schematics ( 2 )

Design files, including hardware schematics, Gerbers, and OrCAD files.^{(REV
1
)}
- ZIP
- 6.2 MB
- 2012-11-12 00:00:00
- iMX6SL_EVK_DESIGNFILES
Download
i.MX 6SoloLite Evaluation Kit schematic^{(REV
0
)}
- PDF
- 291.7 kB
- 2012-11-12 00:00:00
- MCIMX6SLEVK
Download

Software

Development Software ( 6 )

Code Generation Tools ( 1 )

i.MX High Assurance Boot Reference Code Signing Tool^{(REV
3.1.0
)}

NXP^® Code Signing Tool for the High Assurance Boot library. Provides software code signing support designed for use with i.MX processors that integrate the HAB library in the internal boot ROM
- TGZ
- 15871 KB
- 2018-10-15 00:00:00
- IMX_CST_TOOL
Download

IDE and Build Tools ( 5 )

VivanteVTK-v6.2.4.p4.1.7.8^{(REV
v6.2.4.p4.1.7.8
)}

Vivante Tool Kit v6.2.4.p4.1.7.8
- ZIP
- 1 KB
- 2019-04-23 16:22:00
- VivanteVTK-v6.2.4.p4.1.7.8
Download
IMX6_L4.9.11_1.0.0_GPU_TOOL^{(REV
L4.9.11_1.0.0
)}

L4.9.11_1.0.0 i.MX VivanteVTK file
- GZ
- 58159 KB
- 2017-09-27 16:34:00
- IMX6_L4.9.11_1.0.0_GPU_TOOL
Download
IMX6_L4.1.15_2.0.0_GPU_TOOL^{(REV
L4.1.15_2.0.0
)}

L4.1.15_2.0.0 i.MX VivanteVTK file
- GZ
- 49.4 MB
- 2016-10-10 00:00:00
- IMX6_L4-1-15_2-0-0_GPU-TOOL
Download
IMX6_L4.1.15_1.1.0_GPU_TOOL^{(REV
L4.1.15_1.1.0
)}

L4.1.15_1.1.0 i.MX VivanteVTK file
- GZ
- 48208 KB
- 2016-04-20 00:00:00
- IMX6_L4.1.15_1.1.0_GPU_TOOL
Download
L3.14.52_1.1.0-ga_gpu-tools.tar.gz^{(REV
L3.14.52_1.1.0
)}

L3.14.52_1.1.0 i.MX VivanteVTK file
- GZ
- 50.6 MB
- 2015-12-18 00:00:00
- IMX6_L3.14.52_GPU_TOOL
Download

Processor	i.MX 6SoloLite 1 GHz based on Arm Cortex-A9 core NXP PF0100 PMIC
Memory	1 GB LPDDR2 running at 400 MHz Footprint for managed NAND (eMMC/eSD) SPI flash Three secure digital (SD)/multimedia card (MMC) sockets
Display Board Interface	E Ink EPD board with MMA8450QT three-axis digital accelerometer LCD daughter card HDMI daughter card
Audio	Wolfson WM8962 audio codec Audio HP jack External speaker connection Microphone
Connectivity	USB host connectors Micro USB OTG connector Ethernet (10/100T) connector SIM card socket Mini PCI Express^® connector
Debug	JTAG connector One console UART
