IMX35PDK: i.MX35 Product Development Kit (PDK)

Overview

The i.MX35 Product Development Kit (PDK) provides an innovative three stack hardware platform and robust software solution to enable engineers to develop with the i.MX35 processor.

Based on the powerful Arm1136^® core, the i.MX35 processor delivers a high-performance, low-power, cost-effective solution for a variety of devices, including those that require an open OS and a robust user interface such as automotive infotainment, portable navigation devices and human machine interface (HMI) applications.

Building on the success of the i.MX31 and i.MX27 PDKs, this comprehensive hardware and software development kit allows customers faster time to market by providing maximum re-use.

MoreLess

Target Applications

Entry Infotainment / Connected Radio

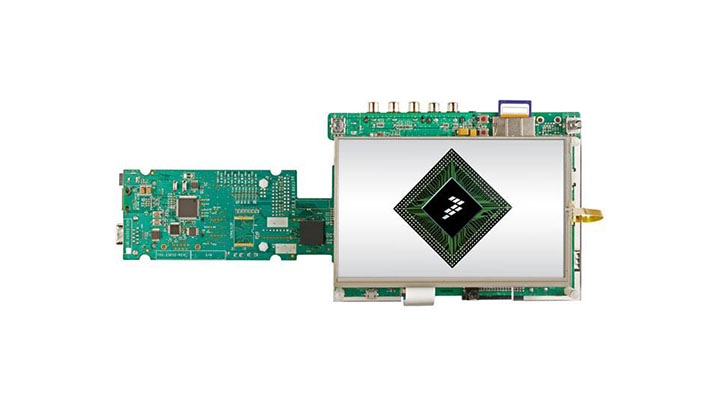

i.MX35 Product Development Kit Block Diagram

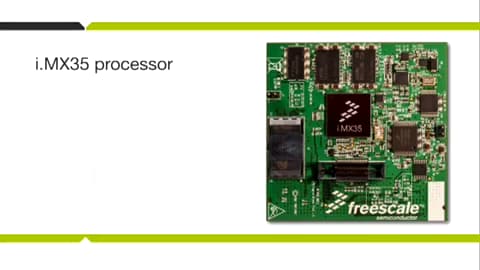

Introducing the i.MX35 Family and PDK

Specifications

Technical and Functional Specifications

General Features	Modular hardware enabling multiple connectivity technologies Optimized development software for Linux®, Windows® Embedded CE 6.0 and open operating systems Out-of-box experience, complete with demonstration software and performance data Maximum performance and power savings Complete "Design. Debug. Demo." capability as simple as 1,2,3 $1,500 USD
i.MX35 Applications Processor Module	Arm11^™ Memory 256 MB NAND FLASH 64 MB NOR FLASH 2 GB NAND FLASH Power Management (PMIC MC13982) + Power Circuitry Audio codec (SGTL 5000)
Debug Module (Software Development)	Debug ethernet port Debug serial port JTAG Reset, interrupt, boot switches Debug LEDs CodeTest interface Power source Current / power monitoring
Personality Module (Demo-Ready)	User I/O 7" TFT WVGA screen display with touchscreen CMOS image sensor U/I connector for display / keypad Auxiliary video input for display from external video source CAN connector Two USB ports 10/100 ethernet port MLB interface SD card, ATA, HDD interfaces

Supported Devices

Processors and Microcontrollers

i.MX Mature Processors

i.MX351 : Multimedia Applications Processors - Audio Connectivity, Automotive Applications
i.MX353 : Multimedia Applications Processors - Connectivity, Arm11™ Core
i.MX355 : Multimedia Applications Processors Based on Arm11^™ Core - Image Processing Unit
i.MX356 : Multimedia Applications Processors - Arm11™ Core, Vector Graphics Hardware Accelerator
i.MX357 : Multimedia Applications Processors - LCD Controller, OpenVG^™, Camera Interface, Arm11^™ Core

Power Management

PMICs

MC13892 : Power Management (PMIC) for i.MX35/51

Audio

Audio Converters

SGTL5000 : Ultra-Low-Power Audio Codec

MoreLess
