PF1510 Evaluation Board for Low Power Application Processors

FRDM-PF1510EVM Active

Roll over image to zoom in

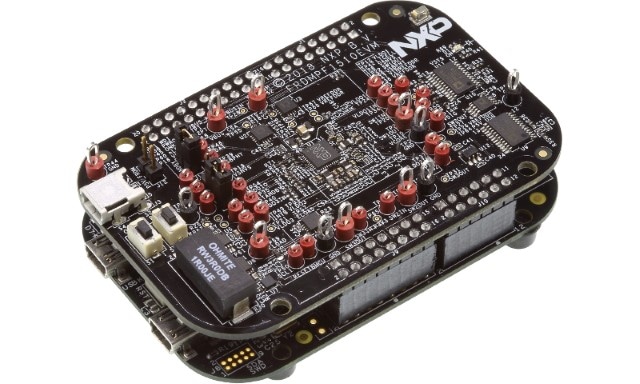

The FRDM-PF1510EVM Evaluation Board (EVB) is an easy-to-use circuit board allowing the user to exercise all the functions of the PF1510 Power Management IC (PMIC). The EVB integrates the popular KL25Z Freedom Board which is used as an interface between the GUI and the PF1510. Analog-to-Digital Converters (ADCs) in the KL25Z Freedom Board is used to monitor the regulator voltages through the GUI. The schematic and layout are provided as a reference to accelerate system design.

Product Details

Supported Devices

Power Management

PMICs

  • PF1510: Power Management Integrated Circuit (PMIC) for Low Power Application Processors

Features

General Specifications

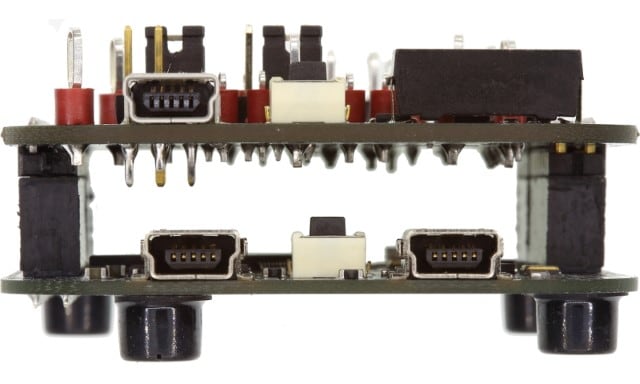

  • Integrated KL25Z Freedom Board for control.

Connectivity

  • Standard Mini-USB connector for communication with PC.

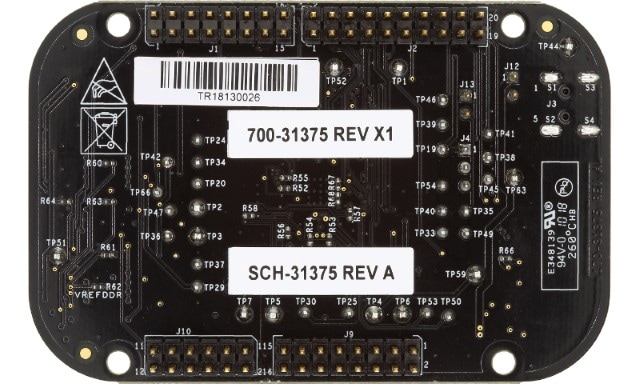

  • Numerous test points provide easy access for monitoring all power and signal nodes.

Power Management

  • Analog-to-Digital Converters (ADCs) are used to monitor voltage and current.

Support

  • Four layer board layout supports standard design rules.

Buy Options

FRDMPF1510EVM-Image

Click to expand

  • FRDMPF1510EVM
    Active

  • PF1510 Evaluation Board for Low Power Application Processors.

    • Cable, USB A-M to B-M mini
    • Quick start guide
  • $141.45 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 21
    • Shipping: Normally ships 1-2 business days
ADD TO CART
