Low-Power PowerQUICC® II Pro Processor with DDR2, eSDHC, PCI Express, eTSEC, USB, IEEE® 1588

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

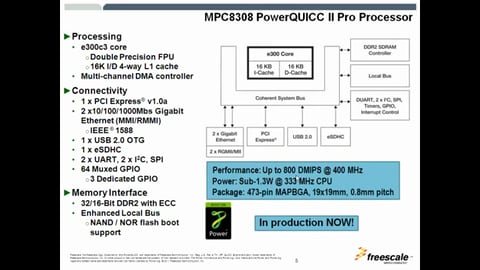

Click over video to play

The MPC8308 processor is optimized for low-cost and low-power providing a highly integrated PowerQUICC^® II Pro processor that addresses requirements of networking applications such as smart grid home energy gateways, data concentrators, wireless LAN access points, wireless femto base stations, consumer printing and industrial applications such as industrial control and factory automation. MPC8308 processor extends the PowerQUICC II Pro family combining higher CPU performance and high-speed peripherals with low power consumption at a very aggressive cost.

For networking applications, the gigabit Ethernet MACs support connectivity to the wired network while the PCI Express^® and SDIO interfaces offer connectivity to wireless LAN or 3G and 4G modem devices. The MPC8308 features integrated IEEE^® 1588 version 2 time synchronization offering extremely precise clock synchronization for applications such as time-sensitive telecommunications services, industrial network switches, powerline networks and test/measurement devices.

Data Sheet

Reference Manual

Product Details

Block Diagram

Freescale PowerQUIICC MPC8308 Communications Processor Block Diagram

Get diagram PDF

Features

e300c3 core built on Power Architecture^® technology, up to 400 MHz
16 KB instruction/16 KB data cache
DDR2 memory controller, 266 MHz data rate
Local bus controller
1 x PCI Express interface
2 x 10/100/1000 MACs, MII, RGMII
USB 2.0 host/device
eSDHC
DUART
2 x I²C
Serial peripheral interface
IEEE 1588v2 time synchronization
< 1.23W at 333 MHz (typical)
473-pin MAPBGA package, 19 mm x 19 mm
This product is included in NXP^®.s product longevity program, with assured supply for a minimum of 10 years after launch
