Evaluation Kit - MMPF0100, 14 Channel Configurable PMIC

KITPF0100EPEVBE
Active

Roll over image to zoom in

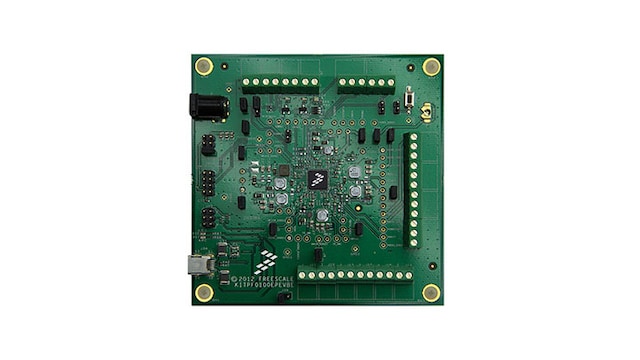

KITPF0100EPEVBE is the evaluation board for the NXP® MMPF0100 Power Management Integrated Circuit (PMIC) in a standalone environment.

Evaluate the MMPF0100 under specific operating parameters through the integrated USB to I²C communication and GUI software. The software enables easy communication between a user's PC and the evaluation board and allows you to configure and control the regulators and to program the one-time programmable (OTP) registers. The schematic and layout are provided as a reference to help expedite your system design.

NXP recommends the use of the KITPF0100SKTEVBE to support programming and verification of the MMPF0100 devices, while using the KITPFPGMEVME.

Supported Devices

Power Management

5 V PMIC Solutions

  • MMPF0100: 14-Channel Configurable PMIC

Features

Size

  • Terminal block connectors with 2.5 mm screws allow easy connections for bench evaluation

General Specifications

  • Embedded USB to I²C interface to access device registers
  • LED indicators for easy monitoring of PMIC and programming status
  • Standard Mini-USB connector for communication with PC
  • Numerous test points provide easy access for monitoring all power and signal nodes
  • Four layer board layout supports standard design rules
  • Top side board component placement for MMPF0100
  • GUI software allows user to:
    • Configure regulator voltages and start up sequences
    • Save and recall MMPF0100 configuration files
    • Develop configuration macros with a powerful scripting tool

Buy Options

KITPF0100EPEVBE-Image

Click to expand

KITPF0100EPEVBE
Active

Evaluation Kit - MMPF0100, 14 Channel Configurable Power Management Integrated Circuit.

    $270.25 USD
    Pending Stock
    ADD TO CART
