PF7100 OTP Programming Board

KITPF7100FRDMPGM Active

Roll over image to zoom in

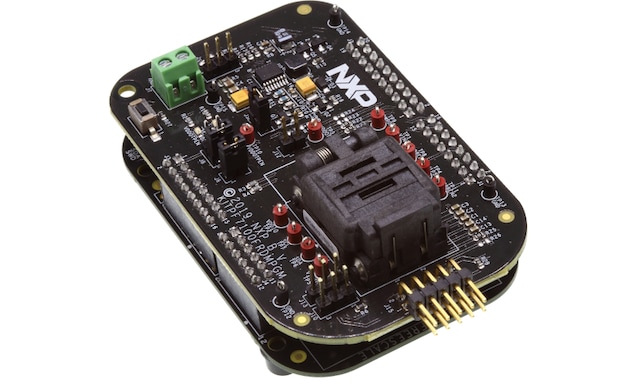

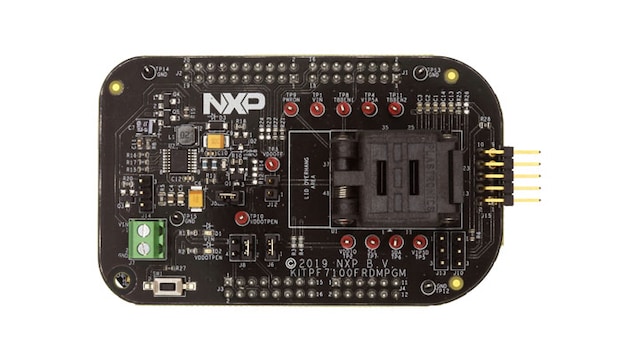

The KITPF7100FRDMPGM is a programming board featuring a 48-pin QFN socket for PF7100 PMIC. The kit integrates all hardware needed to program the OTP registers in the PMIC. It integrates a communication bridge based on the FRDM-KL25Z development board to communicate with the NXP GUI software interface to program the OTP configuration.

Supported Devices

Power Management

5 V PMIC Solutions

  • PF7100: 7-Channel Power Management Integrated Circuit for High Performance Applications, Fit for ASIL B Safety Level

Features

Programming socket

  • Clamshell 48-pin QFN socket

System features

  • 5.0 V operating input voltage range (from USB connector)
  • Integrated boost converted to supply VDDOTP programming voltage
  • USB to I²C communication via the FRDM-KL25Z interface
  • In-line programming interface connector
