i.MX RT1020 Evaluation Kit

MIMXRT1020-EVK

Roll over image to zoom in

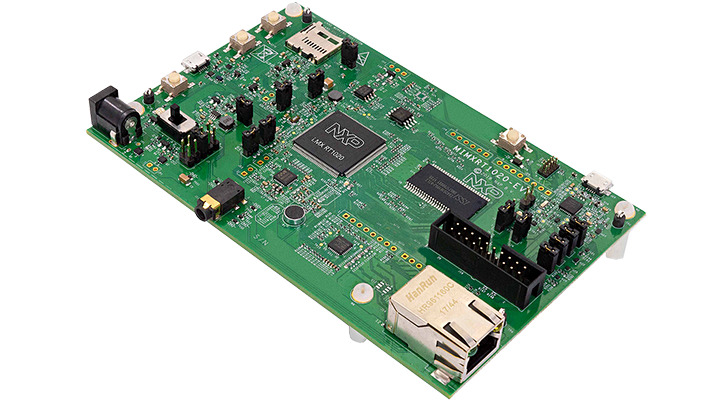

The i.MX RT1020 EVK is a 2-layer low-cost through-hole USB-powered PCB. At its heart lies the i.MX RT1020 crossover MCU in LQFP144 package, featuring NXP’s advanced implementation of the Arm® Cortex®-M7 core. This core operates at speeds up to 500 MHz to provide high CPU performance and excellent real-time response.

Support for FreeRTOS™ available within the MCUXpresso SDK.

The MIMXRT1020-EVK is supported by Zephyr™ OS for developing the Internet of Things with a free, open source embedded operating system. Click here to learn more.

Product Details

Select a section:

Supported Devices

Processors and Microcontrollers

i.MX RT Crossover MCUs

  • i.MX-RT1020: i.MX RT1020 Crossover MCU with Arm® Cortex®-M7 Core

Power Management

Load Switches

  • NX3P191UK: Logic-Controlled High-Side Power Switch
  • NX5P3090UK: USB PD and Type-C Current-Limited Power Switch

Features

Processor

  • MIMXRT1021DAG5A processor

Memory

  • 256 Mb SDRAM memory
  • 64 Mb QSPI Flash

Audio

  • Audio codec
  • 4-pole audio headphone jack
  • External speaker connection
  • Microphone

Connectivity

  • Micro USB host and OTG connectors
  • Ethernet (10/100T) connector
  • CAN transceivers
  • Arduino® interface
  • TF socket for SD card

Tools & OS Support

  • MCUXpresso SDK with optional FreeRTOS support
  • MCUXpresso IDE
  • MCUXpresso Config Tools
  • Zephyr® OS

Buy Options

MIMXRT1020-EVK-Image

Click to expand

  • MIMXRT1020-EVK

  • i.MX RT1020 Evaluation Kit.

  • Kit Contains

    • MIMXRT1020-EVK board
    • USB cable (Micro B)
  • $67.85 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 1
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor
