Universal 8-Bit GPIO Daughter Card for the Fm+ Development Board

OM13488 Active

Roll over image to zoom in

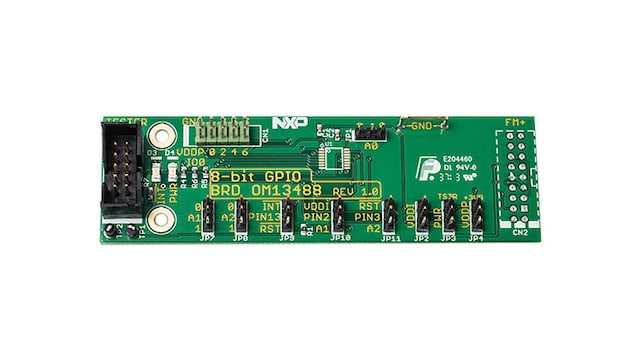

The OM13488 allows one to evaluate almost all of NXP’s 8-bit I²C GPIO Expander portfolio using the Fm+ Development Board and GUI. Pinout differences between devices are handled via jumpers and power supplies can provided by the development board or via an external power supply. No test device is mounted on the board, however a TSSOP16 footprint is provided allowing the user to solder the device he’s interested in onto the board. Connectors allow direct connection to the Fm+ Development Board and the TotalPhase Beagle. The I/O pins of the GPIO Expander may be directly observed and driven using a direct connection to the OM13303 GPIO Target Board.

Product Details

Supported Devices

Interfaces

General Purpose I/O (GPIO)

  • PCA9670PW: Remote 8-Bit I/O Expander for Fm+ I²C-Bus with Reset

Features

Key Features

  • TSSOP16 footprint to solder almost any NXP® 8-bit GPIO Expander

Connectivity

  • Direct plug-in connection to NXP Fm+ Development Board
  • Jumpers to handle pinout differences
  • I/O pins monitored via direct connection to GPIO Target Board OM13303

Power Management

  • Power supply either internal or external

Buy Options

OM13488-Image

Click to expand

  • OM13488
    Active

  • Universal 8-bit GPIO Daughter Card for the Fm+ Development Board.

  • $56.11 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
