Low-Power PowerQUICC® II Pro Processor with DDR2, eSDHC, 128-ch. HDLC/TDM, 10/100 Ethernet, USB, IEEE® 1588

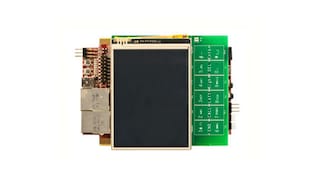

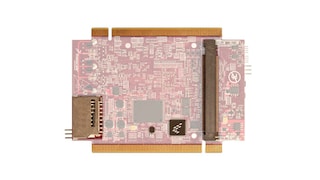

MPC8309

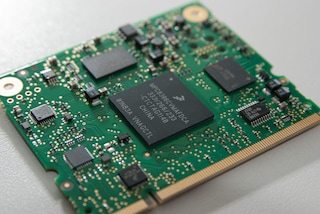

The MPC8309 PowerQUICC® II Pro is a member of the MPC830x family of cost-effective network communication processors that meet the requirements of multi-protocol control applications. It provides better CPU performance, additional functionality and faster interfaces than current PowerQUICC II processors while addressing important time to market, price, power consumption and board real estate requirements.

Product Details

Select a section:

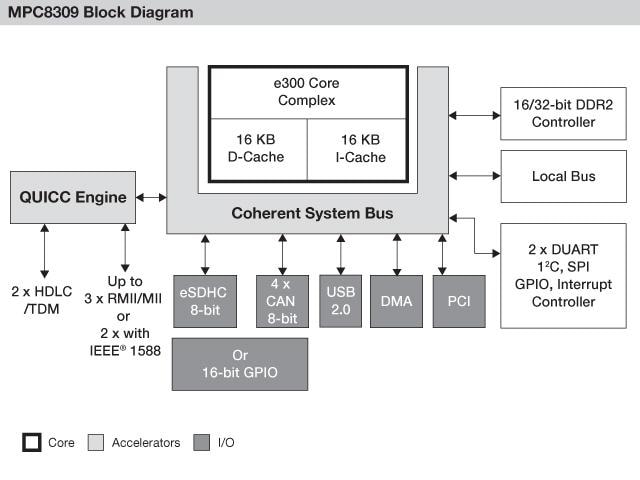

Block Diagram

Freescale PowerQUIICC MPC8309 Communications Processor Block Diagram

NXP<sup>&#174;</sup> PowerQUIICC MPC8309 Communications Processor Block Diagram
Get diagram PDF

Features

  • e300 core running up to 417 MHz, DDR2 @ 266 MHz
  • QUICC Engine® running up to 200 MHz
  • 2 x HDLC/TDM
  • 3 x 10/100 or 2 x 10/100 w/IEEE1588v2
  • USB 2.0
  • eSDHC (boot from eSDHC support)
  • 4 x CAN
  • 4 x UART
  • 32-bit PCI Interface
  • Local bus (boot from NOR/NAND flash memory support)
  • 1.03W typical at 333 MHz e300 core/200 MHz QUICC Engine (maximum = 1.37W)
  • 489-pin, 19 mm x 19 mm MAPBGA package
  • This product is included in NXP®.s product longevity program, with assured supply for a minimum of 10 years.
