The MPC567xK family of MCUs offers a compelling, low-cost solution for advanced driver assistance systems (ADAS). They are designed to handle industrial and automotive applications such as adaptive cruise control, smart headlamp control, lane departure warning and blind-spot detection.

Minimizes additional software and module level features through on-chip redundancy
Reduces system component and development costs
Comprehensive development tools simplify and accelerate system design
Part of the SafeAssure^® program, helping manufacturers achieve functional safety standard compliance

Data Sheet

Reference Manual

Product Details

Block Diagram

MPC567xK Microcontroller Block Diagram

Get diagram PDF

Features

Core

High-performance 180 MHz 32-bit core built on Power Architecture^{^®} technology with variable length encoding (VLE)
Memory management unit (MMU) with 32-entry fully associative translation lookaside buffer (TLB)
SPE (signal processing extension): DSP, SIMD and floating point capabilities

Memory

Up to 2 MB flash with error correcting codes (ECC)
4 x 16 KB EEPROM flash with ECC
Up to 512 KB SRAM with ECC
Dual crossbar with MPUs

I/O

4 x FlexCAN (32 message buffers each)
1 x FlexRay™ (64 message buffers)
1 x fast Ethernet controller
4 x LINFlex (SCI)
3 x IIC
3 x DSPI
3 x flexPWM (3 x 12 channels)
3 x eTimer (3 x 6 channels)
Quad ADC (11 channels each, 12-bit)
2 x CTU
External bus interface (follower only)
Parallel digital interface
MDDR interface

SafeAssure Program

When it comes to functional safety, NXP stands for quality and reliability. Our SafeAssure program simplifies system-level safety requirements in accordance with ISO 26262.
Read more

Design Resources

Design Files

1 design file

^Calculators
MPC56xx EEPROM Emulation Endurance Calculator

ZIPRev vBeta053Dec 17, 2012 00:00:009.1 MBMPC56XX_EEPROM_CALCULATOR

Download

Hardware

4 hardware offerings

^{Evaluation and Development Boards}

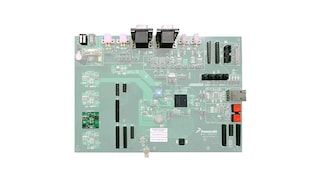

MPC567xK General Purpose Evaluation BoardFeatured
