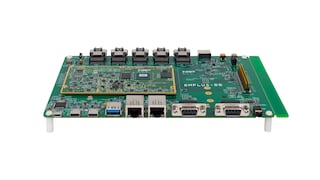

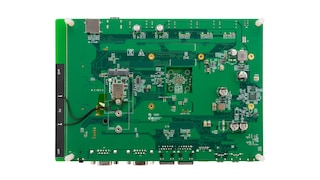

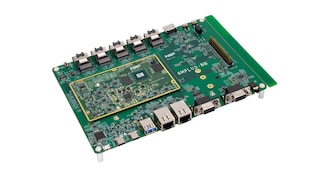

i.MX 8M Plus Evaluation Kit Enabling Power Measurement

8MPLUSLPD4-PEVK

Roll over image to zoom in

Product Details

Features

Processor

  • i.MX 8M Plus Quad applications processor
  • 4x Arm Cortex-A53 up to 1.8 GHz
  • 1x Arm Cortex-M7 up to 800 MHz
  • Cadence® Tensilica® HiFi4 DSP up to 800 MHz
  • Machine Learning (ML) accelerator

Memory

  • 6 GB LPDDR4
  • 16 GB eMMC 5.1
  • 64 MB QSPI Flash

Display and Camera Interfaces

  • MIPI-DSI Display Mini-SAS Connector
  • LVDS Display Mini-SAS Connector
  • 2x MIPI-CSI Camera Mini-SAS Connector

Wireless

  • AzureWave AW-CM276MA (NXP 88W8997): Wi-Fi 5 (802.11ac) 2x2 dual-band (2.4/5GHz) and Bluetooth 5.1

Audio

  • Audio DAC
  • Microphone/headphone jacks

Connectivity

  • 2x 10/100/1000 Ethernet port (1x w/ TSN)
  • USB 3.0 Type C for Power
  • USB 3.0 Type A
  • USB 3.0 Type C
  • PCIe M.2 interface
  • 2x CAN DB9 Female connectors

Debug

  • JTAG connector

Tools and OS support

  • Linux
  • Android
  • FreeRTOS

Buy Options

8MPLUSLPD4-PEVK-Image

Click to expand

  • 8MPLUSLPD4-PEVK

  • i.MX 8M Plus Evaluation Kit Enabling Power Measurement.

  • $688.85 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 8
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor
  • $74.75 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 16
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor
  • $194.35 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 6
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor
  • MX8-DSI-OLED1A

  • Evaluation Kit for the i.MX 8M Applications Processor.

  • $573.85 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 10
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor
