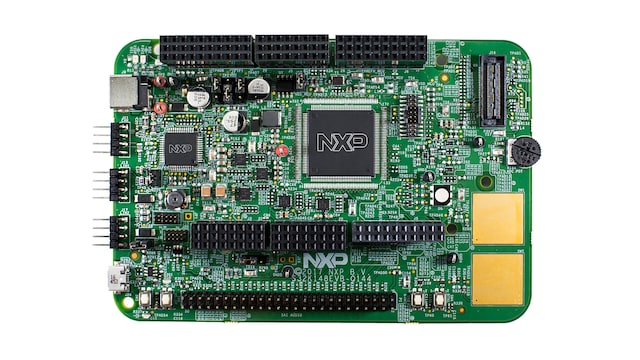

S32K148-Q176 Evaluation Board for Automotive General Purpose

S32K148EVB
Active

Roll over image to zoom in

The S32K148-Q176 is a low-cost evaluation and development board for general-purpose industrial and automotive applications.

Based on the 32-bit Arm® Cortex®-M4F S32K14 MCU, the S32K148-Q176 offers a standard-based form factor compatible with the Arduino® UNO pin layout, providing a broad range of expansion board options for quick application prototyping and demonstration.

Supported Devices

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

  • S32K1: S32K1 Microcontrollers for Automotive General Purpose

Power Management

12 V, 24 V, and 48 V SBC Solutions

  • UJA113xHW: Buck/Boost High-Speed CAN/Dual LIN System Basis Chip Family
  • UJA113xA: Buck/Boost High-Speed CAN/LIN System Basis Chip

Features

Compatibility

  • Arduino UNO pin-out compatible with expansion “shield” support

Adapters

  • OpenSDA: Serial and Debug Adapter with support for several industry-standard debug interfaces

Size and Price

  • Small form factor
  • Low cost

Compatibility

  • Easy access to the MCU I/O header pins for prototyping
  • Arduino UNO pint-out compatible with expansion “shield” support

Memory

  • Integrated 8 MB QSPI NOR MX25L6433F Flash memory
  • External flash memory MX25L6433F on board

Interfaces

  • On-board connectivity for CAN, LIN, UART/SCI
  • Ethernet connector compatible with different ethernet daughter cards

Power

  • Flexible power supply options: micro USB or external 12 V supply
  • Voltage supply options for 3.3 V or 5 V

Components

  • 2 x touchpads
  • 1 x potentiometer for precise voltage and analog measurement
  • 1 x RGB LED
  • 2 x push buttons

Buy Options

S32K148EVB-Q176-Image

Click to expand

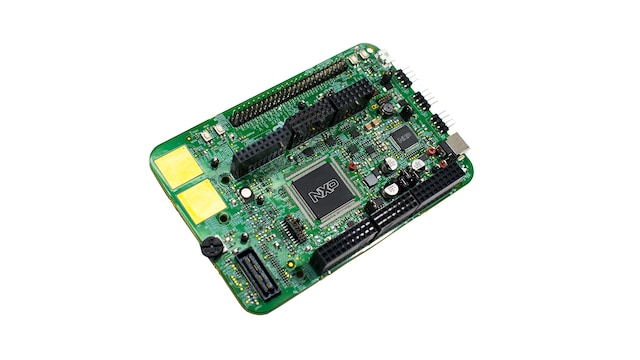

S32K148EVB-Q176
Active

S32K148 Evaluation Board for General Purpose.

    $199.00 USD
    In Stock :2

    Normally ships 1-2 business days

    ADD TO CART
    Order from distributors
    S32K148EVB-KIT-Image

    Click to expand

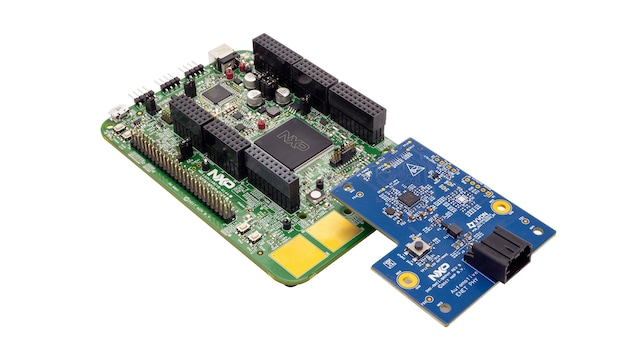

    S32K148EVB-KIT
    Active

    S32K148EVB-Q176 with ADTJA1101-RMII Ethernet Adapter.

      $279.00 USD
      In Stock :2

      Normally ships 1-2 business days

      ADD TO CART
      Order from distributors
