Arm9™ microcontroller with CAN, LIN, and USB

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

The LPC2921/2923/2925 combine an ARM968E-S CPU core with two integrated TCM blocks operating at frequencies of up to 125 MHz, Full-speed USB 2.0 device controller, CAN and LIN, up to 40 kB SRAM, up to 512 kB flash memory, two 10-bit ADCs, and multiple serial and parallel interfaces in a single chip targeted at consumer, industrial, and communication markets. To optimize system power consumption, the LPC2921/2923/2925 has a very flexible Clock Generation Unit (CGU) that provides dynamic clock gating and scaling.

See product image

Data Sheet

Application Notes

Product Details

Block Diagram

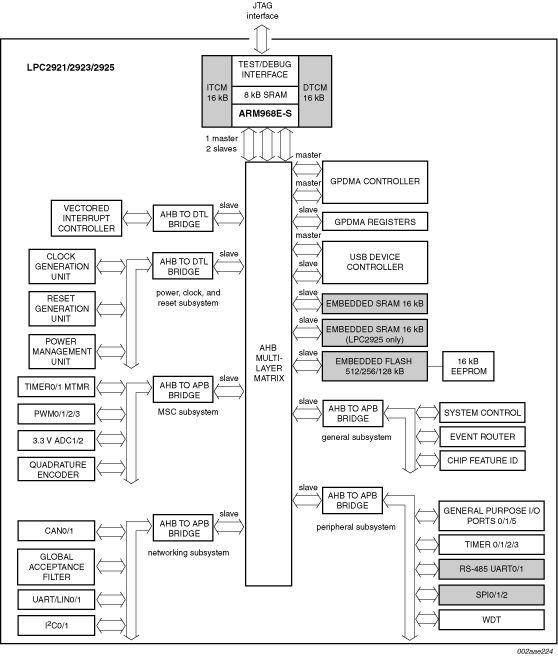

Block diagram: LPC2921FBD100, LPC2923FBD100, LPC2925FBD100

Get diagram PDF

Features

Main Features

ARM968E-S processor running at frequencies of up to 125 MHz maximum.
Multi-layer AHB system bus at 125 MHz with three separate layers.
Dual-leader, eight-channel GPDMA controller on the AHB multilayer matrix whICh can be used with the Serial Peripheral Interface (SPI) interfaces and the UARTs, as well as for memory-to-memory transfers including the TCM memories.
Up to 60 general-purpose I/O pins with programmable pull-up, pull-down, or bus keeper.
Vectored Interrupt Controller (VIC) with 16 priority levels.
Up to 16 level-sensitive external interrupt pins, including USB, CAN and LIN wake-up features.
Configurable clock-out pin for driving external system clocks.
Processor wake-up from power-down via external interrupt pins; CAN or LIN activity.
Flexible Reset Generator Unit (RGU) able to control resets of individual modules.
Second CGU (CGU1) with its own PLL generates a configurable clock output.
Standard Arm^{^®} test and debug interface with real-time in-circuit emulator.
Boundary-scan test supported.
ETM/ETB debug functions with 8 kB of dedicated SRAM also accessible for application code and data storage.
144-pin LQFP package.
-40 °C to +85 °C ambient operating temperature range.
