32 Bit Microcontroller

  • Not Recommended for New Designs
  • This page contains information on a product that is not recommended for new designs.

Product Details

Select a section:

Block Diagram

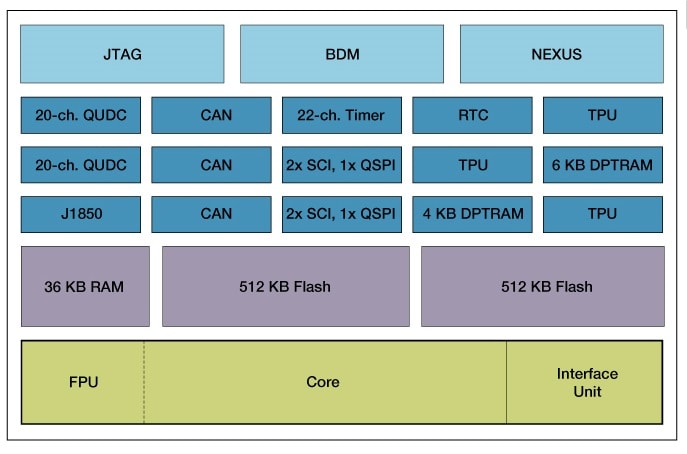

MPC566 Block Diagram

MPC566 Block Diagram


  • Supports code compression
  • Three time processor units (TPU3)
    • TPU3_A and TPU3_B are connected to DPTRAM_AB (6 KB)
    • TPU3_C is connected to DPTRAM_C (4 KB)
  • A 22-timer channel modular I/O system (MIOS14)
    • Same as MIOS1 plus a real-time clock sub-module (MRTCSM), four counter sub-modules (MCSM), and four pulse width modulated (PWM) sub-modules (MPWMSM)
  • Three TouCAN modules (TOUCAN_A, TOUCAN_B, TOUCAN_C)
  • Two enhanced queued analog-to-digital converters (QADC64E_A, QADC64E_B) with up to 40 total analog channels. These modules are configured so each module can access all 40 of the analog inputs to the part (orthogonal)
  • Two queued serial multi-channel module (QSMCM_A, QSMCM_B), each of which contains a queued serial peripheral interface (QSPI) and two serial controller interfaces (SCI/UART)
  • A J1850 (DLCMD2) communications module
  • A NEXUS debug port (class 3) – IEEE ®-ISTO 5001-1999
  • JTAG and background debug mode (BDM)
