32-bit Microcontrollers

MPC555
  • Not Recommended for New Designs
  • This page contains information on a product that is not recommended for new designs.

The MPC555 MCU offers a high-speed solution designed for automotive applications such as engine and transmission control, as well as robotics and avionics control.

  • Accelerates advanced algorithms necessary to support complex applications
  • Includes high-performance data manipulation capabilities
  • Allows for flexibility to change or upgrade products late in the production cycle
  • Offers low development costs and quick time-to-market cycles

Product Details

Select a section:

Block Diagram

MPC555 Block Diagram

MPC555 Block Diagram
Get diagram PDF

Features

  • 40 MHz core with floating point unit
  • 26 KB of static RAM
  • 448 KB flash EEPROM memory with 5-volt programming (CMF)
  • Flexible memory protection unit
  • GPIO support
  • Two time processor units (TPU3)
  • 18-channel modular I/O system (MIOS1)
  • Two queued analog-to-digital converter modules (QADC)
  • Two CAN 2.0B controller modules (TouCANs)
  • Queued serial multi-channel module (QSMCM)
  • U-bus system interface unit (USIU)

Documentation

Quick reference to our documentation types.

Filters

1-5 of 100 documents

Show All

Design Resources

Select a section:

Design Files

Filters

3 design files

  • Models

    IBIS models for the MPC555

    ZIPRev 0Jan 28, 2000 00:00:00146.0 KBMPC555IBISSW
    Download
  • Models

    IBIS models for the MPC555 Rev M

    ZIPRev 0Jan 28, 2000 00:00:00147.7 KBMPC555MIBISSW
    Download
  • Printed Circuit Boards and Schematics

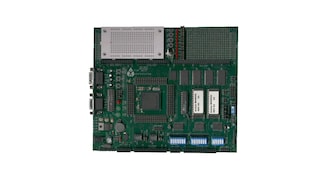

    MPC555 Evaluation Board Schematics

    ZIPRev 0Jul 1, 2000 00:00:00401.6 KBEVB555SCHEM
    Sign in required
    Download

Hardware

Filters

1 hardware offering

Software

Filters

1 software file

Note: For better experience, software downloads are recommended on desktop.
