Join our teamMIMXRT1050-EVK: i.MX RT1050 Evaluation Kit
Overview

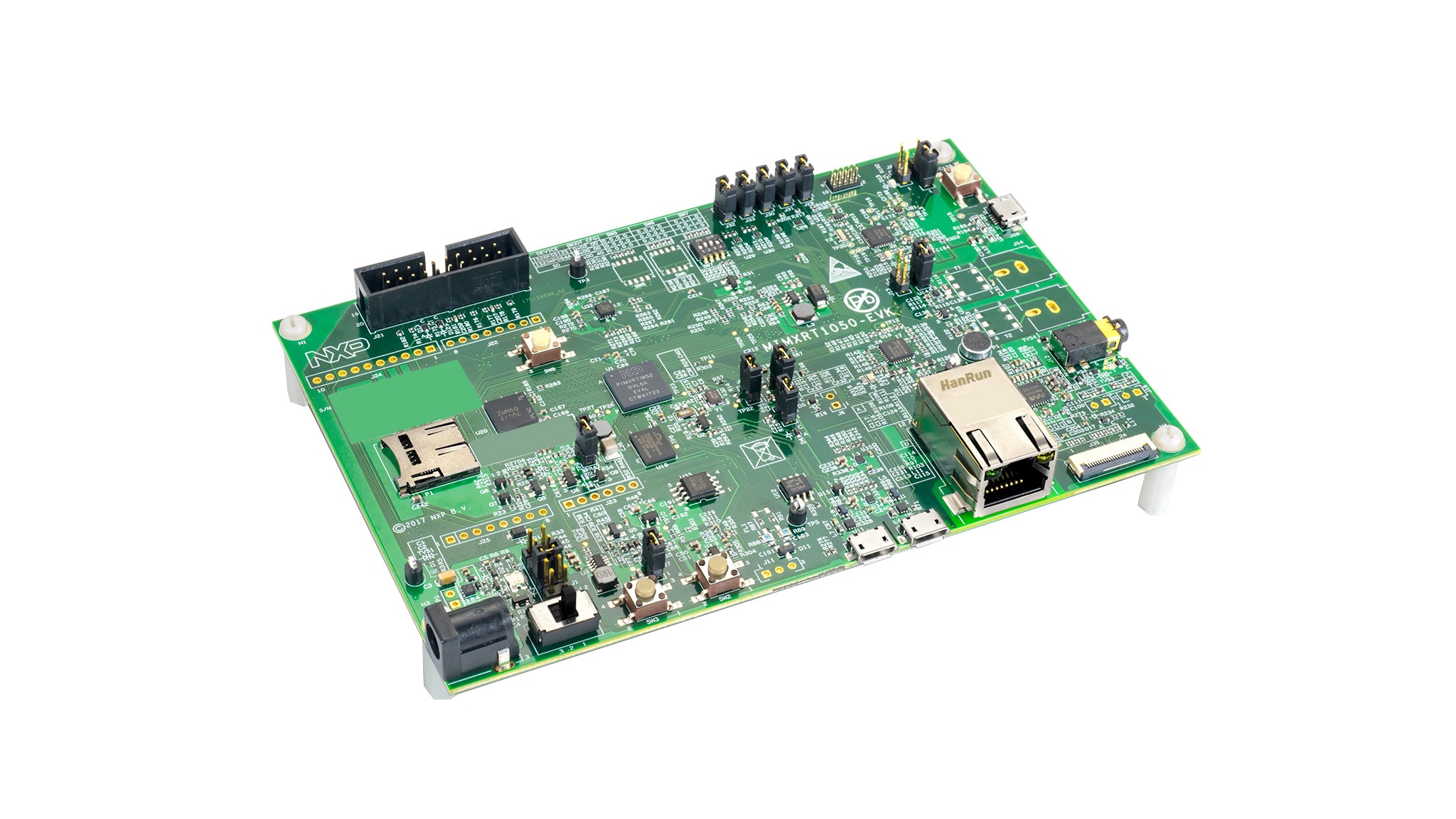

MIMXRT1050-EVB low cost evaluation kit for Arm® Cortex®-M7
MIMXRT1050-EVK low cost evaluation kit for Arm® Cortex®-M7
4.3 inch TFT 480*272 pixels with LED backlight and capacitive touch panel
Specifications
Technical and Functional Specifications
| Processor | MIMXRT1052DVL6A processor |
| Memory |
|
| Display and Audio |
|
| Connectivity |
|
| Software and support application development |
|
Supported Devices
Buy
-
IMXRT1050-EVKB Active
- i.MX RT1050 Evaluation Kit
- MIMXRT1050-EVK board
- USB cable (Micro B)
-
RK043FN02H-CT Active
- LCD Display
Documents and Software
Get Started with the MIMXRT1050-EVK
This page will help guide you through the process of learning about your MIMXRT1050-EVK board.
Documents ( 12 )
- Application Note ( 1 )
- Users Guide ( 8 )
- Application Note Software ( 1 )
- Fact Sheet ( 1 )
- Supporting Information ( 1 )
Design Resources ( 3 )
Software ( 15 )
Documents
Application Note ( 1 )
-
PMSM Field-Oriented Control on MIMXRT10xx EVK (REV 0 )
This application note describes the implementation of the sensor and sensorless speed and position motor control software for 3-phase Permanent Magnet Synchronous Motors (PMSM), including the motor parameters identification algorithm, on the MIMXRT10xx Evaluation Kit (EVK) based on the NXP i.MX RT10xx processor.
Users Guide ( 8 )
-
MIMXRT1050 EVK Board Hardware User’s Guide (REV 2 )
This EVK board is a platform designed to showcase the most commonly used features of the i.MX RT1050 Processor in a small, low cost package.
MIMXRT1050 EVK板硬件用户指南 (REV 2 )
-
i.MXRT1050 EVK Extended Feature Example Code and HW guide (REV 1 )
i.MX RT1050 EVK
-
IMXRT1050 EVKB Board Hardware User’s Guide (REV 0 )
This document is a Hardware User’s Guide for the IMXRT1050 Evaluation Kit (EVKB) based on the NXP Semiconductor i.MX RT1050 Processor.
-
PMSM Field-Oriented Control on MIMXRT10xx EVK (REV 0 )
This user’s guide provides a step-by-step guide on how to open, compile, debug, and run Permanent Magnet Synchronous Motor (PMSM) projects in most common IDEs, such as IAR Embedded Workbench®, MCUXpresso, and Vision® Keil® IDEs on MIMRT10xx EVK boards.
-
PMSM Field-Oriented Control on MIMXRT1050 EVK (REV 0 )
This user’s guide provides a step-by-step guide on how to open, compile, debug, and run Permanent Magnet Synchronous Motor (PMSM) projects in most common IDEs, such as IAR Embedded Workbench®, MCUXpresso, and μVision® Keil® IDEs on MIMXRT1050 EVK.
-
i.MX RT Series Crossover MCU Quick Start Guide (REV 1 )
The quick start guide provides an overview of the i.MX RT EVK contents; how to use the kit and the accessories needed to develop applications.
-
i.MXRT1050 EVKB Extended Feature Example Code and HW guide (REV 0 )
iMXRT1050 EVK
-
Get Started with the MIMXRT1050-EVK
This page will help guide you through the process of learning about your MIMXRT1050-EVK board.
Application Note Software ( 1 )
Fact Sheet ( 1 )
-
i.MX RT Series Crossover MCU Fact Sheet (REV 3 ) updated
The i.MX RT series of crossover MCUs combine high performance and real time functionality with integration, security and MCU-level usability at an affordable price.
Supporting Information ( 1 )
-
Flashloader_i.MXRT1050_GA_updated (REV 0 )
Design Resources
Design Tools & Files ( 3 )
Models ( 2 )
-
BDSL file for i.MXRT1050 (REV 1 )
NXP offers BSDL models for MCUs. Symbols and footprints in a single, vendor neutral BXL file are also provided. A free export tool provided by Accelerated Designs can be used to convert BXL files to the CAD system of your choice.
-
IBIS Model file for i.MXRT1050 (REV 1 )
NXP offers BSDL and IBIS models for MCUs. Symbols and footprints in a single, vendor neutral BXL file are also provided. A free export tool provided by Accelerated Designs can be used to convert BXL files to the CAD system of your choice.
Printed Circuit Boards and Schematics ( 1 )
-
IMXRT1050-EVKB Design files for A1 Silicon (REV 1 )
iMXRT1050 EVK Design files for A1 silicon including hardware schematics, Gerbers, and OrCAD files
Software
Development Software ( 5 )
Application Development Tools ( 2 )
-
STORYBOARD GUI DEVELOPMENT
Storyboard provides a faster way to create best-in-class GUIs across the widest range of target devices and was built with scalability and resource management at the forefront, ensuring that teams can build modern UIs on budget, and on time.
-
Embedded Wizard
Embedded Wizard is a solution that enables the creation of sophisticated GUIs for MCUs and MPUs. The GUI development is speeded-up with the use of the built-in WYSIWYG editing facility, instant prototyping, simulating and debugging on PC.
IDE and Build Tools ( 3 )
-
MCUXpresso Integrated Development Environment (IDE)
Easy-to-use software development tools for Kinetis, LPC, i.MX controllers based on Arm Cortex-M cores - GNU, Eclipse, profiling, debugger, trace
-
MCUXpresso Secure Provisioning Tool
A secure provisioning tool for certificate and key management, secure image preparation, and device provisioning and programming.
-
MULTI IDE
MULTI is a complete Integrated Development Environment (IDE) for embedded applications for C/C++, Embedded C++ and includes an advanced debugger, profiler, run-time memory checking, project builder, editor, instruction set simulator, and more.
Embedded Software ( 17 )
BSP, Drivers and Middleware ( 10 )
-
MCUXpresso Software Development Kit (SDK)
MCUXpresso SDK contains FreeMASTER Communication Driver for UART, CAN, and PD-BDM along with examples and related documentation.
-
LittlevGL Open-Source Graphics Library
Open-source graphics library provided through the MCUXpresso SDK for several NXP microcontrollers
-
MCUXpresso Config Tools - Pins, Clocks, Peripherals
Integrated system configuration and development tools for Kinetis, LPC, including SDK Builder, Pins, Clocks, Peripherals, Proj Gen, Power Estimation, more.
-
i.MXRT1050 A0 Pins Tool Data and How-to (REV 0 )
i.MXRT1050 A0 Pins Tool Data and How-to
-
I.MXRT1050 A0 SDK for Win (REV 2.3.0 )
-
I.MXRT1050 A0 SDK for Linux (REV 2.3.0 )
-
I.MXRT1050 A0 SDK for Mac (REV 2.3.0 )
-
MIMXRT1050-EVK Design files for A0 Silicon (REV 1 )
iMXRT1050 EVK Design files for A0 silicon including hardware schematics, Gerbers, and OrCAD files
-
MCUXpresso SDK - SDK Builder (REV 1.0 )
Software Development Kit for Arm® Cortex®-M Cores including Kinetis®, LPC MCUs and i.MX RT, with optional FreeRTOS™ and MCU Bootloader
-
Linux BSP for i.MX RT1050 EVK (
uClinux board support package (BSP) for the i.MX RT1050 development board (EVK).
Libraries ( 3 )
-
eIQ™ for TensorFlow Lite
TensorFlow Lite, a low latency, smaller footprint inference engine, uses the Eigen library and techniques such as pre-fused activations and quantized kernels.
-
NXP emWin Libraries
High performance graphics library from NXP and SEGGER Microcontroller provided in binary form for free commercial use with any NXP microcontroller.
-
eIQ™ for Arm® CMSIS-NN
Arm CMSIS-NN is a collection of kernels for maximizing the performance and minimize the memory footprint of neural networks on Arm Cortex-M processor cores.
Operating Systems ( 2 )
-
Zephyr OS (REV 0 )
Zephyr OS is a small scalable real-time operating system (RTOS) optimized for resource constrained devices, and built with security in mind. It would take users
-
MFS FAT FILE SYSTEM
MFS is an embedded FAT file system. MFS is fully reentrant and uses the MQX RTOS file device driver to access disk devices including RAM Drives.
Protocol Stacks ( 2 )
-
EUSB DEVICE STACK
EUSB Device is an embedded USB device stack. It provides Class Drivers for HID, Comms Device and Mass Storage. EUSB Device supports on-chip device controllers for a variety of processors and controllers.
-
MQX RTCS TCP/IP Stack
MQX RTCS is a feature rich TCP/IP protocol stack that includes many application layer protocols. It is scalable enabling speed and footprint optimization. It includes Stack Aware Debugging plug in for CodeWarrior, IAR, and Keil Tools
