Multi-Channel (5) PMIC for Automotive Applications: 3 LVBUCK and 2 LDO, Fit for ASIL-B/D Safety Level
PF5113 Receive alerts
- Preproduction
- This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information contact support or your sales representative.
The PF5113 is NXP’s multi-channel PMIC device designed to be used for automotive ADAS radar application and industrial application.
Integrated voltage monitoring circuits ensure compliance with ISO 26262 standard and functional safety ASIL B / ASIL D level. The PF5113 is also available as a standard nonsafety device for applications that don’t require the ISO26262 compliance.
The PF5113 is suitable for NXP radar system solution including S32R41 and TEF82xx.
Product Details
Block Diagram
Features
Key Features
- Three LVBUCK converters up to 3.5 A (SW2) and 2.6 A(SW1 and SW3)
- Two LDO up to 200 mA and 500 mA

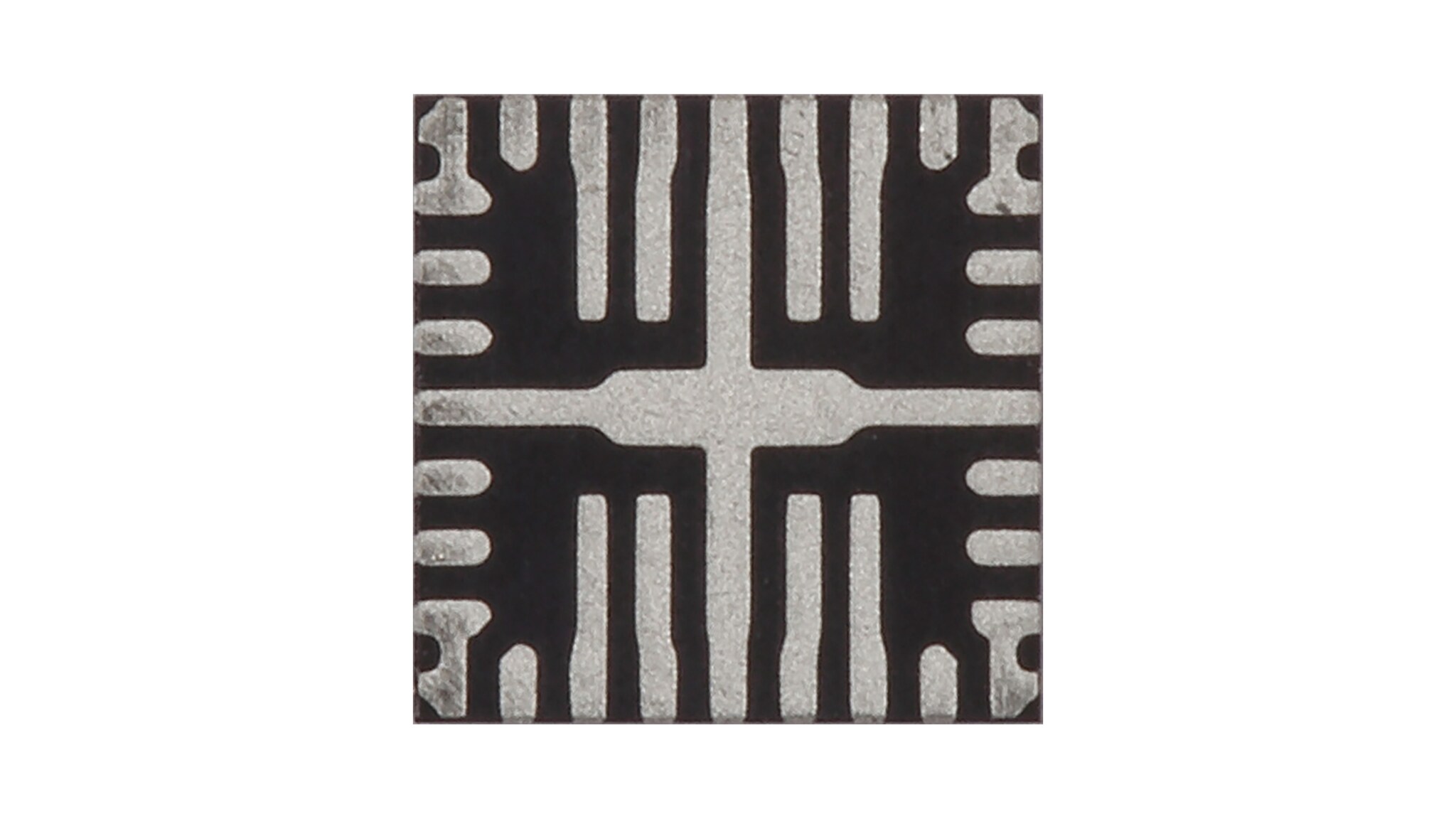

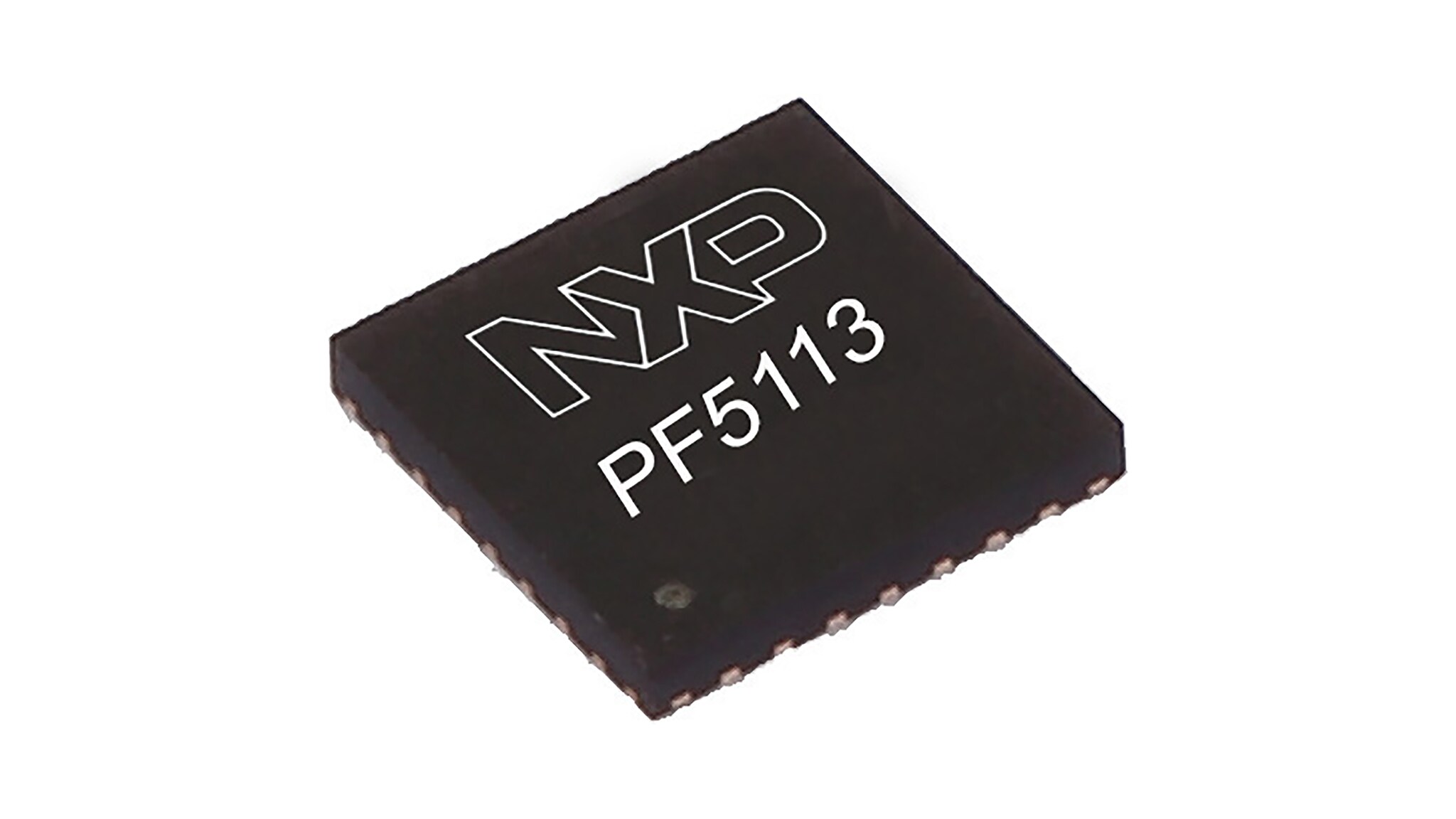

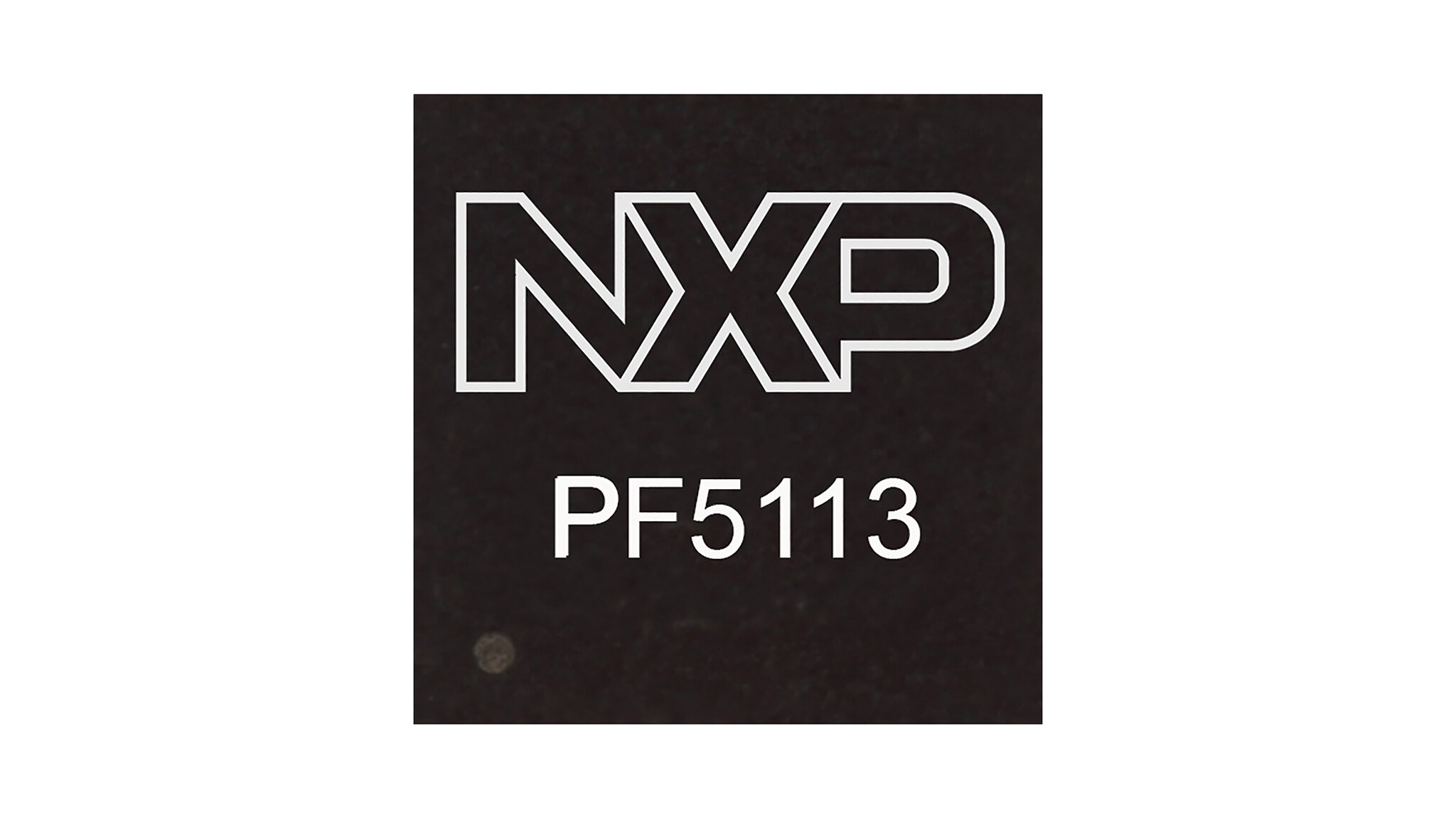

- 28-pin 4.5 x 4.5 FC-QFN package
- S32R MCU supported
System Features
- One-time programmable (OPT) memory for flexible device configuration
- High speed I2C interface (3.4 MHz)
- PGOOD monitoring circuits
- External clock synchronization
- Frequency spread spectrum
- Multi PMIC synchronization bus
- Output Current (A) 0.2, 0.5, 3.5, 2.6
- 3 buck regulators
- 2 LDO
Monitoring Circuits to Fit ASIL D Safety Level
- Independent circuits to fit ASIL D safety level
- Voltage monitoring with programmable fault protection
- Watchdog (Simple window and Q&A window)
- I2C CRC and write protection mechanism
- Analog built-in self-test (ABIST)
- Logic build-in self-test (LBIST)
Programmability
- Supplies, sequencing and specific functions can be programmed by one time programmable (OTP) memory
- During development phase, customized OTP part can be programmed using the evaluation board
- Custom OTP can be provided for production. Please contact your NXP sales channel (NXP or your distributor)
- Custom OTP can be created using the GUI tool
