Evaluation and Development BoardsFS6523, System Basis Chip, DCDC 2.2A Vcore FS1B LDT CAN
FS6523 System Basis Chip with KL25Z

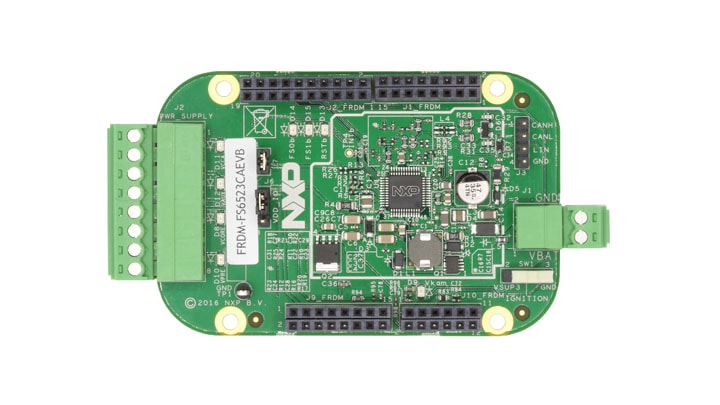

FRDMFS6523CAEVM evaluation module demonstrates the functionality of MC33FS6523 supports CAN FD and FS1B with Vcore SMPS regulator up to 1.5 A. These Safety SBCs target ISO 26262 automotive functional safety standard.
NXP’s analog product development boards provide an easy-to-use platform for evaluating NXP® products. The boards support a range of analog, mixed-signal and power solutions. They incorporate monolithic ICs and system-in-package devices that use proven high-volume SMARTMOS® technology. NXP products offer longer battery life, a smaller form factor, reduced component counts, lower cost and improved performance in powering state of the art systems.
The tool can be use in a standalone mode. Control is done via a delivered KL25Z Freedom board plugged on it and accessible thanks to USB.
SPI command is easily controlled by the FlexGUI downloadable here
Product Details
Supported Devices
Features
Connectivity
- CANFD connector
- FS0b and FS1b output pins
- KL25Z Freedom delivered with the EVM for easy connection with USB control
Power Management
- VCORE bridge resistor configured for 1.3 V
- VCCA configured to 3.3 V (5 V possible) with external PNP
- VAUX configured to 5 V (3.3 V possible)
- Vpre Regulator in Buck or Boost mode
Design Resources
Design Files
Quick reference to our
design files types.
2 design files
-
Printed Circuit Boards and Schematics
Gerber files for the FRDMFS6523CAEVM Evaluation board.
-
Printed Circuit Boards and Schematics
FRDMFS6523CAEVM Schematics
Software
Quick reference to our software types.
1 software file
-
Application Example Software
FlexGUI
