The MPC5777M Power Architecture^® MCU targets high-end industrial and powertrain applications that meet next-generation advanced engine control, functional safety, and security requirements.

Provides task flexibility and parallel processing by leveraging the I/O processor to offload computational cores
Deters software hacking and aftermarket tuning (which affects unauthorized warranty returns) with next-generation security protection
Comprehensive development tools simplify and accelerate system design

Data Sheet

Reference Manual

Product Details

Block Diagram

MPC5777M 32-bit Multicore MCU for Powertrain Block diagram.

Get diagram PDF

Features

Main Features

Two independent e200z7 cores operating up to 300 MHz
Single 300 MHz e200z7 core for delayed lockstep
Single e200z4 I/O core operating up to 200 MHz
On-chip DSP and floating point unit (on I/O core)
Built to support functional safety (ISO 26262 /ASIL-D)
248-channel general timer module (GTM104)
Up to 128-channel eDMA
Up to 84-channel analog-to-digital converters (ADC)
Includes 10 x ΣΔ ADC converters
High-speed Nexus Aurora debug and trace support
416-pin PBGA package
512-pin PBGA package

Memory Capability

8 MB flash memory with error code correction (ECC)
Up to 596 KB of total SRAM with ECC

Communication Protocols

Ethernet controller (FEC)
4 x M-CAN and 1 x TT-CAN
6 x LINFlex
8 x dSPI and 2 x IIC
5 x PSI-5 and 15 x SENT
Zipwire^{^®} support
2 x dual-channel FlexRay^™ controller

Additional Features

Hardware Security Module (HSM)
Tamper Detection Module (TDM)

SafeAssure Program

When it comes to functional safety, NXP stands for quality and reliability. Our SafeAssure program simplifies system-level safety requirements in accordance with ISO 26262.
Read more

Design Resources

Hardware

1-5 of 9 hardware offerings

^{Evaluation and Development Boards}
MPC5777M Engine Management Evaluation SystemFeatured

MPC5777MEVB
^{Evaluation and Development Boards}
Evaluation Board - MC33908, Safe DC/DC up to 1.5 AFeatured

KIT33908AEEVB
^{Evaluation and Development Boards}
Evaluation Board - MC33907, Safe DC/DC up to 800 mAFeatured

KIT33907AEEVB
Additional hardware available. View our featured partner solutions.
^{Emulators, Probes, and Programmers}
Universal Multilink Development Interface

UMultilink
^{Emulators, Probes, and Programmers}
PEmicro Cyclone FX programmer

CYCLONE-FX
^{Emulators, Probes, and Programmers}
Universal Multilink FX High-Speed Development Interface

U-MULTILINK-FX
^{Adapters, Cables, Sockets}

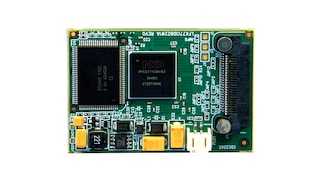

MPC5777x Device and Target Adapters
