Specifications

Choose a diagram

i.MX 8M Nano
i.MX 8M Nano

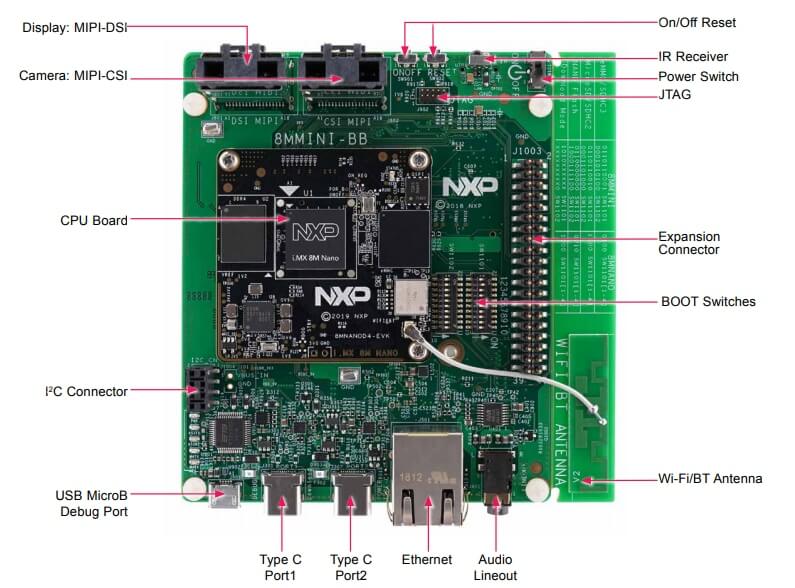

i.MX 8M Nano Top side

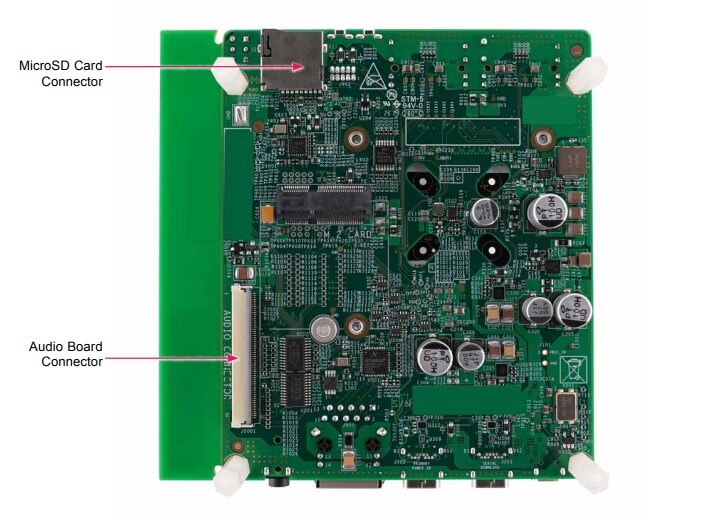

i.MX 8M Nano Back side

Supported Devices

Processors and Microcontrollers

i.MX 8 Processors

i.MX8MNANO : i.MX 8M Nano - Arm^® Cortex^®-A53, Cortex-M7

MoreLess

Technical and Functional Specifications

Processor	i.MX 8M Nano Quad applications processor 4x Cortex-A53 @ 1.5 GHz 1x Cortex-M7 @ 750 MHz
Memory	DDR4 x16 w/2 GB eMMC 5.0/5.1 w/16 GB SD/MMC connector QSPI w/32 MB
Display and Camera Interfaces	MIPI-CSI Camera Mini-SAS connector MIPI-DSI Display Mini-SAS connector
Wireless	MIMO 1x1 Wi-Fi 802.11a/b/g/n/ac and BT4.1 Onboard chip antenna External antenna connector
Audio	Audio DAC 24-bit 192 kHz stereo HP Jack 3.5 mm audio connector Board expansion connector for audio interfaces
Connectivity	10/100/1000 Ethernet USB 3.0 Type C connector
Debug	JTAG connector UART via USB
Tools & OS support	Linux Android FreeRTOS

Buy

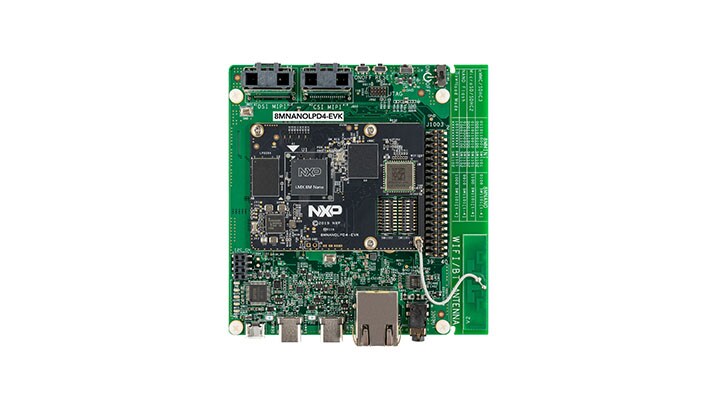

8MNANOD4-EVK ^Active
Evaluation Kit for the i.MX 8M Nano Applications Processor

8MNANOD4-EVK
1 @ US
$399.00

Buy Direct

Availability?

Distributor

Distributor Name	Region	Inventory	Inventory Date

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

MX8-DSI-OLED1 ^Active
MIPI-DSI 1080p OLED Display

MX8-DSI-OLED1
1 @ US
$450.00

Buy Direct

Availability?

Distributor

Distributor Name	Region	Inventory	Inventory Date

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

IMX-MIPI-HDMI ^Active
MIPI to HDMI adaptor card (mini SAS)

IMX-MIPI-HDMI
1 @ US
$149.00

Buy Direct

Availability?

Distributor

Distributor Name	Region	Inventory	Inventory Date

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

MINISASTOCSI ^Active
MIPI-CSI Camera Module

MINISASTOCSI
1 @ US
$59.00

Buy Direct

Availability?

Distributor

Distributor Name	Region	Inventory	Inventory Date

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

8MIC-RPI-MX8 ^Active
8-microphone array proto board for voice enablement

8MIC-RPI-MX8
1 @ US
$199.00

Buy Direct

Availability?

Distributor

Distributor Name	Region	Inventory	Inventory Date

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Design Resources

Get Started

1. Review this Getting Started and Quick Start Guide to get familiar with the hardware specifications

Documents

Users Guide ( 1 )

i.MX 8M Nano EVK Board Getting Started Guide

This page will help guide you through the process of learning about your i.MX 8M Nano EVK Board.
- GS-8MNANOLPD4-EVK
- 19 Nov 2019
- GS-8MNANOLPD4-EVK
- [ English ]

Fact Sheet ( 1 )

i.MX 8M Nano EVK Fact Sheet^{(REV
0
)}

i.MX 8M Nano EVK is a feature-rich development platform enabling evaluation and development of smart connected power-efficient devices using graphics vision voice control intelligent sensing and general-purpose processing.
- PDF
- 166.9 kB
- 02 Dec 2019
- IMX8MNANOEVKFS
- [ English ]

Quick Reference Guide ( 1 )

i.MX 8M Nano EVK Quick Start Guide^{(REV
1
)}

i.MX 8M Nano EVK supports the i.MX 8M Nano applications processor. Blending advanced processing capabilities with sophisticated audio, video and graphics, the device delivers low-power, high-performing solutions for consumer and industrial applications.
- PDF
- 770.1 kB
- 20 Nov 2019
- IMX-8M-Nano-QSG
- [ English ]

Supporting Information ( 8 )

European Declaration of Conformity for 8MNANOD4-EVK^{(REV
1
)}

European Union Declaration of Conformity document for i.MX 8M Nano Evaluation Kit
- PDF
- 146.7 kB
- 20 Nov 2019
- NXP_RED_MD32633-8MNANOD4-EVK
- [ English ]
L5.4.24_2.1.0_LINUX_DOCS^{(REV
L5.4.24_2.1.0
)}

i.MX L5.4.24_2.1.0 for Linux BSP Documentation. Includes Release Notes, User Guide.
- ZIP
- 11.5 MB
- 22 Jul 2020
- L5.4.24_2.1.0_LINUX_DOCS
- [ English ]
Q10.0.0_2.3.0_DOCS^{(REV
Q10.0.0_2.3.0
)}

Android Q10.0.0_2.3.0 Documentation, include Release Notes and User's Guide.
- ZIP
- 9.5 MB
- 16 Jul 2020
- Q10.0.0_2.3.0_DOCS
- [ English ]
P9.0.0_2.3.2_DOCS^{(REV
P9.0.0_2.3.2
)}

Android P9.0.0_2.3.2 Documentation, include Release Notes and User's Guide.
- ZIP
- 6.6 MB
- 06 Mar 2020
- P9.0.0_2.3.2_DOCS
- [ English ]
L5.4.3_1.0.0_LINUX_DOCS^{(REV
LF_L5.4.3_1.0.0
)}

i.MX L5.4.3_1.0.0 for Linux BSP Documentation. Includes Release Notes, User Guide.
- ZIP
- 11.2 MB
- 07 Apr 2020
- L5.4.3_1.0.0_LINUX_DOCS
- [ English ]
L4.14.98_2.3.0_LINUX_DOCS^{(REV
L4.14.98_2.3.0
)}

L4.14.98_2.3.0 for Linux BSP Documentation. Includes Release Notes, User Guide.
- ZIP
- 9.0 MB
- 21 Jan 2020
- L4.14.98_2.3.0_LINUX_DOCS
- [ English ]
P9.0.0_2.3.5_AUTO_DOCS^{(REV
P9.0.0_2.3.5_AUTO-patch
)}

Android P9.0.0_2.3.5_AUTO-path Documentation, include Release Notes and User's Guide.
- ZIP
- 6.5 MB
- 01 Apr 2020
- P9.0.0_2.3.5_AUTO_DOCS
- [ English ]
Q10.0.0_2.0.0_DOCS^{(REV
Q10.0.0_2.0.0
)}

Android Q10.0.0_2.0.0 Documentation, include Release Notes and User's Guide.
- ZIP
- 7.2 MB
- 19 May 2020
- Q10.0.0_2.0.0_DOCS
- [ English ]

Design Resources

Design Tools & Files ( 4 )

Models ( 2 )

i.MX 8M Nano 14x14 IBIS Model^{(REV
1
)}

IBIS Model file for i.MX 8M Nano processor
- ZIP
- 9.4 MB
- 2020-07-07 08:09:00
- IMX8MN-14x14
Download
BSDL file for i.MX 8M Nano^{(REV
0
)}

i.MX 8M Nano BSDL file
- ZIP
- 649.7 kB
- 2019-12-04 08:09:00
- IMX8MNANO-BSDL
Download

Printed Circuit Boards and Schematics ( 2 )

Design Files for the i.MX 8M Nano Evaluation Kit (8MNANOD4-EVK)^{(REV
1
)}

Design Files for the i.MX 8M Nano Evaluation Kit (8MNANOD4-EVK)
- 7Z
- 10.5 MB
- 2019-11-20 08:49:00
- 8MNANOD4-EVK-DF-SCH
Download
Design Files for an i.MX 8M Nano Compute Module with LPDDR4^{(REV
1
)}

Includes schematic, BOM and layout files for a reference compute module design with i.MX 8M Nano, NXP PCA9450 PMIC and LPDDR4 memory.
- 7Z
- 4.6 MB
- 2019-11-20 08:49:00
- X-815LPD4-CPUCY-DF-SCH
Download

Software

Embedded Software ( 9 )

BSP, Drivers and Middleware ( 9 )

Q10.0.0_2.3.0_DEMO_8MN^{(REV
Q10.0.0_2.3.0
)}

Android Prebuilt images with NXP extended features for the i.MX 8M Nano EVK
- GZ
- 661084 KB
- 2020-07-10 17:13:00
- Q10.0.0_2.3.0_DEMO_8MN
Download
Q10.0.0_2.3.0_ANDROID_SOURCE^{(REV
Q10.0.0_2.3.0
)}

NXP i.MX Android proprietary surce code for Android Q10.0.0_2.3.0.
- GZ
- 120918 KB
- 2020-07-10 16:55:00
- Q10.0.0_2.3.0_ANDROID_SOURCE
Download
L5.4.24_2.1.0_MX8MN^{(REV
L5.4.24_2.1.0
)}

i.MX 8M Nano EVK Linux Binary Demo Files
- ZIP
- 3720391 KB
- 2020-06-24 07:48:00
- L5.4.24_2.1.0_MX8MN
Download
L5.4.3_1.0.0_MX8MN^{(REV
LF_L5.4.3_1.0.0
)}

i.MX 8M Nano EVK Linux Binary Demo Files
- ZIP
- 5126311 KB
- 2020-06-16 10:11:00
- L5.4.3_1.0.0_MX8MN
Download
Q10.0.0_2.0.0_DEMO_8MN^{(REV
Q10.0.0_2.0.0
)}

Prebuilt images with NXP extended features for the i.MX 8M Nano EVK
- GZ
- 658722 KB
- 2020-06-09 07:50:00
- Q10.0.0_2.0.0_DEMO_8MN
Download
Q10.0.0_2.0.0_ANDROID_SOURCE^{(REV
Q10.0.0_2.0.0
)}

NXP i.MX Android proprietary surce code for Android Q10.0.0_2.0.0.
- GZ
- 105237 KB
- 2020-05-15 07:50:00
- Q10.0.0_2.0.0_ANDROID_SOURCE
Download
P9.0.0_2.3.4_DEMO_8MN^{(REV
P9.0.0_2.3.4-patch
)}

Prebuilt images with NXP extended features for the i.MX 8M Nano EVK.
- GZ
- 561783 KB
- 2020-03-06 07:33:00
- P9.0.0_2.3.4_DEMO_8MN
Download
P9.0.0_2.3.4_ANDROID_SOURCE^{(REV
P9.0.0_2.3.4-patch
)}

NXP i.MX Android proprietary surce code for Android P9.0.0_2.3.4-patch.
- GZ
- 73384 KB
- 2020-03-04 08:40:00
- P9.0.0_2.3.4_ANDROID_SOURCE
Download
P9.0.0_2.3.2_ANDROID_SOURCE^{(REV
P9.0.0_2.3.2
)}

NXP i.MX Android proprietary surce code for Android P9.0.0_2.3.2.
- GZ
- 73225 KB
- 2020-02-26 14:36:00
- P9.0.0_2.3.2_ANDROID_SOURCE
Download

Development Software ( 1 )

IDE and Build Tools ( 1 )

SDK_MX8MN_3RDPARTY_Patch^{(REV
SDK_MX8MN_IAR
)}

NXP provided IAR tool patch to support MCUXpresso SDK on i.MX8M Nano devices.
- ZIP
- 2346 KB
- 2020-05-20 12:17:00
- SDK_MX8MN_3RDPARTY_Patch
Download

Embedded Application Software ( 7 )

Embedded Application Software - miscellaneous ( 7 )

Q10.0.0_2.3.0_AACPlus-4.5.5^{(REV
Q10.0.0_2.3.0_aacp_4.5.5
)}

Android Q10.0.0_2.3.0 of AAC Plus Codec 4.5.5
- GZ
- 200 KB
- 2020-07-14 08:03:00
- Q10.0.0_2.3.0_AACPlus-4.5.5
Download
L5.4.24_2.1.0_AACP-4.5.5^{(REV
L5.4.24_2.1.0-aacp_4.5.5
)}

i.MX Linux AAC Plus Codec v4.5.5
- GZ
- 513964 KB
- 2020-06-24 07:48:00
- L5.4.24_2.1.0_AACP-4.5.5
Download
Q10.0.0_2.0.0_AACPlus-4.5.3 ^{(REV
Q10.0.0_2.0.0_aacp_4.5.3
)}

Android Q10.0.0_2.0.0 of AAC Plus Codec 4.5.3
- GZ
- 200 KB
- 2020-05-15 07:50:00
- Q10.0.0_2.0.0_AACPlus-4.5.3
Download
SDK_2.7_MX8_GA_Patch^{(REV
SDK2.7_MX8_GA
)}

NXP provided IAR and Segger tool patch to support i.MX8 devices.
- ZIP
- 18777 KB
- 2020-05-11 07:56:00
- SDK_2.7_MX8_GA_Patch
Download
L5.4.3_1.0.0_AACP-4.5.3^{(REV
LF_L5.4.3_1.0.0-aacp_4.5.3
)}

i.MX Linux AAC Plus Codec v4.5.3
- GZ
- 669 KB
- 2020-03-27 10:52:00
- L5.4.3_1.0.0_AACP-4.5.3
Download
P9.0.0_2.3.2_AACPlus-4.5.2^{(REV
P9.0.0_2.3.2_aacp_4.5.0
)}

P9.0.0_2.3.2, P9.0.0_2.3.3 of AAC Plus Codec 4.5.2
- GZ
- 200 KB
- 2020-02-26 14:36:00
- P9.0.0_2.3.2_AACPlus-4.5.2
Download
L4.14.98_2.3.0_AACP-4.5.2^{(REV
L4.14.98_2.3.0_aacp_4.5.2
)}

Linux AAC Plus Codec v4.5.2
- GZ
- 668 KB
- 2020-01-21 07:52:00
- L4.14.98_2.3.0_AACP-4.5.2
Download

Evaluation Kit for the i.MX 8M Nano Applications Processor

Overview

Target Applications

Buy

Get Started

Specifications

Choose a diagram

i.MX 8M Nano Top side

i.MX 8M Nano Back side

Supported Devices

Processors and Microcontrollers

Technical and Functional Specifications

Buy

8MNANOD4-EVK Active

MX8-DSI-OLED1 Active

IMX-MIPI-HDMI Active

MINISASTOCSI Active

8MIC-RPI-MX8 Active

Related Products

Design Resources

Get Started

Getting Started and Quick Start Guide

Documents ( 11 )

Design Resources ( 4 )

Software ( 17 )

Documents

Users Guide ( 1 )

Fact Sheet ( 1 )

i.MX 8M Nano EVK Fact Sheet (REV 0 )

Quick Reference Guide ( 1 )

i.MX 8M Nano EVK Quick Start Guide (REV 1 )

Supporting Information ( 8 )

European Declaration of Conformity for 8MNANOD4-EVK (REV 1 )

L5.4.24_2.1.0_LINUX_DOCS (REV L5.4.24_2.1.0 )

Q10.0.0_2.3.0_DOCS (REV Q10.0.0_2.3.0 )

P9.0.0_2.3.2_DOCS (REV P9.0.0_2.3.2 )

L5.4.3_1.0.0_LINUX_DOCS (REV LF_L5.4.3_1.0.0 )

L4.14.98_2.3.0_LINUX_DOCS (REV L4.14.98_2.3.0 )

P9.0.0_2.3.5_AUTO_DOCS (REV P9.0.0_2.3.5_AUTO-patch )

Q10.0.0_2.0.0_DOCS (REV Q10.0.0_2.0.0 )

Design Resources

Design Tools & Files ( 4 )

Models ( 2 )

i.MX 8M Nano 14x14 IBIS Model (REV 1 )

BSDL file for i.MX 8M Nano (REV 0 )

Printed Circuit Boards and Schematics ( 2 )

Design Files for the i.MX 8M Nano Evaluation Kit (8MNANOD4-EVK) (REV 1 )

Design Files for an i.MX 8M Nano Compute Module with LPDDR4 (REV 1 )

Software

Embedded Software ( 9 )

BSP, Drivers and Middleware ( 9 )

Q10.0.0_2.3.0_DEMO_8MN (REV Q10.0.0_2.3.0 )

Q10.0.0_2.3.0_ANDROID_SOURCE (REV Q10.0.0_2.3.0 )

L5.4.24_2.1.0_MX8MN (REV L5.4.24_2.1.0 )

L5.4.3_1.0.0_MX8MN (REV LF_L5.4.3_1.0.0 )

Q10.0.0_2.0.0_DEMO_8MN (REV Q10.0.0_2.0.0 )

Q10.0.0_2.0.0_ANDROID_SOURCE (REV Q10.0.0_2.0.0 )

P9.0.0_2.3.4_DEMO_8MN (REV P9.0.0_2.3.4-patch )

P9.0.0_2.3.4_ANDROID_SOURCE (REV P9.0.0_2.3.4-patch )

P9.0.0_2.3.2_ANDROID_SOURCE (REV P9.0.0_2.3.2 )

Development Software ( 1 )

IDE and Build Tools ( 1 )

SDK_MX8MN_3RDPARTY_Patch (REV SDK_MX8MN_IAR )

Embedded Application Software ( 7 )

Embedded Application Software - miscellaneous ( 7 )

Q10.0.0_2.3.0_AACPlus-4.5.5 (REV Q10.0.0_2.3.0_aacp_4.5.5 )

L5.4.24_2.1.0_AACP-4.5.5 (REV L5.4.24_2.1.0-aacp_4.5.5 )

Q10.0.0_2.0.0_AACPlus-4.5.3 (REV Q10.0.0_2.0.0_aacp_4.5.3 )

SDK_2.7_MX8_GA_Patch (REV SDK2.7_MX8_GA )

L5.4.3_1.0.0_AACP-4.5.3 (REV LF_L5.4.3_1.0.0-aacp_4.5.3 )

P9.0.0_2.3.2_AACPlus-4.5.2 (REV P9.0.0_2.3.2_aacp_4.5.0 )

L4.14.98_2.3.0_AACP-4.5.2 (REV L4.14.98_2.3.0_aacp_4.5.2 )

Get Help

Recommended Communities

8MNANOD4-EVK ^Active

MX8-DSI-OLED1 ^Active

IMX-MIPI-HDMI ^Active

MINISASTOCSI ^Active

8MIC-RPI-MX8 ^Active

i.MX 8M Nano EVK Fact Sheet^{(REV
0
)}

i.MX 8M Nano EVK Quick Start Guide^{(REV
1
)}

European Declaration of Conformity for 8MNANOD4-EVK^{(REV
1
)}

L5.4.24_2.1.0_LINUX_DOCS^{(REV
L5.4.24_2.1.0
)}

Q10.0.0_2.3.0_DOCS^{(REV
Q10.0.0_2.3.0
)}

P9.0.0_2.3.2_DOCS^{(REV
P9.0.0_2.3.2
)}

L5.4.3_1.0.0_LINUX_DOCS^{(REV
LF_L5.4.3_1.0.0
)}

L4.14.98_2.3.0_LINUX_DOCS^{(REV
L4.14.98_2.3.0
)}

P9.0.0_2.3.5_AUTO_DOCS^{(REV
P9.0.0_2.3.5_AUTO-patch
)}

Q10.0.0_2.0.0_DOCS^{(REV
Q10.0.0_2.0.0
)}

i.MX 8M Nano 14x14 IBIS Model^{(REV
1
)}

BSDL file for i.MX 8M Nano^{(REV
0
)}

Design Files for the i.MX 8M Nano Evaluation Kit (8MNANOD4-EVK)^{(REV
1
)}

Design Files for an i.MX 8M Nano Compute Module with LPDDR4^{(REV
1
)}

Q10.0.0_2.3.0_DEMO_8MN^{(REV
Q10.0.0_2.3.0
)}

Q10.0.0_2.3.0_ANDROID_SOURCE^{(REV
Q10.0.0_2.3.0
)}

L5.4.24_2.1.0_MX8MN^{(REV
L5.4.24_2.1.0
)}

L5.4.3_1.0.0_MX8MN^{(REV
LF_L5.4.3_1.0.0
)}

Q10.0.0_2.0.0_DEMO_8MN^{(REV
Q10.0.0_2.0.0
)}

Q10.0.0_2.0.0_ANDROID_SOURCE^{(REV
Q10.0.0_2.0.0
)}

P9.0.0_2.3.4_DEMO_8MN^{(REV
P9.0.0_2.3.4-patch
)}

P9.0.0_2.3.4_ANDROID_SOURCE^{(REV
P9.0.0_2.3.4-patch
)}

P9.0.0_2.3.2_ANDROID_SOURCE^{(REV
P9.0.0_2.3.2
)}

SDK_MX8MN_3RDPARTY_Patch^{(REV
SDK_MX8MN_IAR
)}

Q10.0.0_2.3.0_AACPlus-4.5.5^{(REV
Q10.0.0_2.3.0_aacp_4.5.5
)}

L5.4.24_2.1.0_AACP-4.5.5^{(REV
L5.4.24_2.1.0-aacp_4.5.5
)}

Q10.0.0_2.0.0_AACPlus-4.5.3 ^{(REV
Q10.0.0_2.0.0_aacp_4.5.3
)}

SDK_2.7_MX8_GA_Patch^{(REV
SDK2.7_MX8_GA
)}

L5.4.3_1.0.0_AACP-4.5.3^{(REV
LF_L5.4.3_1.0.0-aacp_4.5.3
)}

P9.0.0_2.3.2_AACPlus-4.5.2^{(REV
P9.0.0_2.3.2_aacp_4.5.0
)}

L4.14.98_2.3.0_AACP-4.5.2^{(REV
L4.14.98_2.3.0_aacp_4.5.2
)}
