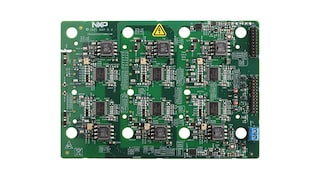

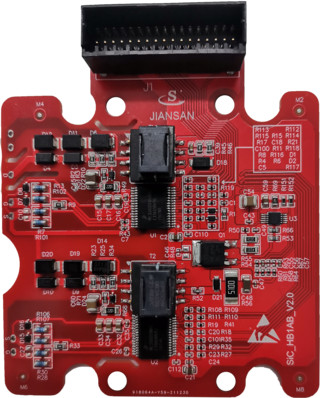

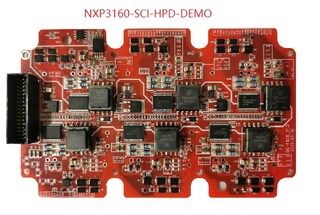

Advanced High Voltage Isolated Gate Driver with Segmented Drive for SiC MOSFETs

Roll over image to zoom in

Block Diagram

Advanced High Voltage Isolated GD with Segmented Drive for SiC MOSFETs

GD3160 Block Diagram


Key Features

  • HV isolated IGBT and SiC single gate driver IC device functions
  • Load current(IL) 15 A (Typ)
  • Single channel
  • Drain-to-source on resistance 500 mOhm RDS(ON) (Typ)
  • Load supply voltage min. -12 V, max. 25 V
  • Supply voltage min. 4.5 V, max. 40 V
  • Ambient operating temperature -40 to 125 °C
  • PWM and SPI interface and input controllers


  • ±15 A split output gate current drive
  • Programmable HV VCC regulator output: 14 V to 21 V, 1 V step
  • Max VCC output voltage: 23 V


  • Integrated HV temperature sensing (TSENSE) for NTC thermistor or diode sensors with programmable offset and gain
  • Faster VCE DeSat detection and reaction time: < 1.2 µs (SiC)
  • Improved PWM deadtime range for reduced switching losses (SiC)
  • Programmable two-level turn off (2LTO) and soft-shutdown (SSD)

Functional Safety

  • Additional programmable fault pin (INTA)
  • Integrated HV fault management (FSISO)
  • Programmable VCE output monitoring

Insulation / Isolation

  • Minimum common mode transient immunity (CMTI) > 100 V/ns
  • 5,000 Vrms galvanic isolation per UL1577 (planned)

Product Longevity Program

  • This product is included in the NXP Product Longevity Program ensuring a stable supply of products for your embedded designs. The GD3160 is included in the 15-year program.

Part numbers include: MGD3160AM315EK, MGD3160AM335EK, MGD3160AM515EK, MGD3160AM535EK.
