PT2001 Evaluation Board


Roll over image to zoom in

Product Details

Select a section:

Supported Devices

Power Management

Powertrain and Engine Control


Power Management

  • Power-conditioning circuitry
  • +12 V to +36 V VSUPP power to the PT2001

General Specifications

  • PT2001 direct injection pre-driver integrated circuit
  • External MOSFETs

Buy Options


  • Freedom Expansion Board- PT2001, Solenoid Controller.

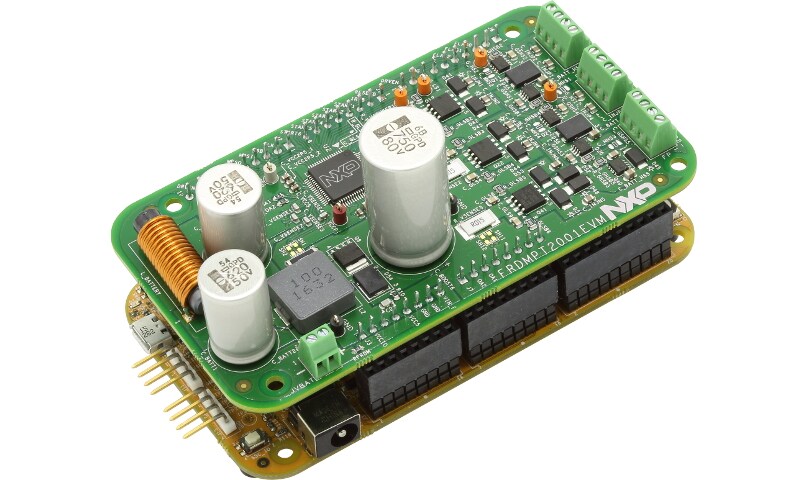

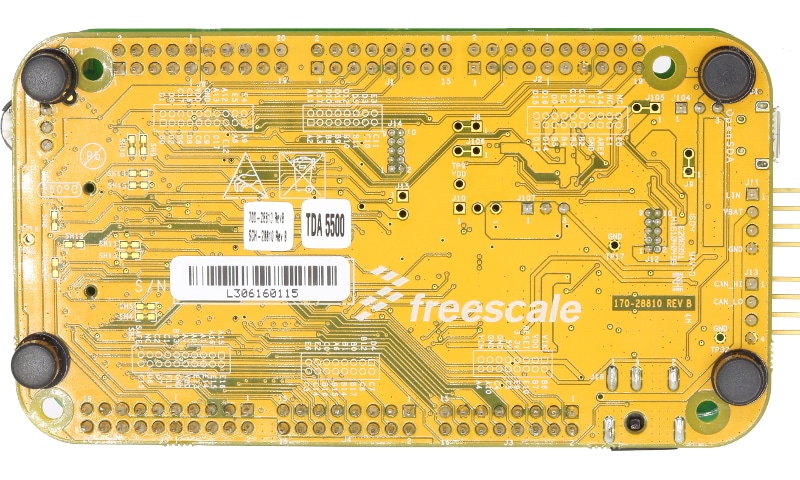

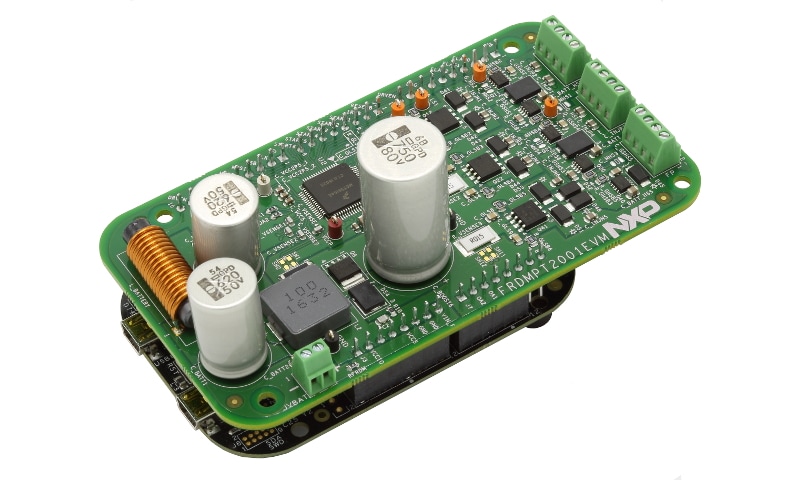

  • Assembled and tested FRDMPT2001EVM board mounted to an FRDM-KL25Z board in an anti-static bag
  • Quick start guide
  • Warranty card
    • $234.60 USD
    • For a quantity of 1
      • Availability: In stock
      • Inventory: 5
      • Shipping: Normally ships 1-2 business days
    Buy from NXPBuy From Distributor
