Dual-Channel PMIC for Automotive Applications – 2 High Efficient LVBUCK, Fit for ASIL B Safety Level
PF5200 Receive alerts
The PF5200 is a multi-channel PMIC device designed to be used for high performance automotive applications. The PF5200 is also highly configurable making it a perfect companion and fit for various system level power requirements.
Integrated voltage monitoring circuits ensure compliance with ISO 26262 standard and functional safety up to ASIL B level. The PF5200 is also available as a standard non-safety device for applications that don't require the ISO 26262 compliance.
The PF5200 is suitable for high current core supply of applications including infotainment, ADAS, vision and radar as a companion to another NXP PMIC like the PF502x family or an SBC like the FS85 family.
This device is suitable for S32 processors based applications and DDR memory supply.
Product Details
Block Diagram
Features
Key Features
- Two high-efficiency BUCK converters
- 32-pin 5x5 FC-QFN package
System Features
- OTP (One-time programmable) memory for flexible device configuration
- High speed I2C interface (3.4 MHz)
- PGOOD monitoring circuits
- External clock synchronization
- Frequency spread spectrum
Monitoring Circuits to Fit ASIL B Safety Level
- Independent circuits to fit ASIL B safety level
- Voltage monitoring with programmable fault protection
- Advanced thermal monitoring and protection
- Programmable internal watchdog timer
- I2C CRC and write protection mechanism
- Analog built-in self-test (ABIST)
Programmability
- Supplies, sequencing and specific functions can be programmed by one time programmable (OTP) memory
- During development phase, customized OTP part can be programmed using the evaluation board
- Custom OTP can be provided for production. Please contact your NXP sales channel (NXP or your distributor)
- Custom OTP can be created using the GUI tool
Product Longevity Program
- This product is included in the NXP product longevity program ensuring a stable supply of products for your embedded designs. Automotive target market derivatives (MPF5200AMB/M) are included in the 15-year program.
Key Parametrics
-
- MCU Supported
- DDR4, EthernetPHY, S32R45
-
- Output Current (A)
- 8
-
- Number of Buck Regulators
- 2
-
- Number of LDO
- 0
-
- Interface and Input Control
- I2C
BYLink System Power Platform
BYLink System Power Platform
This platform facilitates the design of safe power management systems thanks to a portfolio of configurable and linkable devices. It simplifies complex power supply
subsystems into a single smart solution.
Learn more about this platform
PMICs and SBCs for Multi-Vendor Processors
PMICs and SBCs for Multi-Vendor Processors
Whether you are developing automotive, industrial or consumer applications, our configurable and flexible solutions support multi-vendor processors.
Explore more
Design Resources
Hardware
2 hardware offerings
-

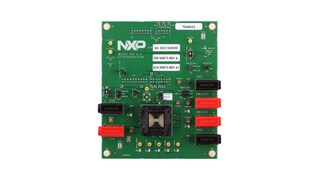

Evaluation and Development BoardsPF5200 Socketed Evaluation Board
-
