NXP® Analog Accelerometers

FXLN83xxQ

Click over video to play

The NXP® FXLN83xxQ analog accelerometers are designed to support analog capability for industrial, medical tamper detection applications.

  • Provide interface compatibility and simplicity for low-voltage MCUs
  • Excellent analog performance
  • The FXLN83xxQ accelerometers are part of the NXP Longevity Program

Product Details

Select a section:

Block Diagram

30282_FXLN83XXQ_BD

NXP<sup>&#174;</sup> Low g Xtrinsic Accelerometer
Get diagram PDF

Features

  • 1.71 V to 3.6 V supply voltage
  • ±2, ±4, ±8, ±16 g dynamically selectable
  • 28.62, 57.25, 114.5, 229.0 mV/g sensitivity
  • Non-ratiometric analog parallel outputs
  • Visible solder inspection leads
  • QFN 3 x 3 x 1.05 mm 0.65 mm pitch package

Documentation

Quick reference to our documentation types.

Filters

1-5 of 6 documents

Show All

Design Resources

Select a section:

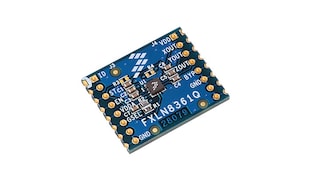

Hardware
