Single-chip 16-bit/32-bit microcontrollers; up to 512 kB flash with ISP/IAP, USB 2.0 full-speed device, 10-bit ADC and DAC

LPC2141FBD64
  • Not Recommended for New Designs
  • This page contains information on a product that is not recommended for new designs.

The LPC2141/42/44/46/48 microcontrollers are based on a 16-bit/32-bit Arm7TDMI-S™ CPU with real-time emulation and embedded trace support, that combine the microcontroller with embedded high-speed flash memory ranging from 32 kB to 512 kB. A 128-bit wide memory interface and a unique accelerator architecture enable 32-bit code execution at the maximum clock rate. For critical code size applications, the alternative 16-bit Thumb mode reduces code by more than 30 % with minimal performance penalty.

Due to their tiny size and low power consumption, LPC2141/42/44/46/48 are ideal for applications where miniaturization is a key requirement, such as access control and point-of-sale. Serial communications interfaces ranging from a USB 2.0 Full-speed device, multiple UARTs, SPI, SSP to I²C-bus and on-chip SRAM of 8 kB up to 40 kB, make these devices very well suited for communication gateways and protocol converters, soft modems, voice recognition and low end imaging, providing both large buffer size and high processing power. Various 32-bit timers, single or dual 10-bit ADC(s), 10-bit DAC, PWM channels and 45 fast GPIO lines with up to nine edge or level sensitive external interrupt pins make these microcontrollers suitable for industrial control and medical systems.

See product image

Product Details

Select a section:

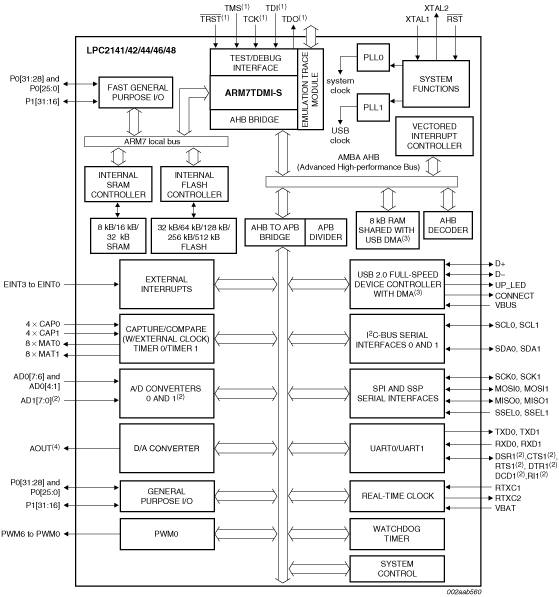

Block Diagram

Block diagram: LPC2141FBD64, LPC2142FBD64, LPC2144FBD64, LPC2146FBD64, LPC2148FBD64

Get diagram PDF

Features

2.1 Key features

Documentation

Quick reference to our documentation types.

Filters

1-5 of 28 documents

Show All

Design Resources

Select a section:

Design Files

Filters

1 design file

  • Symbols and Footprints

    LPC2xxx ORCAD symbols

    ZIPRev 0Jun 3, 2016 00:00:0013.1 KBLPC2000-ORCAD-SYM
    Sign in required
    Download

Software

Filters

1-5 of 6 software files

  • Code Snippets

    Sample Code Bundle for LPC213X and LPC214X Peripherial Using ARM'S_REALVIEW

    ZIPRev 1Jun 14, 2017 17:34:0068.9 KBSC_LPC213X_LPC214X_ARMS_REALV
    Download
  • Code Snippets

    AN10711 - USB secondary ISP bootloader

    ZIPRev 1.0Jun 28, 2017 12:34:00820.3 KBAN10711
    Sign in required
    Download
  • Code Snippets

    AN10736 - LPC214x USB simplified - API approach to HID class

    ZIPRev 1.0Aug 28, 2008 00:00:001.4 MBAN10736
    Sign in required
    Download
  • Code Snippets

    AN10420 - USB virtual COM port on LPC214x

    ZIPRev 1.0Jun 28, 2017 12:33:00875.5 KBAN10420
    Sign in required
    Download
  • Code Snippets

    AN10717 - DMX512 communication using the LPC2000

    ZIPRev 1.0May 23, 2012 00:00:00802.0 KBAN10717
    Sign in required
    Download
Show All
