MPC574xP|32-bit MCU|Chassis-Safety

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

The MPC574xP MCU family features a 32-bit embedded Power Architecture^®. It meets the highest functional safety standards for automotive and industrial functional safety applications.

Integrated safety architecture minimizes additional software and development churn
Programmable Fault Collection and Control Unit (FCCU) monitors the integrity status of the device and provides flexible safe state control
End-to-End Error Correcting Code (e2eECC) improves fault tolerance and detection
Part of the SafeAssure^® program, helping manufacturers achieve functional safety standard compliance

Full-featured devices to get started with SW development:

SPC5744PFK1AMLQ9 (144LQFP package)
SPC5744PGK1AMMM9 (257MAPBGA package)

Data Sheet

Reference Manual

Product Details

Block Diagram

NXP MPC574xP Block Diagram

Get diagram PDF

Features

Main Features

2 x e200z4 in delayed lockstep operating up to 200 MHz
Embedded floating point unit
Built to support functional safety (ISO 26262 / ASIL D)
32-channel eDMA in delayed lockstep
4 x 12-bit analog-to-digital converters (ADC), each with 16 channels

Memory Capability

Up to 2.5 MB flash memory w/ error code correction (ECC)
Up to 384 KB of total SRAM w/ECC

Communication Protocols

3 x FlexCAN
2 x LINFlexD
4 x DSPI
4 x SENT
LFAST SIPI support
Dual-channel FlexRay^™ controller
Ethernet

Additional Features

Aurora debug and trace support
144-pin LQFP package
257-pin PBGA package

SafeAssure Program

When it comes to functional safety, NXP stands for quality and reliability. Our SafeAssure program simplifies system-level safety requirements in accordance with ISO 26262.
Read more

Design Resources

Design Files

1 design file

^Calculators
MPC5700 C55FG EEPROM Emulation Endurance Calculator

ZIPRev Beta054Nov 30, 2012 00:00:008.4 MBC55_EEECALC

Download

Hardware

1-5 of 11 hardware offerings

^{Evaluation and Development Boards}
MPC5744P 3-phase PMSM Development KitFeatured

MTRCKTSPS5744P
^{Evaluation and Development Boards}
Motor Control Shield for DEVKITFeatured

DEVKIT-MOTORGD
^{Emulators, Probes, and Programmers}
Universal Multilink FX High-Speed Development Interface

U-MULTILINK-FX
Additional hardware available. View our featured partner solutions.
^{Adapters, Cables, Sockets}
Zipwire Cable Assembly

SIPI-ERM8-ZIPCBL
^{Evaluation and Development Boards}
MPC5744P Functional Safety Motor Control Development Board

DEVKIT-MPC5744P
^{Evaluation and Development Boards}

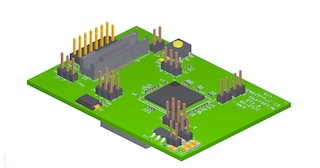

MPC574xP Adapters
