The QorIQ T1042 quad-core and T1022 dual-core communication processors support two or four integrated 64-bit e5500 Power Architecture^® processor cores with high-performance data path acceleration architecture (DPAA) and network peripheral interfaces required for networking and telecommunications.

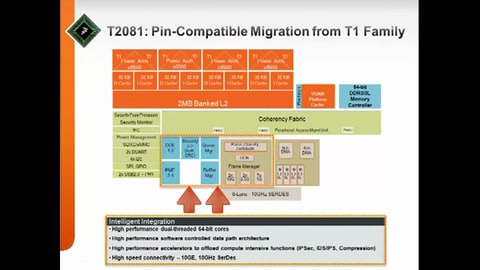

The T1 family of devices is a scalable, pin-compatible family of communications processors – and offers pin-compatible migration up to the higher-performance QorIQ T2081 device.

Data Sheet

Reference Manual

Product Details

Block Diagram

QorIQ T1040/20 and T1042/22 Communication Processors

Get diagram PDF

Features

Core Complex

Two or four e5500 cores, built on Power Architecture technology
Up to 1.4 GHz with 64-bit ISA support
Three levels of instructions: user, supervisor, hypervisor
Hybrid 32-bit mode to support legacy software and transition to a 64-bit architecture
256 KB backside L2 cache

Networking Elements

SerDes
- Eight lanes at up to 5 Gbps
- Supports SGMII, QSGMII, PCIe and SATA
Ethernet Interfaces
- Up to five Gigabit Ethernet interfaces

Accelerators and Memory Control

32/64-bit DDR3L/4 SDRAM memory controller with ECC support
- Up to 1600 MT/s
DPAA Incorporating acceleration for the following functions Packet parsing, classification, and distribution
- Queue management for scheduling, packet sequencing and congestion management
- Hardware buffer management for buffer allocation and de-allocation
- Integrated security acceleration (SEC)
- Signature detection (PME)

Basic Peripherals and Interconnect

CoreNet^{^®} platform cache
- 256 KB shared platform cache
Hierarchical interconnect fabric
- CoreNet fabric supporting coherent and non-coherent transactions with prioritization and bandwidth allocation amongst CoreNet endpoints
Additional peripheral interfaces two Serial ATA (SATA 2.0) controllers
- Two high-speed USB 2.0 controllers with integrated PHYs
- Enhanced secure digital host controller (SD/MMC/eMMC)
- Enhanced serial peripheral interface (eSPI)
- Two I^{2^{C controllers}}
- Four UARTS
- Integrated flash controller supporting NAND and NOR flash
DMA
- Dual four channel
- Up to 5x 1 Gbps Ethernet MACs as part of DPAA
QUICC Engine^®
- Support for legacy protocols TDM, HDLC, UART and ISDN
High-speed peripheral interfaces
- Four PCI Express^® 2.0 controllers

Additional Features

Support for hardware virtualization and partitioning enforcement
- Extra privileged level for hypervisor support
QorIQ^{^®} trust architecture
- Secure boot, secure debug, tamper detection, volatile key storage
This product is included in Our product longevity program, with assured supply for a minimum of 10 years after launch

Comparison Table

	T1020	T1022	T1040	T1042	T2081
CPU	2 e5500	2 e5500	4 e5500	4 e5500	4 e6500 (dual-threaded)
Core Frequency	1200-1400MHz	1200-1400MHz	1200-1400MHz	1200-1400MHz	1500-1800MHz
DDR I/F	1x DDR3L/4 to 1600MT/s	1x DDR3L/4 to 1600MT/s	1x DDR3L/4 to 1600MT/s	1x DDR3L/4 to 1600MT/s	1x DDR3/3L to 2133MT/s
Ethernet (with IEEE1588v2)	8-Port GE Switch + 4x 1GE	5x 1GE	8-Port GE Switch + 4x 1GE	5x 1GE	2x 1/10GE + 6x 1GE
SERDES	8 lanes (5GHz)	8 lanes (5GHz)	8 lanes (5GHz)	8 lanes (5GHz)	8 lanes (10GHz)
Package	Pin Compatible

Documentation

Quick reference to our documentation types.

1-5 of 23 documents

^{Fact Sheet}
QorIQ T Series T1020/22 and T1040/42 Processors - Fact SheetFeatured

PDFRev 2Feb 14, 2017289.7 KBT1FAMILYFSEnglish, 中文
^{Data Sheet}
QorIQ^® T1042, T1022 Data Sheet

PDFRev 2Jun 29, 20151.5 MBT1042English
Sign in required
^{Reference Manual}
QorIQ T1040 Reference Manual

PDFRev 2Jun 5, 202021.2 MBT1040RMEnglish
Sign in required
^{Reference Manual}
QUICC Engine Block Reference Manual with Protocol Interworking - Reference Manual

PDFRev 9May 3, 201813.4 MBQEIWRMEnglish
Sign in required
^{Reference Manual}
e5500RM, e5500 Core Reference Manual with Updates - Reference Manual

PDFRev 4Jul 28, 20153.7 MBE5500RMEnglish
Sign in required
^{Reference Manual}
T1040DPAArm, T1040 QorIQ Data Path Acceleration Architecture (DPAA) Reference Manual - Reference Manual

PDFRev 0Feb 3, 201518.4 MBT1040DPAARMEnglish
Sign in required
^{Reference Manual}
T1040SECRM, T1040 Security (SEC) Reference Manual - Reference Manual

PDFRev 0Jan 22, 201512.8 MBT1040SECRMEnglish
Sign in required
^{Application Note}
AN5097, Hardware and Layout Design Considerations for DDR4 SDRAM Memory Interfaces - Application Note

PDFRev 2Jul 10, 20191.5 MBAN5097English
Sign in required
^{Application Note}
U-Boot Bring Up using CodeWarrior on T1040D4RDB Application Note

PDFRev 0Apr 9, 201810.9 MBAN12105English
Sign in required
^{Application Note}
AN4829, Common Board Design Between T1024 and T1022 Processor - Application Note

PDFRev 0Jul 24, 2017401.1 KBAN4829English
^{Application Note}
AN5079, QorIQ P1 Series to T1 Series Migration Guide - Application Note

PDFRev 0Jul 24, 2017349.9 KBAN5079English
^{Application Note}
SerDes Configuration and Validation Tool Companion Application Note

PDFRev 2Jan 29, 2016426.5 KBAN5119English
^{Application Note}
AN4825, T1040 Family Design Checklist - Application Note

PDFRev 1Apr 9, 2015862.5 KBAN4825English
Sign in required
^{Application Note}
AN4848, Simple Program to Confirm PCIe Connectivity - Application Notes

PDFRev 0Jan 21, 20141.2 MBAN4848English
Sign in required
^{Application Note}
AN3940, Hardware and Layout Design Considerations for DDR3 SDRAM Memory Interfaces - App Note

PDFRev 6Nov 25, 2013547.7 KBAN3940English
Sign in required
^{Application Note}
SerDes Reference Clock Interfacing and HSSI Measurements Recommendations

PDFRev Rev. 0May 13, 2011577.2 KBAN4311English
Sign in required
^{Application Note}
DDR Interleaving for PowerQUICC and QorIQ Processors

PDFRev 1Jun 30, 2010717.3 KBAN3939English
Sign in required
^{Application Note}
PowerQUICC™ HDLC Support and Example Code

PDFRev 0Nov 10, 2009496.6 KBAN3966English
^{User Guide}
Spectre and Meltdown Updates for Power ISA Cores

HTMLNov 14, 2019SPECTRE-MELTDOWN-POWER-ISA-DOCEnglish
^{Product Brief}
T1040/20 and T1042/22 Product Brief

PDFRev 0Apr 2, 2014222.3 KBT1040PBEnglish
Sign in required
^{Supporting Information}
FSLNISTCAVP, NIST Crypto Algorithm Validation Program Certifications for NXP^® Cryptographic Accelerators - White Paper

PDFRev 1.9Oct 28, 2016303.5 KBFSLNISTCAVPEnglish
^{White Paper}
Speculative Execution Vulnerabilities and Mitigations on NXP PowerPC Processors White Paper

PDFRev 0Jan 30, 2020317.1 KBSPECTREPPCWPEnglish
^{White Paper}
QORIQPMWP, QorIQ Power Management - White Paper

PDFRev 0Mar 30, 20171.4 MBQORIQPMWPEnglish

Show All

Design Resources

Design Files

1 design file

^Models
BDSL file for T1020/22

BSDLRev R1AFeb 20, 2019 14:25:00112.8 KBT1020-T1022-BSDL
Sign in required

Download

Hardware

2 hardware offerings

^{Evaluation and Development Boards}
QorIQ^® T1040 Reference Design BoardFeatured

T1040RDB
^{Emulators, Probes, and Programmers}
CodeWarrior^® TAP

CW_TAP

1-5 of 13 hardware offerings

^{Evaluation and Development Boards}

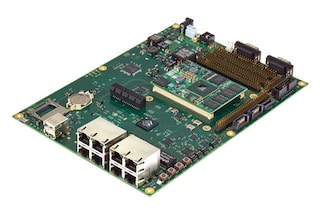

STKT104X

Quad-core Power Architecture® Evaluation Board with multiple I/O connectivity and strong computing performance at low power budget

By TQ-Systems GmbH Gold Partner
^{Test Accessories and Debugger}
TRACE32 JTAG/BDM Debugger for Power Architecture

Lauterbach has over 40 years of experience in making world class microprocessor development tools. TRACE32 supports technologies like JTAG, SWD, NEXUS or ETM with embedde...

By Lauterbach Gold Partner
^{Test Accessories and Debugger}
TRACE32 Debug and Aurora NEXUS Trace for QorIQ

Lauterbach has over 40 years of experience in making world class microprocessor development tools. TRACE32 NEXUS for is a high-end debug and trace system for NXP‘s QorIQ ...

By Lauterbach Gold Partner
^{Test Accessories and Debugger}
Green Hills Probe

High speed on-chip download, run control and trace.

By Green Hills Software Platinum Partner
^{Complementary Silicon or Component}
Power Supplies Non Isolated - POL

Ideal for powering the latest generation of FPGAs and DSPs, Murata’s non-isolated (PoL) DC-DC converters are DOSA and AMP compliant, and are competitive alternatives to d...

By Murata Manufacturing Co., Ltd. Gold Partner
^{Complementary Silicon or Component}
DRAM Modules

We build our modules from start to finish—designing, manufacturing, and testing all of the DRAM ourselves before assembling the modules and testing again. So, from high-p...

By Micron Gold Partner
^{Embedded Board Solutions}
SiMC-T10x

NXP QorIQ T1 system on module. Up to four 64-bit (e5500) cores. Suited for use in low power, mixed control and data plane applications such as fixed routers, switches, In...

By Sintecs BV Gold Partner
^{Embedded Board Solutions}
XPedite6101

The XPedite6101 provides a compact rugged computing solution with excellent processing performance-per-watt, available in XMC and PrPMC form factors.

By Extreme Engineering Solutions (X-ES) Gold Partner
^{Embedded Board Solutions}
XPedite6100

The XPedite6100 is a high-performance, XMC/PrPMC, single board computer supporting an NXP QorIQ T1042 processor.

By Extreme Engineering Solutions (X-ES) Gold Partner
^{Embedded Board Solutions}

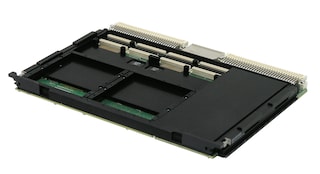

PPC11A

The PPC11A supports the same technology insertion pin-out as its predecessors, minimizing integration time and effort for legacy upgrades. It offers QorIQ T2081/T1042, fl...

By Abaco Systems Gold Partner
^{Embedded Board Solutions}

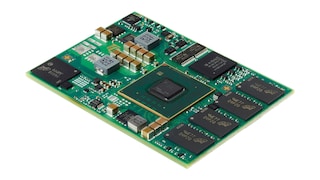

TQMT1042

Quad-core Power Architecture® module with multiple I/O connectivity and strong computing performance at low power budget.

By TQ-Systems GmbH Gold Partner
^{Embedded Board Solutions}

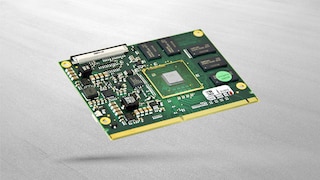

miriac® MPX-T1042

System on Module based on NXP® QorIQ® T1042 CPU. New cost effective MPX-2 System on Module form factor, connecting to a standard edge connector (MXM3.0 socket).

By MicroSys Electronics GmbH Gold Partner
^{Embedded Board Solutions}

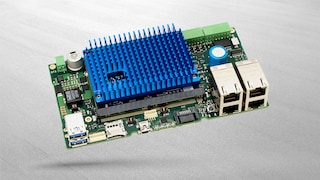

miriac® SBC-T1042
