QorIQ® T2080

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

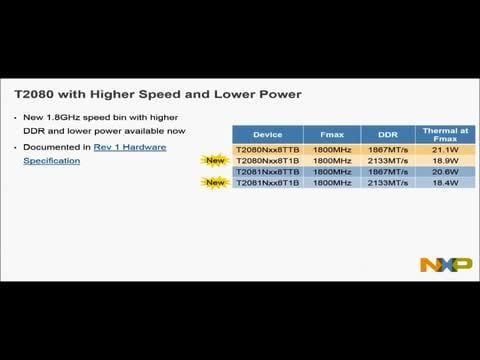

Click over video to play

The 28 nm QorIQ T2080 and T2081 communications processors bring the architectural innovations of the T series flagship T4240, such as the 1.8 GHz dual-threaded e6500 core, into an eight virtual core mid-range platform at reduced power and price points.

The T2080 processor is primarily intended to succeed successful P3041 and P2041 mid-range series of quad-core devices as a control plane or integrated control and data plane processor. It provides an excellent migration path, as it offers 2x or better in core capability, cache size, SerDes bandwidth and Ethernet connectivity, within a similar power budget. It also provides a value-engineering opportunity for P4080 customers, as T2080 provides equivalent performance at much lower price and power.

The T2081 is a smaller-package version of the T2080, which is pin-compatible with the quad-core T1042. This provides T1042 customers an easy upgrade to higher performance if processing requirements increase. It also enables customers to reuse a single board for two different product performance levels.

Data Sheet

Reference Manual

Product Details

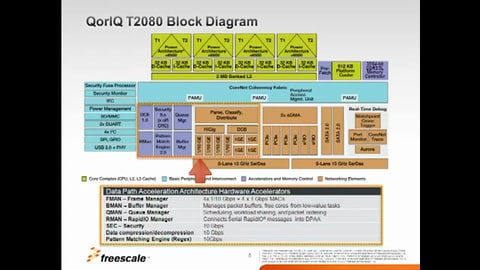

Block Diagram

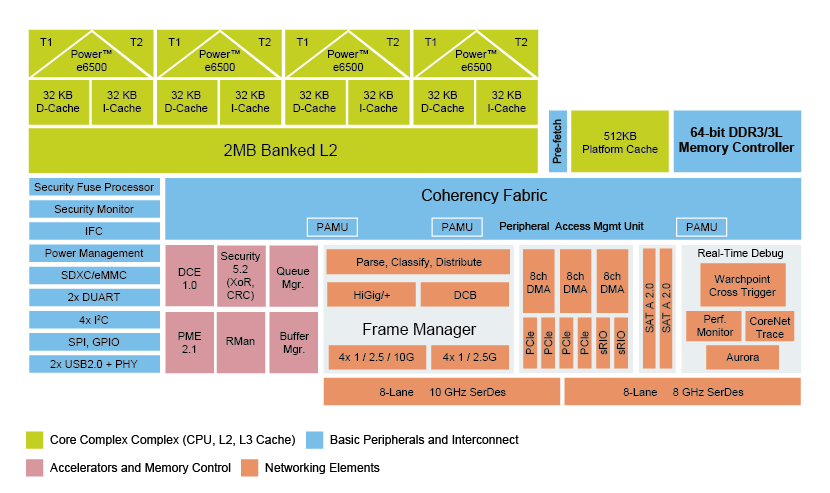

T2080 BD IMG

Get diagram PDF

Features

Core Complex

Four dual-threaded e6500 cores built on Power Architecture^{^®} technology
- Up to 1.8 GHz each, 6.0 DMIPS/MHz per core
- Shares a 2 MB L2 cache
- Three levels of instructions: User, supervisor, hypervisor
- Hybrid 32-bit mode to support legacy software and transition to a 64-bit architecture
- Advanced power management saving modes include state retention during power gating

Basic Peripherals and Interconnect

CoreNet^{^®} platform cache
Hierarchical interconnect fabric
- CoreNet fabric supporting coherent and non-coherent transactions with prioritization and bandwidth allocation amongst CoreNet endpoints
Additional peripheral interfaces
- Two high-speed USB 2.0 controllers with integrated PHYs
- Enhanced secure digital host controller (SD/MMC/eMMC)
- Enhanced serial peripheral interface (eSPI)
- Four I²C controllers
- Four UARTS
- Integrated flash controller supporting NAND and NOR flash memory

Accelerators and Memory Controller

64-bit DDR3/3L SDRAM memory controller with ECC support
- Up to 2.1 GT/s
- Memory pre-fetch engine
DPAA incorporating acceleration for the following functions
- Packet parsing, classification and distribution up to 24Gb/s (FMAN)
- Queue management for scheduling, packet sequencing and congestion management of up to 2^24 queues (QMAN)
- Hardware buffer management for buffer allocation and de-allocation with 64 buffer pools (BMAN)
- Integrated security acceleration (SEC) to 10 Gbps
- Decompression/compression acceleration at up to 17.5 Gbps (DCE)
- Signature detection (PME) to 10Gb/s
- DPAA support of RapidIO^{^®} messaging (RMAN) (T2080 only)

Networking Elements

SerDes
- 8 lanes at up to 10GHz
- 8 lanes at up to 8GHz (T2080 only)
Ethernet interfaces: 8 MACS (7 on T2081) multiplexed over the following options
- Up to four 10 Gb/s MACs supporting XFI/KR, XAUI, and HiGig (two on T2081 supporting XFI/KR only)
- Up to eight SGMII (5 on T2080)
- Up to four 2.5Gb/s SGMII
- Up to two RGMII
High-speed peripheral interfaces
- Two PCI Express 3.0 controllers (one on T2081)
- Two PCI Express 2.0 controllers (three on T2081)
- Endpoint SR-IOV
- Two Serial RapidIO 2.1 controllers/ports running at up to 5 GHz with Type 11 messaging and Type 9 data streaming support (T2080 only)
- Two Serial ATA (SATA) 2.0 controllers (T2080 only)
DMA
- Dual eight channel

Additional Features

Support for hardware virtualization and partitioning enforcement
- Extra privileged level for hypervisor support
- Logical to real address translation
- Virtual core aware MMU/TLB
- vMPIC (virtualized interrupt controller)/virtual core capable PPC cores
- vDMA (user level DMA engine)
- PAMUv2 (I/O MMU supporting paging)
- DPAA (Ethernet MAC virtualization, accelerator virtualization)
Trust architecture secure boot
- Secure boot, secure debug, tamper detection, volatile key storage, alternate image and key revocation
This product is included in our product longevity program, with assured supply for a minimum of 10 years after launch

Part numbers include: T2080NSE8MQB, T2080NSE8MQLB, T2080NSE8P1B, T2080NSE8PTB, T2080NSE8T1B, T2080NSE8TTB, T2080NSN8MQB, T2080NSN8MQLB, T2080NSN8P1B, T2080NSN8PTB, T2080NSN8T1B, T2080NSN8TTB, T2080NXE8MQB, T2080NXE8MQLB, T2080NXE8P1B, T2080NXE8PTB, T2080NXE8T1B, T2080NXE8TTB, T2080NXN8MQB, T2080NXN8MQLB, T2080NXN8P1B, T2080NXN8PTB, T2080NXN8T1B, T2080NXN8TTB, T2080QDS-PA, T2081NSE8MQB, T2081NSE8MQLB, T2081NSE8P1B, T2081NSE8PTB, T2081NSE8T1B, T2081NSE8TTB, T2081NSN8MQB, T2081NSN8MQLB, T2081NSN8P1B, T2081NSN8PTB, T2081NSN8T1B, T2081NSN8TTB, T2081NXE8MQB, T2081NXE8MQLB, T2081NXE8P1B, T2081NXE8PTB, T2081NXE8T1B, T2081NXE8TTB, T2081NXN8MQB, T2081NXN8MQLB, T2081NXN8P1B, T2081NXN8PTB, T2081NXN8T1B, T2081NXN8TTB.

Comparison Table

	T2080	T2081
SerDes	16	8
PCIe	2x Gen3 + 2x Gen2	1x Gen3 + 3x Gen2
SRIO	2 + RMan	No
SATA	2	No
Aurora	Yes	No
10Gbps MACs	Up to 4, with XFI, XAUI, and HiGig	Up to 2 with XFI
1 Gbps MACs	Up to 8	Up to 7
Package	25 x 25 mm , 896 pins, 0.8mm pitch	23 x 23 mm, 780 pins, 0.8mm pitch, pin compatible with T1042

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

Design Resources

Hardware

Quick reference to our board types.

4 hardware offerings

^{Evaluation and Development Boards}
QorIQ^® T2080 Development BoardFeatured

T2080RDB
^{Evaluation and Development Boards}
C29x PCI Express® Adapter Platform Featured

C29XPCIE
^{Emulators, Probes, and Programmers}
Power Architecture^® processor ( COP ) Probe Tips for CodeWarrior^® TAP

CWH-CTP-COP-YE

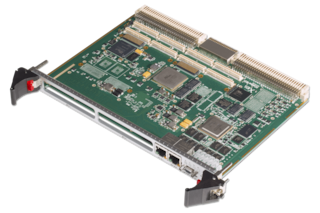

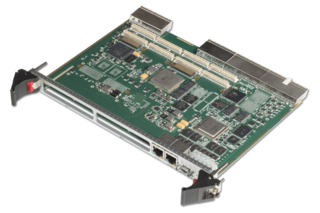

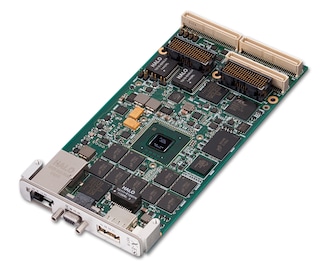

Additional hardware available. View our featured partner solutions.
^{Emulators, Probes, and Programmers}
CodeWarrior^® TAP

CW_TAP

1-5 of 9 hardware offerings

^{Embedded Board Solutions}

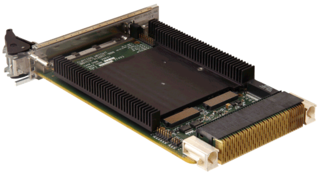

VPX3-133 3U VPX T2080 SBC

The VPX3-133 is a rugged 3U OpenVPX single board computer (SBC) featuring the quad-core QorIQ T2080 processor at 1.5 GHz. Each core includes an AltiVec vector processin...

By Curtiss-Wright Defense Solutions Gold Partner
^{Embedded Board Solutions}

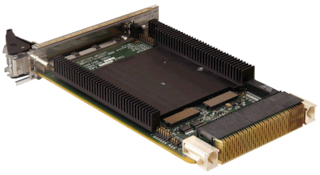

VPX3-152 3U VPX T2080 SBC

The VPX3-152 3U VPX Single Board Computer (SBC) features an NXP T2080 quad-core processor and extensive I/O capabilities (USB, SATA,RS-232/422, GbE, XMC and LVTTL).

By Curtiss-Wright Defense Solutions Gold Partner
^{Embedded Board Solutions}

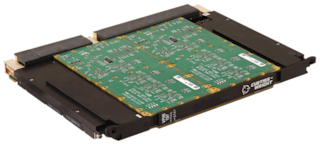

VPX6-197 6U VPX T2080 SBC

The VPX6-197 6U VPX SBC combines the NXP T2080 AltiVec-enabled processor with advanced I/O needed for defense & aerospace applications.

By Curtiss-Wright Defense Solutions Gold Partner
^{Embedded Board Solutions}

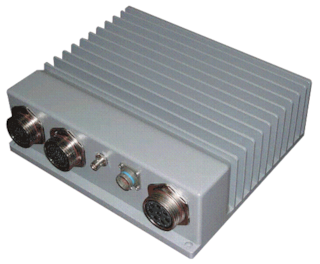

MPMC-961x 6U 1-slot Modular Computer

The MPMC-961x Mission Computer is equipped with an integrated 28 VDC power supply, a VME-196 NXP T2080 Processor SBC, and 2 PMC/XMC sites. The MPMC-961x is ideal for spac...

By Curtiss-Wright Defense Solutions Gold Partner
^{Embedded Board Solutions}
V3-152 3U VPX DO-254 DAL A Safety-Certifiable SBC with T2080

The V3-152 3U OpenVPX SBC features NXP’s quad-core QorIQ T2080 processor & an extensive I/O complement for flexibility. The V3-152 is a safety-certifiable variant of the ...

By Curtiss-Wright Defense Solutions Gold Partner
^{Embedded Board Solutions}

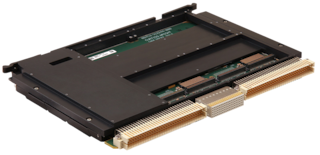

VME-196 VME SBC with NXP T2080

The VME-196 VME SBC with NXP T2080 supports a rich I/O complement per processing node which includes 3 Gigabit Ethernet ports, up to 6 serial channels, digital I/O, SATA,...

By Curtiss-Wright Defense Solutions Gold Partner
^{Embedded Board Solutions}

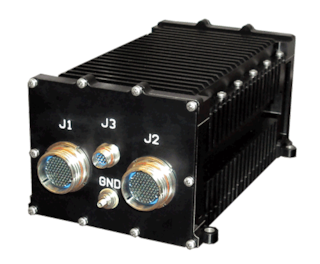

MPMC-931x Rugged 3U 1-slot Mission Computer
