OM7816

OM7816: BGU8007 GPS LNA evaluation board

Name: BGU8007 GPS LNA evaluation board
Price: 160.00 USD

Overview

The BGU8007 GPS LNA evaluation board simplifies the evaluation of the BGU8007 GPS LNA for the GNSS application. The evaluation board enables testing of the device performance and requires no additional support circuitry. The board is fully assembled with the BGU8007, including the input series inductor as well as a decoupling capacitor to optimize the performance. The board is supplied with two SMA connectors for input and output connection to RF test equipment. The BGU8007 can operate from a 1.5 V to 2.2 V single supply and consumes about 4.6 mA.

MoreLess

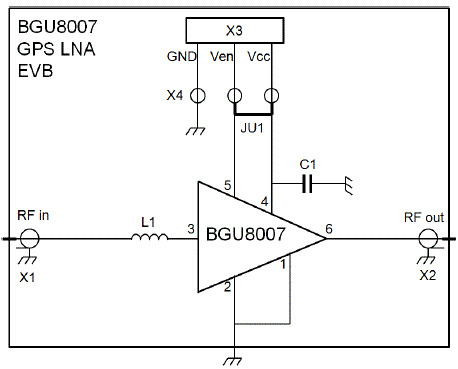

Circuit diagram of the BGU8007 evaluation board

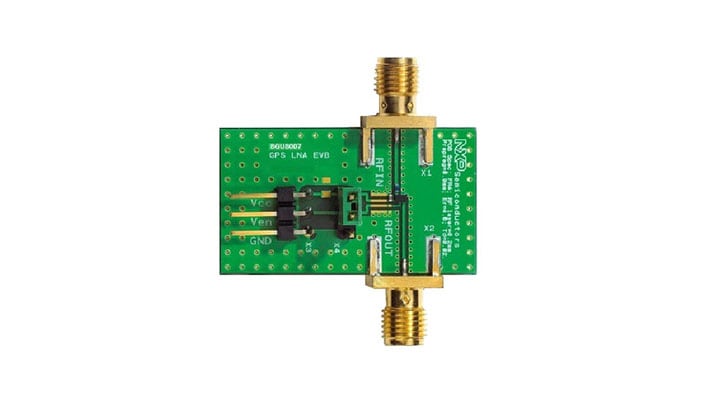

BGU8007 GPS LNA evaluation board (MMIC)

Specifications

Supported Devices

RF

LNAs for GPS

BGU8007 : SiGe:C LNA MMIC for GPS, GLONASS, Galileo and Compass

MoreLess

Technical and Functional Specifications

Connectivity	Two SMA connectors for input and output connection to RF test equipment
Power Management	Evaluation of the power on settling time t_on and the power off settling time t_off

Buy

OM7816 ^Active
BGU8007 GPS LNA evaluation board
- BGU8007 GPS LNA evaluation board

- OM7816/BGU8007/MMI
- 1 @ US
- $160.00

Design Resources

Documents

Data Sheet ( 1 )

SiGe:C Low Noise Amplifier MMIC for GPS, GLONASS, Galileo and Compass
- PDF
- Rev 2.0
- Mar 30, 2012
- 2.3 MB
- BGU8007
- English

User Guide ( 1 )

User manual for the BGU8007 GPS LNA evaluation board
- PDF
- Rev 1.0
- Nov 1, 2011
- 585.4 KB
- UM10497
- English

Brochure ( 1 )

NXP SiGe:C GPS LNAs
- PDF
- Rev 1.0
- 722.6 KB
- BGU700X_BGU800X_SIGEC_GPS_LNAS
- English

Target Applications

LNA for GPS
GLONASS
Galileo and Compass (BeiDou) in smart phones
- Feature phones
- Tablet
- Digital still cameras
- Digital video cameras
- RF front-end modules
- complete GNSS modules and personal health applications
