BGU8011 GNSS LNA evaluation board

OM7841

Roll over image to zoom in

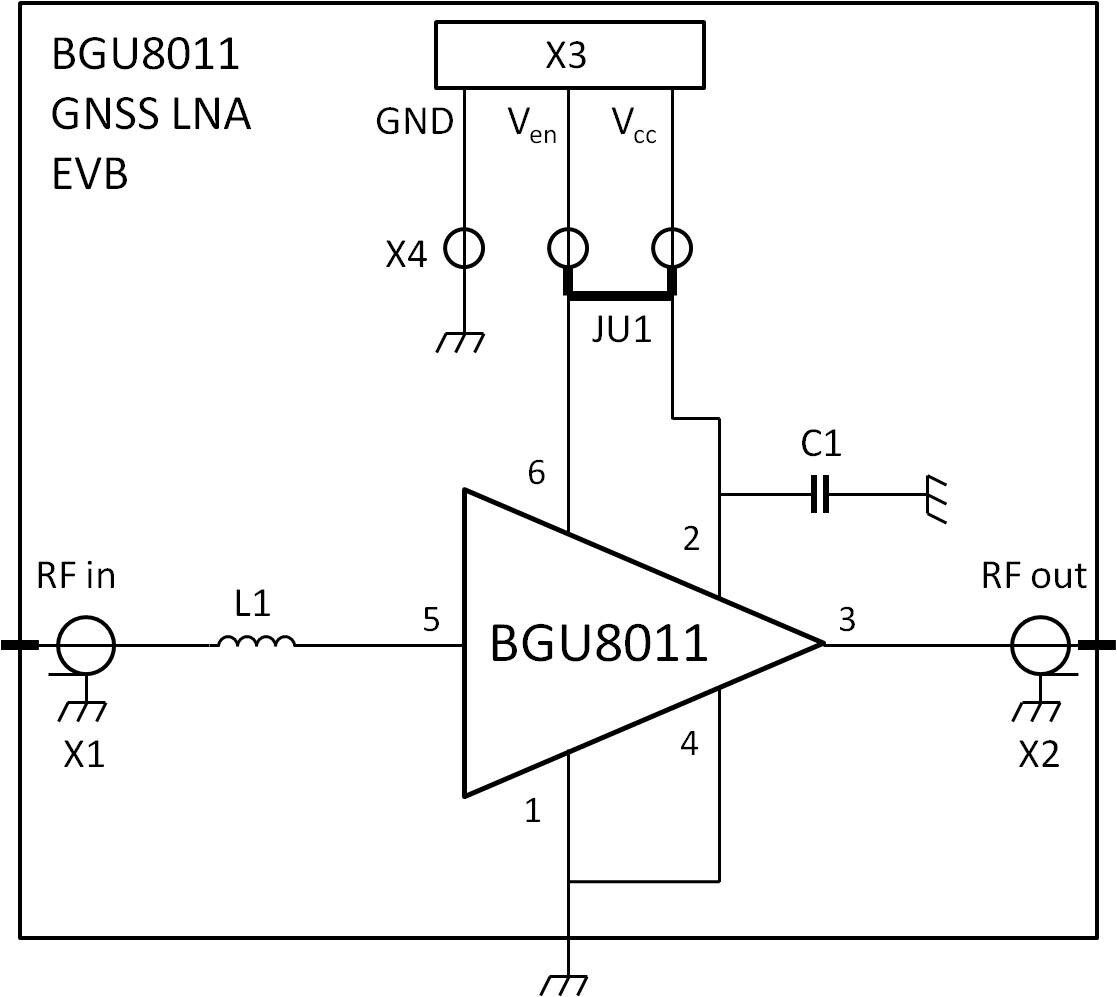

The BGU8011 GPS LNA evaluation board simplifies the evaluation of the BGU8011 LNA for the GPS application. The evaluation board enables testing of the device performance and requires no additional support circuitry. The board is fully assembled with the BGU8011, the input series inductor and a decoupling capacitor. The board is supplied with two SMA connectors for input and output connection to RF test equipment. The BGU8011 can operate from a 1.5 V to 3.1 V single supply and consumes about 4.4 mA.

Product Details

Select a section:

Supported Devices

RF

LNAs for GPS

  • BGU8011: SiGe:C Low Noise Amplifier MMIC for GPS, GLONASS, Galileo and Compass

Features

Connectivity

  • Integrated temperature stabilized bias for easy design
  • Requires only one input matching inductor and one supply decoupling capacitor
  • Input and output DC decoupled
  • Integrated matching for the output

Power Management

  • Supply voltage 1.5 V to 3.1 V
  • Optimized performance at very low supply current of 4.4 mA
  • Power-down mode current consumption < 1 µA
  • ESD protection on all pins (HBM > 2 kV)

Size

  • 1.1 mm x 0.9 mm x 0.5 mm; 0.4 mm pitch: SOT1230
  • High out of band IP3i of 7 dBm
  • Noise figure (NF) = 0.70 dB
  • Gain = 16.3 dB
  • High input 1 dB compression point of -5 dBm
  • 180 GHz transit frequency - SiGe:C technology
  • Covers full GNSS L1 band, from 1559 MHz to 1610 MHz

Buy Options

  • OM7841

  • BGU8011 GNSS LNA evaluation board.

    • BGU8011 LNA evaluation board in ESD safe packing
  • $160.00 USD
  • For a quantity of 1
