10-Channel Configurable PMIC for i.MX6 and i.MX7 Application Processors

PF3001

Roll over image to zoom in

The PF3001 power management integrated circuit (PMIC) features a configurable architecture that supports numerous outputs with various current ratings as well as programmable voltage and predefined sequencing. This enables the PF3001 to power the core processor, external memory and peripherals to provide a single-chip system power solution in multiple applications, reducing design complexity and lowering overall bill of materials. The high-performance architecture offers a cost-optimized solution for "always ON" applications while PF3000 enables Low Power implementation in consumer and industrial environments.

The PF3001 is ideally suited for i.MX6UL processors, and can also meet the power consumption requirements for another low end i.MX 6 series, including the i.MX 6Solo, i.MX 6SoloLite, i.MX 6SoloX, i.MX7D and i.MX7S. The pin to pin compatibility with the PF3000 makes the i.MX and PF3000/1 solution scalable and allows to reuse the current Board Support Package (BSP) used in multiple reference designs. This provides customers with a platform-level solution from a single supplier to enable faster time to market and reduces engineering effort.

Product Details

Select a section:

Block Diagram

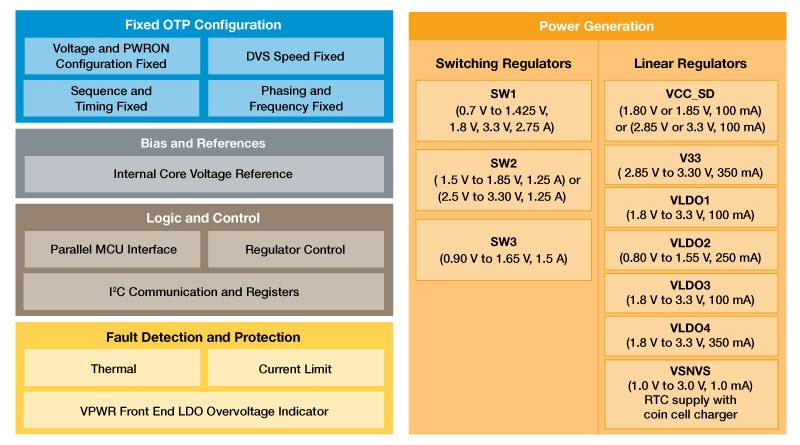

PF3001 Functional Internal Block Diagram

PF3001 Functional Internal Block Diagram
Get diagram PDF

Features

System Features

  • 2.8 V to 5.5 V input voltage
  • 10-channel, 6.6 A total power delivery
  • 4-channel configurable buck converters
  • Forced PWM/PFM or APS operation
  • 6 user programmable LDOs
  • Coin cell charger
  • The programmable output voltage, current limit, soft-start, FSW, a fault interrupt
  • Pin compatible with PF3000
  • High power 7 x 7 mm QFN package
  • Automotive, consumer, industrial grades available
  • Output current 2.75 A
  • i.MX6SL, i.MX6SX, i.MX6UL, i.MX7D and i.MX7S MCU supported
  • I2C interface and input control

Product Longevity Program

  • This product is included in the NXP Product Longevity Program ensuring a stable supply of products for your embedded designs. The PF3001 is included in the 10-year program
