Name: FRDM Development Board for RW612 WiFi 6 Bluetooth Low Energy 802154 TriRadio Wireless MCU
Price: 30.00 USD
Availability: BackOrder

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Click image to open expanded view

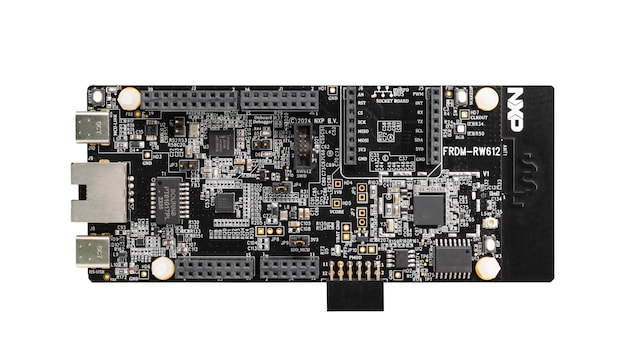

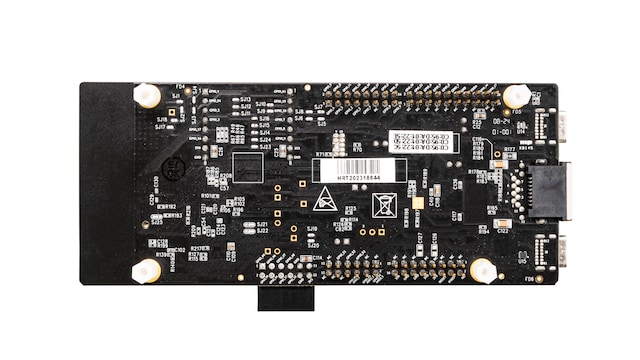

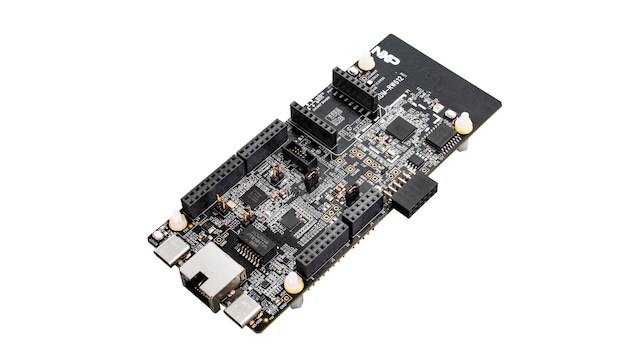

FRDM-RW612 is a compact and scalable development board for rapid prototyping of the RW61x series of Wi-Fi 6 + Bluetooth Low Energy + 802.15.4 tri-radio wireless MCUs.

It offers easy access to the MCU’s I/Os and peripherals, integrated open-standard serial interfaces, external flash memory and on-board MCU-Link debugger.

NXP's Expansion Board Hub for add-on boards, the Application Code Hub for software examples and more are available through the MCUXpresso Developer Experience.

Design Files

Software

Product Details

Block Diagram

FRDM Development Board for RW612 Wi-Fi 6 + Bluetooth Low Energy + 802.15.4 Tri-Radio Wireless MCU

Get diagram PDF

Supported Devices

Wireless Connectivity

Wi-Fi^® + Bluetooth^® + 802.15.4

RW610: Wireless MCU with Integrated Radio: 1x1 Wi-Fi^® 6 + Bluetooth^® Low Energy 5.4 Radios
RW612: Wireless MCU with Integrated Tri-radio: 1x1 Wi-Fi^® 6 + Bluetooth^® Low Energy 5.4 / 802.15.4

Power Management

VBUS Protection

NX5P3090UK: USB PD and Type-C Current-Limited Power Switch

Sensors

I3C/I²C Digital Temp. Sensors

P3T1755DP: I3C/I²C-Bus ±0.5 °C Accurate Digital Temperature Sensor

Features

Microcontroller

RW612 Arm™ Cortex™-M33 core @260MHz with optimized performance efficiency, 1.2 MB on-chip SRAM

Memory Expansion

Winbond QSPI flash (512Mbit): W25Q512JV
AP Memory QSPI pSRAM (64 Mbit): APS6404L-SQN-SN

Connectivity

SPI/I2C/UART connector (mikroBUS, Pmod™)
Ethernet Phy and connector
HS USB Type-C connectors
Dual-band, 1x1 Wi-Fi 6 radio with 20 MHz channel bandwidth
Bluetooth LE radio
802.15.4 radio supporting Zigbee and Thread

Debug

On-board MCU-Link debugger with CMSIS-DAP
JTAG/SWD connector

Sensor

P3T1755 I3C temperature sensor

Expansion Options

Arduino® Header (with FRDM expansion rows)
FRDM Header
Pmod™
mikroBUS™

User Interface

RGB user LED, Reset, ISP, Wakeup buttons

Open-source Software Examples

Power Your Design with Application Code Hub

Leverage ready-to-use demo code on GitHub for faster development.

Start building now with ACH

Buy Options

Click to expand

FRDM-RW612
Active

End Node Matter (Thread, Wi-Fi) Development Platforms.

Kit Contains

FRDM-RW612
Quick Start Guide
USB Cable Type-C

$30.00 USD

Pending Stock

ADD TO CART
