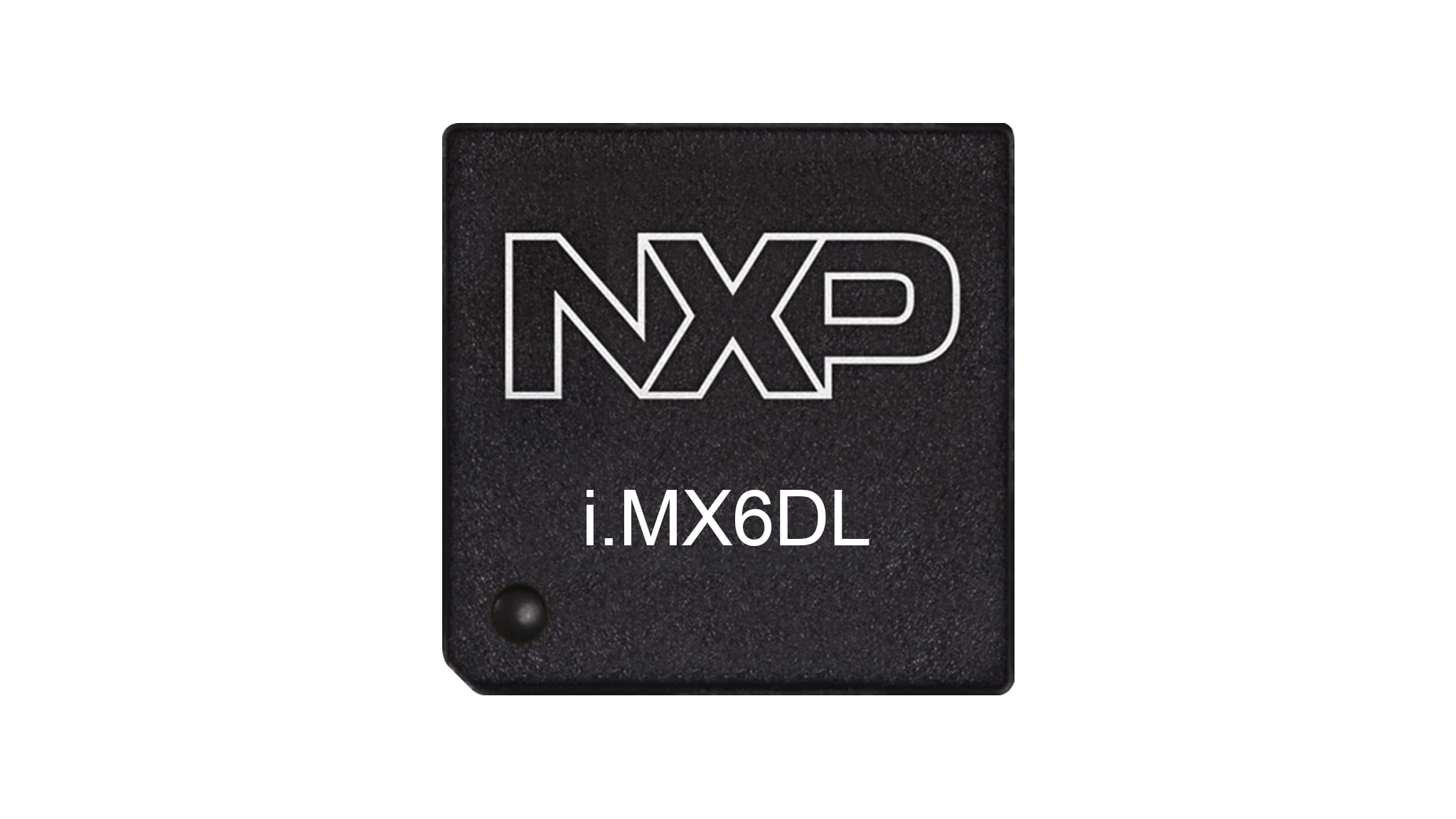

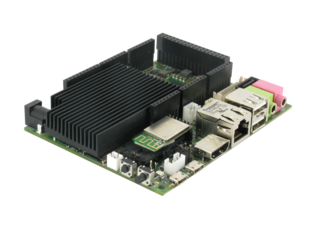

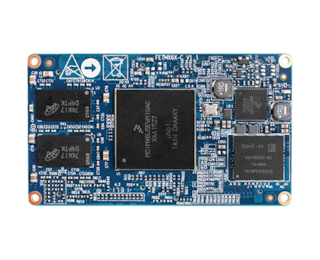

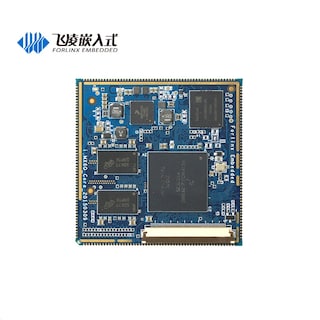

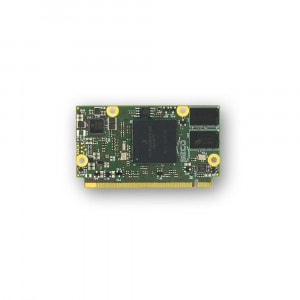

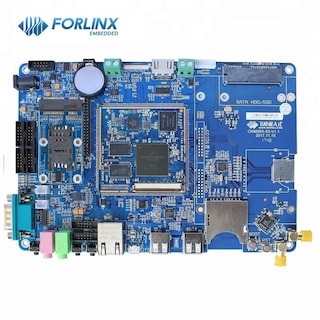

i.MX6DL: i.MX 6DualLite Processors – Dual-Core, 3D Graphics, HD Video, Arm^® Cortex^®-A9 Core

Overview

The i.MX 6 series of applications processors combines scalable platforms with broad levels of integration and power-efficient processing capabilities particularly suited to multimedia applications. The i.MX6 DualLite processor features:

Enhanced capabilities of high-tier portable applications by fulfilling MIPS needs of operations systems and games
Multilevel memory system
Smart speed technology that enables the designer to deliver a feature-rich product, requiring levels of power far lower than industry expectations
Dynamic voltage and frequency scaling
Powerful graphics acceleration
Interface flexibility
Integrated power management throughout the device
Advanced hardware-enabled security

The i.MX 6DualLite is supported by companion NXP^® power management ICs (PMIC) MMPF0100, MMPF0200.

i.MX 6 applications processors are part of NXP's EdgeVerse™ edge computing platform.

MoreLess

Features

CPU Complex

2x Arm^® Cortex^®-A9 up to 1 GHz
512 KB L2 cache
32 KB instruction and data caches
NEON SIMD media accelerator

Multimedia

GPU 3D
- Vivante GC880
- 35Mtri/s 266Mpxl/s Open GL ES 2.0
GPU 2D(Vector Graphics)
- Emulated on GPU 3D
GPU 2D(Composition)
- Vivante GC320
- 600Mpxl/s, BLIT
Video Decode
- 1080p30 + D1
Video Encode
- 1080p30 H.264 BP/ Dual 720p encode
Camera Interface
- Types: 1x 20-bit parallel, MIPI-CSI2 (2 lanes)

Memory

DDR
- 2x32 LP-DDR2, 1x64 DDR3 / LV-DDR3
NAND
- SLC/MLC, 40-bit ECC, ONFI2.2, DDR

Connectivity

Four USB2.0
- 1xHS OTG + PHY
- 1xHost + PHY
- 2xHost USB HSIC
Ethernet
- 1 Gbps + IEEE^®1588
Expansion Ports
- 3x SD/MMC 4.4, 1x SDXC
- 4x SPI, 5x UART, 3x I²C
- MIPI-HSI
- PCIe 2.0 (1 lane)

Display

2 x WXGA (1366x786)
EPDC, LVDS, Parallel, MIPI-DSI

Advanced Power Management

PMU integration
NXP^® PF100 power management unit

Security

Advanced security supporting:

High Assurance Boot
Cryptographic cipher engines
Random number generator
Tamper detection

Package and Temperature

21 x 21 0.8 mm BGA
Consumer (0C to +95C -20C to +105C or -20C to +105C), up to 1 GHz
Industrial (-40C to +105C), up to 800 MHz
Automotive (-40C to +125C)

MoreLess

Features

CPU Complex

2x Arm^® Cortex^®-A9 up to 1 GHz
512 KB L2 cache
32 KB instruction and data caches
NEON SIMD media accelerator

Multimedia

GPU 3D
- Vivante GC880
- 35Mtri/s 266Mpxl/s Open GL ES 2.0
GPU 2D(Vector Graphics)
- Emulated on GPU 3D
GPU 2D(Composition)
- Vivante GC320
- 600Mpxl/s, BLIT
Video Decode
- 1080p30 + D1
Video Encode
- 1080p30 H.264 BP/ Dual 720p encode
Camera Interface
- Types: 1x 20-bit parallel, MIPI-CSI2 (2 lanes)

Memory

DDR
- 2x32 LP-DDR2, 1x64 DDR3 / LV-DDR3
NAND
- SLC/MLC, 40-bit ECC, ONFI2.2, DDR

Connectivity

Four USB2.0
- 1xHS OTG + PHY
- 1xHost + PHY
- 2xHost USB HSIC
Ethernet
- 1 Gbps + IEEE^®1588
Expansion Ports
- 3x SD/MMC 4.4, 1x SDXC
- 4x SPI, 5x UART, 3x I²C
- MIPI-HSI
- PCIe 2.0 (1 lane)

Display

2 x WXGA (1366x786)
EPDC, LVDS, Parallel, MIPI-DSI

Advanced Power Management

PMU integration
NXP^® PF100 power management unit

Security

Advanced security supporting:

High Assurance Boot
Cryptographic cipher engines
Random number generator
Tamper detection

Package and Temperature

21 x 21 0.8 mm BGA
Consumer (0C to +95C -20C to +105C or -20C to +105C), up to 1 GHz
Industrial (-40C to +105C), up to 800 MHz
Automotive (-40C to +125C)
