As the first device utilizing both the Arm^® Cortex^®-A9 and Cortex-M4 cores, the i.MX 6SoloX applications processor offers a highly integrated multi-market solution.

Enables secure, connected homes and vehicles within the Internet of Things (IoT)
Delivers secure and robust implementation to enable concurrent execution of multiple software environments
Provides for an application-rich system with real-time responsiveness
Maintains maximum effectiveness and security when portioning system resources such as memory and peripherals
Backed by a strong enablement ecosystem for better customer solutions and faster time-to-market

The i.MX 6SoloX is supported by companion power management ICs (PMIC) MMPF0100 and MMPF0200.

i.MX 6 applications processors are part of NXP's EdgeVerse™ edge computing platform.

Reference Manual

Product Details

Block Diagram

i.MX 6SoloX Applications Processor Block diagram

i.MX 6SoloX Applications Processor Block diagram

Get diagram PDF

Features

CPU Complex

1x Cortex-A9 up to 1 GHz
- 256 KB L2 cache
- 32 KB instruction and data caches
- NEON SIMD media accelerator
1x Cortex-M4 up to 200 MHz
- 16 KB instruction and data caches
- 64 KB TCM
- MPU and FPU

Multimedia

GPU 2D/3D
- Vivante GC400T
- 17Mtri/s 133Mpxl/s Open GL ES 2.0
Camera Interface
- 24-bit parallel CMOS sensor interface
- NTSC/PAL analog video input interface
PiXel Processing Pipeline (PXP)
- Image re-sizing, rotation, overlay and CSC

Memory

DDR
- 16/32-bit DDR3-800 and DDR3L-800
- 16/32-bit LPDDR2-800
NAND
- SLC/MLC, 62-bit ECC, ONFI2.2
- NOR
- 2x DDR Quad SPI
- 16/32-bit NOR Flash

Connectivity

2x 10/100/1000 Ethernet
- Hardware AVB for traffic shaping and enhanced packet prioritization
- Support for IEEE^{^®}1588
PCIe 2.0 (1 lane)
2x 8ch 12-bit ADC
3x USB 2.0 ports
- 2x HS OTG + PHY
- 1x HS Host HSIC
4x SD/MMC 4.5
5x SPI, 6x UART, 4x I²C, 5x I²S/SSI
FlexCAN
MLB 25/50

Display

Parallel RGB
LVDS

Advanced Power Management

Partial PMU integration
NXP^{^®} PF0200 PMIC

Security

Multicore unit includes for multi-core isolation and sharing
Resource Domain Controller (RDC)
Secure Messaging Unit (MU)
Hardware Semaphores
High Assurance Boot, cryptographic cipher engines, random number generator, and tamper detection

Package and Temperature

19 x 19 mm 0.8 mm BGA
17 x 17 mm 0.8 mm BGA (two ball map options)
14 x 14 mm 0.65 mm BGA
Extended Commercial (-20C to +105C)
Industrial (-40C to +105C)
Automotive (-40C to +125C), AEC-Q100

Design Files

3 design files

Clear all

^Models
BSDL file for i.MX 6SoloX

ZIPRev 1Oct 28, 201531.2 KBIMX6SX_BSDL
Sign in required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
^Models
i.MX 6SoloX IBIS Model files

ZIPRev 20160113Jan 11, 2017129239 KBIMX6SX_IBIS
Sign in required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
^{Printed Circuit Boards and Schematics}
i.MX6SX_400_Footprint_OrCard_symbol

ZIPRev 0Jul 7, 201536.5 KBI.MX6SX-400-FOOTPRINT-ORCAD
Sign in required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Hardware

1-5 of 9 hardware offerings

Clear all

^{Evaluation and Development Boards}
SABRE Board for Smart Devices Based on the i.MX 6SoloX Applications ProcessorsFeatured

RD-IMX6SX-SABRE
^{Emulators, Probes, and Programmers}
IMX6_L4.1.15_1.0.0_MFG_TOOL

IMX6_L4.1.15_1.0.0_MFG_TOOL
Sign in required
^{Emulators, Probes, and Programmers}
IMX6_L3.14.28_MFG_TOOL

IMX6_L3.14.28_MFG_TOOL
Sign in required
Additional hardware available. View our featured partner solutions.
^{Emulators, Probes, and Programmers}
IMX6_L4.1.15_2.0.0_MFG_TOOL

IMX6_L4-1-15_2-0-0_MFG-TOOL
Sign in required
^{Emulators, Probes, and Programmers}
IMX6_L3.10.53_MFG_TOOL

IMX6_L3.10.53_MFG_TOOL
Sign in required
^{Emulators, Probes, and Programmers}
IMX6_L5.1.1_2.1.0_MFG_TOOL

IMX6_L5.1_2.1.0_MFG_TOOL
Sign in required
^{Emulators, Probes, and Programmers}
IMX_KK4.4.3_MFG_TOOL

IMX_KK4.4.3_MFG_TOOL
Sign in required
^{Emulators, Probes, and Programmers}
IMX6_L3.14.52_MFG_TOOL

IMX6_L3.14.52_MFG_TOOL
Sign in required
^{Emulators, Probes, and Programmers}
IMX-L5.0.0-MFG-TOOL

IMX-L5.0.0-MFG-TOOL
Sign in required

1-5 of 44 hardware offerings

Clear all

^{Evaluation and Development Boards}
conga-QKIT/ARM

This complete kit provides the ability to start evaluating Qseven® ARM modules immediately -Qseven Starter Kit for ARM -All accessories out of the box -Immediate evalu...

By congatec Gold Partner
^{Evaluation and Development Boards}
Starterkit PicoCore™MX6SX Linux

Extensive Starterkit with tiny Computer On Module (35x40mm) with 2x Gigabit Ethernet based on NXP i.MX6SoloX (PicoCoreMX6SX) module incl. Linux, base board, cable kit, d...

By F&S Elektronik Systeme GmbH Gold Partner
^{Evaluation and Development Boards}
Starterkit efus™A9X Linux

Extensive Starterkit (efusA9X) incl. Windows Embedded Compact 2013 or Linux, base board, cable kit, 7“ WVGA TFT with RGB interface and touch panel, access data to documen...

By F&S Elektronik Systeme GmbH Gold Partner
^{Evaluation and Development Boards}

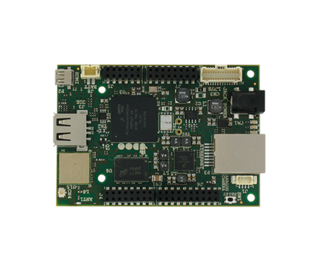

UDOO Neo

UDOO NEO is an open hardware low-cost computer equipped with a NXP i.MX 6SoloX applications processor which embeds an ARM® Cortex-M4 microcontroller for Android and Linux...

By SECO Gold Partner
^{Evaluation and Development Boards}
iMX6 SoloX Developer's Kit

Embedded Artists' iMX6 SoloX Developer's Kit lets you get up-and-running quickly with the EA iMX6 SoloX COM Board.

By Embedded Artists AB Gold Partner
^{Test Accessories and Debugger}
J-Link PLUS

JTAG/SWD debug probe with USB interface. Based on a 32-bit RISC CPU, it can communicate at high speed with the supported target CPUs. J-Link is used around the world in t...

By SEGGER Microcontroller GmbH Gold Partner
^{Test Accessories and Debugger}
Arm ULINKpro

The ULINKpro debug and trace unit connects your PC's USB port to your target system and allows you to program, debug, and analyze your applications using its unique strea...

By Arm Platinum Partner
^{Test Accessories and Debugger}
J-Link EDU

The J-Link EDU emulator is our standard J-Link emulator wrapped in a new educational marked housing. It is intended for educational use and the home hobbyist. Support for...

By SEGGER Microcontroller GmbH Gold Partner
^{Test Accessories and Debugger}
J-Link BASE

Supercharge your IDE with the worlds fastest debug probe. The J-Link Flash download technology achieves a performance very close to the maximum speed possible. No other ...

By SEGGER Microcontroller GmbH Gold Partner
^{Test Accessories and Debugger}
Flasher Compact

Flasher Compact is the compact twin to the Flasher PRO, primarily designed for installation into production rigs or automated test equipment (ATE) where production space ...

By SEGGER Microcontroller GmbH Gold Partner
^{Test Accessories and Debugger}
Flasher ARM

In-Circuit-Flash-Programmer based on the J-Link family for production and in-field-service. Offers fastest flash algorithms available, multiple integration options (RS232...

By SEGGER Microcontroller GmbH Gold Partner
^{Test Accessories and Debugger}
TRACE32 JTAG/SWD Debugger for A

Lauterbach has experience in making world class microprocessor development tools since 1979. TRACE32 supports technologies like JTAG, SWD, NEXUS or ETM with embedded debu...

By Lauterbach Gold Partner
^{Test Accessories and Debugger}
I-jet

I-jet is a high-performing in-circuit debugging probe for ARM. It is capable of delivering power to the target board and measuring target power consumption. I-jet is full...

By IAR Systems Platinum Partner
^{Test Accessories and Debugger}
J-Link PRO

J-Link PRO is an enhanced version of the SEGGER J-Link. This emulator supports ARM/Cortex devices. This has an Ethernet interface in addition to the USB interface. This ...

By SEGGER Microcontroller GmbH Gold Partner
^{Test Accessories and Debugger}
SuperTrace Probe

Gather trace data from NXP ARM, Power Architecture and ColdFire.

By Green Hills Software Platinum Partner
^{Test Accessories and Debugger}
J-Link ULTRA+

Builds atop the J-Link to further enhance the debug experience. The J-Link ULTRA+ is three times faster than the industry standard J-Link, at a 3 MBytes/s download speed ...

By SEGGER Microcontroller GmbH Gold Partner
^{Test Accessories and Debugger}
J-Trace PRO Cortex

J-Trace PRO Cortex provides support for Cortex-A/R/M based microcontrollers. The SuperSpeed USB 3.0 interface of J-Trace PRO Cortex enables continuous streaming trace via...

By SEGGER Microcontroller GmbH Gold Partner
^{Test Accessories and Debugger}
J-Link WiFi

JTAG/SWD debug probe with WiFi interface. Based on a 32-bit RISC CPU, it can communicate at high speed with the supported target CPUs. J-Link is used around the world in ...

By SEGGER Microcontroller GmbH Gold Partner
^{Test Accessories and Debugger}
Flasher PRO

Flasher PRO is SEGGER’s “almost-anything” flash programmer for microcontrollers, SoCs, and (Q)SPI flashes.

By SEGGER Microcontroller GmbH Gold Partner
^{Test Accessories and Debugger}
Green Hills Probe

High speed on-chip download, run control and trace.

By Green Hills Software Platinum Partner
^{Test Accessories and Debugger}
Arm DSTREAM

The Arm DSTREAM family of high performance debug and trace probes enable Arm Development Studio to debug all Arm-based devices through a variety of interfaces.

By Arm Platinum Partner
^{Complementary Silicon or Component}
PIXI-9377

PIXI-9377 is a fully certified (FCC, TELEC, IC, CE, RCM) dual-band Wi-Fi 802.11a/b/g/n/ac with Bluetooth 5 SDIO module optimized for cost, size and performance. It is bas...

By TechNexion Ltd Gold Partner
^{Complementary Silicon or Component}
uSD-M.2 Adapter: Interconnect f

uSD-M.2 adapter board provides out-of-box experience for NXP i.MX with Murata’s M.2 Module Family enabled by Embedded Artists; interfacing WLAN/BT-signals including WLAN-...

By Murata Manufacturing Co., Ltd. Gold Partner
^{Complementary Silicon or Component}
Type 1XA: 802.11a/b/g/n/ac 2x2

Type 1XA is a 2.4GHz & 5GHz module based on Infineon CYW54591 combo chipset which supports Wi-Fi 802.11a/b/g/n/ac 2x2 MIMO RSDB + BT 5.2 BR/EDR/LE up to 866 Mbps PHY data...

By Murata Manufacturing Co., Ltd. Gold Partner
^{Complementary Silicon or Component}
Type 1DX: 802.11b/g/n Wi-Fi + B

Type 1DX is high performance module based on Infineon CYW4343W combo chipset which supports Wi-Fi 802.11b/g/n + Bluetooth 5.1 BR/EDR/LE up to PHY data rate of 65Mbps on W...

By Murata Manufacturing Co., Ltd. Gold Partner
^Module
Wi-Fi 5 + BT 5.2 Radio Module -

The PAN9028 is a dual band 2.4/5 GHz 802.11 a/b/g/n Wi-Fi radio module with integrated Bluetooth® BR/EDR/LE, specifically designed for integrated applications where highe...

By Panasonic Industrial Devices Europe GmbH Gold Partner
^{Embedded Board Solutions}
Trizeps VII SX by Keith & Koep

SODIMM-200 CPU-Module with NXP i.MX 6SoloX Application Processor

By SECO Gold Partner
^{Embedded Board Solutions}
SBC-C23

SBC featuring a 32-bit DDR3L memory soldered on-board, up to 1 GB. When it comes to interfaces the board is plentiful: networking interfaces - such as 2x Fast Ethernet RJ...

By SECO Gold Partner
^{Embedded Board Solutions}
efus™A9X

Secure HMP Computer On Module with WLAN/BT based on NXP i.MX 6SoloX (efusA9X)

By F&S Elektronik Systeme GmbH Gold Partner
^{Embedded Board Solutions}
MicroGEA MX6ULL

The MicroGEA Module is the smallest module on the market based on i.MX 6ULL; everything is included in a very amazing size of 25 x 25 mm , with a height of 3.5 mm.

By Engicam Gold Partner
^{Embedded Board Solutions}

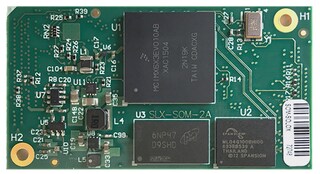

I.MX 6SOLOX SYSTEM-ON-MODULE

Mezzanine module that combines the i.MX 6SoloX dual-core MPU with 512MB DDR3, 512MB NAND Flash and 1Gb Ethernet PHY.

By Emcraft Systems LLC Gold Partner
^{Embedded Board Solutions}
Cubox-i

Put your laptop away. At 2” X 2” X 2”, the CuBox-i is the world’s smallest computer EVER. With its sleek and elegant design, the CuBox-i easily blends into your home or o...

By SolidRun Ltd Gold Partner
^{Embedded Board Solutions}
SBC-B08

New-generation all-equipped computer with a NXP i.MX 6SoloX applications processor. A revolutionary product in terms of connectivity, interactivity with the real world an...

By SECO Gold Partner
^{Embedded Board Solutions}
i.MX 6 Android and Linux Platfo

It is a generic i.MX 6/8 Android/Linux platform supporting WiFi, BT, 3G, Zibee, NFC, Camera, G-sensor, Light-sensor, Fast Ethernet, HDMI and all generic connectivities.

By Shenzhen Huameishi Tech Co., Ltd. Gold Partner
^{Embedded Board Solutions}
MY-IMX6-CB200

CPU：i.MX6QP/Q/U/S: Compatible with the automotive, industrial, commercial expansion grade Memory: DDR3 1GB, up to 2GB Storage: SPI NorFlash/4GB EMMC, Up to 64 GB EMMC...

By Zhuhai MYZR Technology Co., Ltd Gold Partner
^{Embedded Board Solutions}
i.Core MX6SX

EDIMM SOM based on NXP™ i.MX 6SoloX processor.

By Engicam Gold Partner
^{Embedded Board Solutions}
SMARCORE MX6SX

SMARC form factor SOM based on NXP i.MX 6SoloX processor.

By Engicam Gold Partner
^{Embedded Board Solutions}
PicoCore™MX6SX

tiny (35x40mm), secure HMP Computer On Module with 2x Gigabit Ethernet based on NXP i.MX6 SoloX (PicoCoreMX6SX)

By F&S Elektronik Systeme GmbH Gold Partner
^{Embedded Board Solutions}
SYS-B08-7

SYS-B08-7 is an Embedded Panel with 7” LCD display based on the NXP i.MX 6SoloX Processor. This smart, compact, industrial touch system features a 7” capacitive full-flat...

By SECO Gold Partner
^{Embedded Board Solutions}
iMX6 SoloX COM Board

The EA iMX6 SoloX COM Board provides a quick and easy solution for implementing a high-performance ARM dual-core Cortex-A9/M4 based design. The board supports heterogeneo...

By Embedded Artists AB Gold Partner
^{Embedded Board Solutions}
MY-IMX6-CB314

·NXP® i.MX 6S/U/Q:Compatible with the commercial expansion, automotive, industrial grade ARM Cortex-A9 Memory：DDR3 1GB, up to 2GB Storage：SPI NorFlash/4GB EMMC, Up...

By Zhuhai MYZR Technology Co., Ltd Gold Partner
^{Embedded Board Solutions}
MY-IMX6-CB336

CPU:i.MX6Q:Compatible with the industrial, commercial expansion grade Accept the 6U/S mass customization Memory：LPDDR21GB, up to 2GB Storage：SPI NorFlash/4GB EMMC, ...

By Zhuhai MYZR Technology Co., Ltd Gold Partner
^{Embedded Board Solutions}
Nit6_SoloX

The Nit6_SoloX is a multi-purpose i.MX6 single board computer based on the i.MX6 SoloX processor from NXP.

By Boundary Devices LLC Gold Partner
^{Embedded Board Solutions}
SYS-C23-IGW

SYS-C23-IGW is an Industrial IoT Gateway based on the NXP i.MX 6SoloX Processor. This Smart Edge Computing unit comes equipped with Edgehog OS, SECO's operating system op...

By SECO Gold Partner

To find a complete list of our partners that support this product, please see our Partner Marketplace.

Training

7 trainings

Clear all

^{On-Demand Webinar}
i.MX 6 Applications Processors: Scalable Multicore Solutions

32 minEnglish

^{On-Demand Webinar}
i.MX Ecosystem Enablement - Part 2

9 minEnglish

^{On-Demand Webinar}
i.MX and the New NXP Platform: Introduction

13 minEnglish Level: Beginner
Sign in required
Additional trainings are available. View our featured partner trainings.

^{On-Demand Webinar}
i.MX Ecosystem Enablement - Part 1

4 minEnglish

^{On-Demand Webinar}
i.MX Ecosystem Enablement - Part 3

14 minEnglish

^{On-Demand Webinar}
i.MX Ecosystem Enablement | Part 4

16 minEnglish Level: Beginner
Sign in required

^{On-Demand Webinar}
Designing a Scalable Embedded Product Supporting Different NXP i.MX Applications Processor Families

1 hrEnglish
Sign in required

Support

What do you need help with?

Recommended Communities

i.MX Processors

Suggested Links

i.MX Yocto Project: Frequently Asked Questions
