Join our teamPF8100-PF8200: 12-channel Power Management Integrated Circuit (PMIC) for High-Performance Processing Applications
Overview
Features
Features
Key Features
- Up to seven high-efficiency buck converters
- Four linear regulators with load switch options
- RTC supply and coin cell charger
- Watchdog timer/monitor
- Monitoring circuit to fit ASIL B safety level
- One-time programmable (OTP) device configuration
- 3.4 MHz I2C communication interface
- 56-pin 8 x 8 QFN package
System Features
- Fast PMIC startup
- Advanced state machine for seamless processor interface
- High-speed I2C interface support (up to 3.4 MHz)
- PGOOD monitor
- User programmable standby and off modes
- Programmable soft start sequence and power down sequence
- Programmable regulator configuration
- 24 channel analog multiplexer for smart system monitoring/diagnostic
Monitoring Circuit to fit ASIL B Safety level
- Independent voltage monitoring with programmable fault protection
- Advance thermal monitoring and protection
- External watchdog monitoring and programmable internal watchdog counter
- I2C CRC and write protection mechanism
- Analog built-in self-test (ABIST)
Programmability
- Supplies, sequencing, and specific functions can be programmed by One Time programmable (OTP) memory
- Standard Predefined OTP supporting popular MCU can be found in data sheet under “ordering information” chapter
- During development phase, Customized OTP part can be programmed using the KITPF8200FRDMPGM: board
- Custom OTP can be provided for production. Please contact your NXP sales channel (NXP or your distributor)
- Custom OTP form can be downloaded PF8x00 Custom OTP Request Form
Product Longevity Program
- This product is included in the NXP Product Longevity program ensuring a stable supply of products for your embedded designs. Automotive target market derivatives (MC33PF8100/8200) are included in the 15-year program and Industrial target market derivatives (MC34PF8100/8200) are included in the 10-year program.
PF8100 / PF8200 Block Diagram
PF8200 Product Image

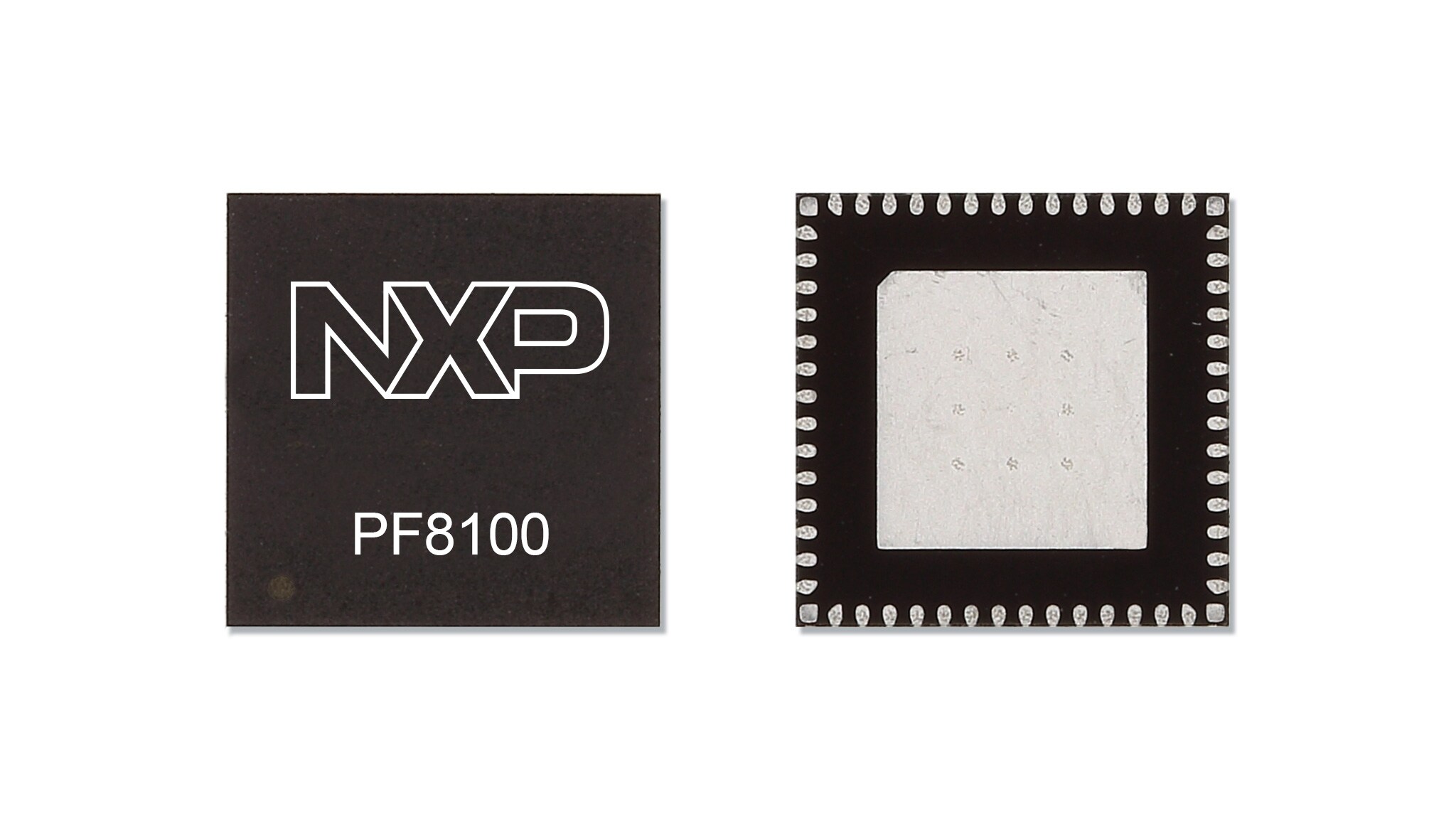

PF8100 Product Image
NXP® Power SBC Application Examples
NXP Power Management Custom OTP Programming
NXP Low Voltage PMIC Family facilitates safe platform development
-
PF8100 / PF8200 Block Diagram
-
PF8200 Product Image
-
PF8100 Product Image
-
NXP® Power SBC Application Examples
-
NXP Power Management Custom OTP Programming -
NXP Low Voltage PMIC Family facilitates safe platform development
PF8100 / PF8200 Block Diagram
PF8200 Product Image
PF8100 Product Image
NXP® Power SBC Application Examples
Key Parametrics
-
- MCU Supported
- i.MX 8X, LS1046, i.MX 8, LS1043A, LA1575, S32V234, S32V
-
- Output Current (A)
- 10
-
- Number of Buck Regulators
- 7
-
- Number of LDO
- 4
-
- Interface and Input Control
- I2C / I2C
Development Boards and Designs
Development Boards and Designs
MPC-LS-VNP-EVB:MPC-LS Evaluation Board for Vehicle Network Processing
MPC-LS Vehicle Network Processing Reference Design
MCIMX8QXP-CPU:i.MX 8QuadXPlus Multisensory Enablement Kit (MEK)
MCIMX8QM-CPU:i.MX 8QuadMax Multisensory Enablement Kit (MEK)
KITPF8200FRDMPGM:PF8200/PF8100 Programming Board
PF8100/PF8200 Customer Evaluation Boards.
Target Applications
Automotive
- Auto Smart Antena
- Automotive High Performance Compute
- Automotive Vision Systems
- Driver Monitoring Systems (DMS) and Occupant Monitoring Systems
- Entry Infotainment / Connected Radio
- Intelligent Roadside Unit
- Mid to High Infotainment / eCockpit
- V2X Communications
Communication Infrastructure
- Branch Router
- Broadband Home Gateway
- Integrated Services Gateway
- IP-PBX
- vCPE/uCPE
- Wireless LAN (WLAN) Access Point
Industrial
- Front View Camera
- Industrial Control - HMI, PLC, IO Controller
- Industrial Gateway
- Surround View
- Vision, Advanced Sensing and Processing Board
Technologies
Comparison Table
Device options for Automotive
| Part number | Target Market | OTP ID | NXP Processor | System comments | Safety Grade | Package |
|---|---|---|---|---|---|---|
| MC33PF8100A0ES | Automotive | N/A | N/A | Not programmed | QM | HVQFN56 (WF-type) 56 pin QFN, 0.5 mm pitch 8 mm x 8mm x 0.85 mm body |
| MC33PF8100CCES | Automotive | CC Report | i.MX8QXP | LPDDR4 Memory | QM | HVQFN56 (WF-type) 56 pin QFN, 0.5 mm pitch 8 mm x 8mm x 0.85 mm body |
| MC33PF8100EPES | Automotive | EP Report | i.MX8QM | LPDDR4 Memory PMIC1 | QM | HVQFN56 (WF-type) 56 pin QFN, 0.5 mm pitch 8 mm x 8mm x 0.85 mm body |
| MC33PF8100EQES | Automotive | EQ Report | i.MX8QM | LPDDR4 Memory PMIC2 | QM | HVQFN56 (WF-type) 56 pin QFN, 0.5 mm pitch 8 mm x 8mm x 0.85 mm body |
| MC33PF8100CFES | Automotive | CF Report | i.MX8QXP | DDR3L Memory | QM | HVQFN56 (WF-type) 56 pin QFN, 0.5 mm pitch 8 mm x 8mm x 0.85 mm body |
| MC33PF8100ERES | Automotive | ER Report | i.MX8QM | DDR4 Memory PMIC1 | QM | HVQFN56 (WF-type) 56 pin QFN, 0.5 mm pitch 8 mm x 8mm x 0.85 mm body |
| MC33PF8100CHES | Automotive | CH Report | i.MX8QM | DDR4 Memory PMIC2 | QM | HVQFN56 (WF-type) 56 pin QFN, 0.5 mm pitch 8 mm x 8mm x 0.85 mm body |
| MC33PF8100EAES | Automotive | EA Report | LS1046A | DDR4 Memory (VDDQ + VTT) | QM | HVQFN56 (WF-type) 56 pin QFN, 0.5 mm pitch 8 mm x 8mm x 0.85 mm body |
| MC33PF8200A0ES | Automotive | N/A | N/A | Not Programmed | ASIL-B | HVQFN56 (WF-type) 56 pin QFN, 0.5 mm pitch 8 mm x 8mm x 0.85 mm body |
| MC33PF8200CXES | Automotive | CX Report | LS1043A | LPDDR4 Memory | ASIL-B | HVQFN56 (WF-type) 56 pin QFN, 0.5 mm pitch 8 mm x 8mm x 0.85 mm body |
| MC33PF8200D2ES | Automotive | D2 Report | S32V234 | DDR3L Memory 10A Core | ASIL-B | HVQFN56 (WF-type) 56 pin QFN, 0.5 mm pitch 8 mm x 8mm x 0.85 mm body |
| MC33PF8200ESES | Automotive | ES Report | i.MX8QM | LPDDR4 Memory PMIC1 | ASIL-B | HVQFN56 (WF-type) 56 pin QFN, 0.5 mm pitch 8 mm x 8mm x 0.85 mm body |
| MC33PF8200DBES | Automotive | DB Report | i.MX8QM | LPDDR4 Memory PMIC2 | ASIL-B | HVQFN56 (WF-type) 56 pin QFN, 0.5 mm pitch 8 mm x 8mm x 0.85 mm body |
| MC33PF8200DEES | Automotive | DE Report | i.MX8QXP | LPDDR4 Memory | ASIL-B | HVQFN56 (WF-type) 56 pin QFN, 0.5 mm pitch 8 mm x 8mm x 0.85 mm body |
| MC33PF8200DFES | Automotive | DF Report | i.MX8QXP | DDR3L Memory | ASIL-B | HVQFN56 (WF-type) 56 pin QFN, 0.5 mm pitch 8 mm x 8mm x 0.85 mm body |
| MC33PF8200ETES | Automotive | ET Report | i.MX8QM | DDR4 Memory PMIC1 | ASIL-B | HVQFN56 (WF-type) 56 pin QFN, 0.5 mm pitch 8 mm x 8mm x 0.85 mm body |
| MC33PF8200DHES | Automotive | DH Report | i.MX8QM | DDR4 Memory PMIC2 | ASIL-B | HVQFN56 (WF-type) 56 pin QFN, 0.5 mm pitch 8 mm x 8mm x 0.85 mm body |
| MC33PF8200EMES | Automotive | EM Report | LS1043 | Triple Phase (VDD) | ASIL-B | HVQFN56 (WF-type) 56 pin QFN, 0.5 mm pitch 8 mm x 8mm x 0.85 mm body |
Device options for Industrial
| Part number | Target Market | OTP ID | NXP Processor | System comments | Safety Grade | Package |
|---|---|---|---|---|---|---|
| MC34PF8100A0EP | Industrial | N/A | N/A | Not programmed | QM | HVQFN56 (E-type) 56 pin QFN, 0.5 mm pitch 8 mm x 8mm x 0.85 mm body |
| MC34PF8100CCEP | Industrial | CC Report | i.MX8QXP | LPDDR4 Memory | QM | HVQFN56 (E-type) 56 pin QFN, 0.5 mm pitch 8 mm x 8mm x 0.85 mm body |
| MC34PF8100EPEP | Industrial | EP Report | i.MX8QM | LPDDR4 Memory PMIC1 | QM | HVQFN56 (E-type) 56 pin QFN, 0.5 mm pitch 8 mm x 8mm x 0.85 mm body |
| MC34PF8100EQEP | Industrial | EQ Report | i.MX8QM | LPDDR4 Memory PMIC2 | QM | HVQFN56 (E-type) 56 pin QFN, 0.5 mm pitch 8 mm x 8mm x 0.85 mm body |
| MC34PF8100CFEP | Industrial | CF Report | i.MX8QXP | DDR3L Memory | QM | HVQFN56 (E-type) 56 pin QFN, 0.5 mm pitch 8 mm x 8mm x 0.85 mm body |
| MC34PF8100EREP | Industrial | ER Report | i.MX8QM | DDR4 Memory PMIC1 | QM | HVQFN56 (E-type) 56 pin QFN, 0.5 mm pitch 8 mm x 8mm x 0.85 mm body |
| MC34PF8100CHEP | Industrial | CH Report | i.MX8QM | DDR4 Memory PMIC2 | QM | HVQFN56 (E-type) 56 pin QFN, 0.5 mm pitch 8 mm x 8mm x 0.85 mm body |
