PowerQUICC® III Processor with DDR2/3, Pattern Matching Engine, PCI Express®

Overview

NXP’s next-generation PowerQUICC^® III integrated communications processors are designed to provide solutions for symmetrical and asymmetrical multi-core systems. Based on the scalable e500 processor and system-on-chip (SoC) platform, they deliver dual-core gigahertz plus processing performance with advanced content processing and security features.

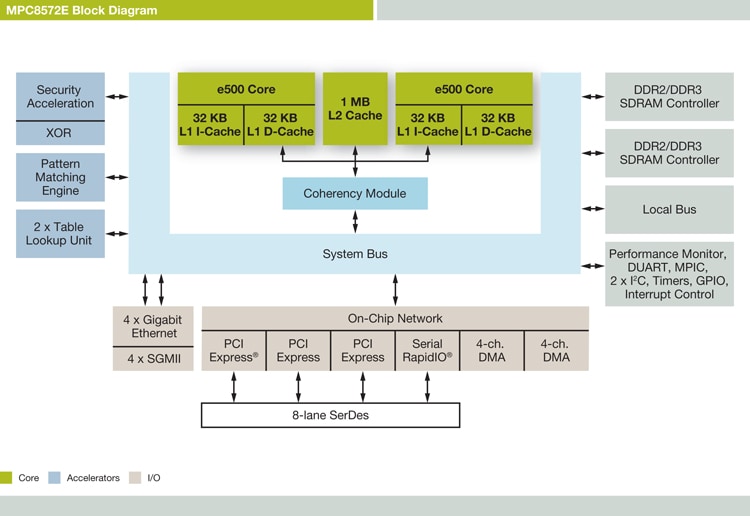

The MPC8572E family of processors offers clock speeds from 1.2 GHz up to 1.5 GHz, combining two powerful e500 processor cores built on Power Architecture® technology, enhanced peripherals and high-speed interconnect technology to balance processor performance with I/O system throughput. These processors also contain application acceleration blocks such as a table lookup unit (TLU) that offloads complex table searches and header inspections, a pattern-matching engine to handle regular expression matching with a deflate engine to manage file decompression and a security engine that accelerates crypto operations in IPsec and SSL/TLS for VPNs.

Based on NXP^®.s 90 nm silicon-on-insulator (SOI) copper interconnect process technology, the MPC8572E is designed to deliver higher performance with lower power dissipation. The MPC8572E processors provide a significant performance increase and represent continuous innovation from the popular PowerQUICC family. With uncompromising integration, the MPC8572E platform builds on the embedded core performance of Power Architecture technology and adds new features to enhance traffic management and security acceleration.

Support for high-speed interfaces on the MPC8572E enables scalable connectivity to network processors and/or ASICs in the data plane while the MPC8572E platform handles complex, computationally demanding control plane processing tasks. These processors include dual memory controllers supporting DDR2 and DDR3 for future proofing and error correction codes for high reliability, enhanced Gigabit Ethernet (GbE) support and double precision floating point.

Features

Dual e500 Power Architecture cores scaling to 1.5 GHz
1 MB L2 cache/SRAM with I/O stashing
32 KB I/D L1 cache per core
Dual integrated DDR2/DDR3 SDRAM memory controllers
- 64-bits (72-bits with ECC) per controller
- to 800 MHz datarate
Four integrated Ethernet controllers (enhanced TSEC)
- 10/100/1000 support
- TCP/UPD offload
- Quality of service support
- IEEE® 1588 support
- Lossless flow control
- SGMII interfaces
Single 10/100 fast Ethernet controller (FEC) with MII (muxed)
TLU offloading complex table searches
Pattern matching engine searches for regular expressions within packet payloads
- Includes packet deflate engine to expose zipped payloads
Security engine
- DES, 3DES, MD-5, SHA-1/2, AES, RSA, RNG, Kasumi F8/F9 and ARC-4 encryption algorithms
PCI Express®
Serial RapidIO®
32-bit local bus running up to 133 MHz
Dual I²C, Dual DMA, DUART, multiprocessor interrupt controller, IEEE1149.1 JTAG test access port
1023-pin FC-PBGA package
This product is included in NXP^®.s product longevity program, with assured supply for a minimum of 10 years after launch

Features

Dual e500 Power Architecture cores scaling to 1.5 GHz
1 MB L2 cache/SRAM with I/O stashing
32 KB I/D L1 cache per core
Dual integrated DDR2/DDR3 SDRAM memory controllers
- 64-bits (72-bits with ECC) per controller
- to 800 MHz datarate
Four integrated Ethernet controllers (enhanced TSEC)
- 10/100/1000 support
- TCP/UPD offload
- Quality of service support
- IEEE® 1588 support
- Lossless flow control
- SGMII interfaces
Single 10/100 fast Ethernet controller (FEC) with MII (muxed)
TLU offloading complex table searches
Pattern matching engine searches for regular expressions within packet payloads
- Includes packet deflate engine to expose zipped payloads
Security engine
- DES, 3DES, MD-5, SHA-1/2, AES, RSA, RNG, Kasumi F8/F9 and ARC-4 encryption algorithms
PCI Express®
Serial RapidIO®
32-bit local bus running up to 133 MHz
Dual I²C, Dual DMA, DUART, multiprocessor interrupt controller, IEEE1149.1 JTAG test access port
1023-pin FC-PBGA package
This product is included in NXP^®.s product longevity program, with assured supply for a minimum of 10 years after launch

Complementary products for your application

Step 1:

Step 2:

MPC8548E : PowerQUICC^® III Processor with DDR2, PCI, PCI Express®, Serial RapidIO, SerDes, 1 GB Ethernet, Security

MPC8641D : High-performance Dual Core Processor

Target Markets

Use a dual core device for higher performance with symmetric multiprocessor (SMP); to collapse two non-SMP operation systems (either homogenous or heterogeneous) onto one device; for split control and data plane applications; for adding services/applications on Linux next to an existing OS; for later in-field upgrade to higher performance by turning on the second core; for in-field “hot swap” OS upgrade by loading new OS to second core before putting first core with old OS into sleep mode.

Networking (switches and routers)

Linecard controller
Linecard control plane
Linecard combined control and data plane
Shelf controller
Centralized processing resource

Telecom

AMC card
Controller on ATCA Carrier Card
Control card for NodeB, BTS, WCDMA, 4G LTE, WiMax
General purpose compute blade

Industrial

Robotics
Test/measurement Networking/telecom
Single board computers
Military/industrial applications
