TWR-K80F150M: Kinetis^® K80 MCU Tower^® System Module

Overview

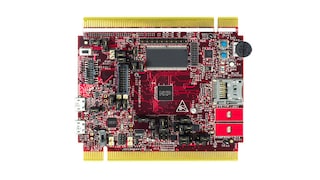

The TWR-K80F150M is a development board for the Kinetis K80, K81, and K82 150Mhz 32-bit Arm^® Cortex^®-M4 MCUs.

The TWR-K80F150M board:

Features the Kinetis MK80FN256VDC15 low-power MCU with 256 KB Flash, 256 KB SRAM, USB, and XIP QuadSPI capabilities
Operates as a standalone debug tool and can also be combined and used as part of the modular Tower System development platform

MoreLess

TWR-K80F150M: Kinetis K80 MCU Tower System Module

TWR-K80F150M: Kinetis<sup>®</sup> K80 MCU Tower<sup>®</sup> System Module

TWR-K80F150M: Kinetis K80 MCU Tower System Module

MCU Minutes | MCUXpresso Software and Tools Overview

Specifications

Supported Devices

Processors and Microcontrollers

K6x Ethernet	K63_120 : Kinetis^® K63-120 MHz, 256KB SRAM, Anti-Tamper Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
K8x Secure	K80_150 : Kinetis^® K80-150 MHz Advanced Security and QuadSPI Microcontrollers (MCUs) Based on Arm^® Cortex^®-M4 Core K81_150 : Kinetis K81-150 MHz HW Cryptographic Co-Processor, Anti-Tamper and QuadSPI Microcontrollers (MCUs) Based on Arm^® Cortex^®-M4 Core K82_150 : Kinetis^® K82-150 MHz HW Cryptographic Co-Processor and QuadSPI Microcontrollers (MCUs) Based on Arm^® Cortex^®-M4 Core

MoreLess

Technical and Functional Specifications

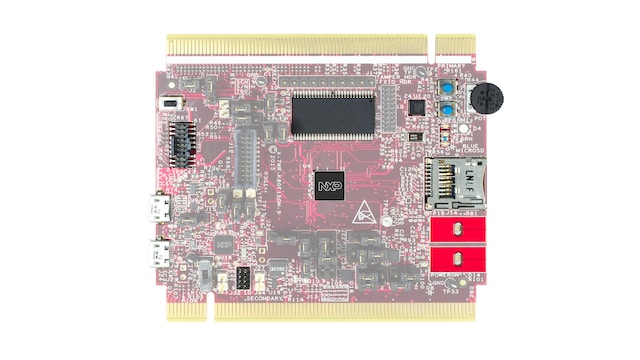

Microcontroller	MK80FN256VDC15 MCU 150 MHz Cortex-M4 core, 256 kB Flash, 256 kB SRAM, 121 XFBGA, with SDRAM controller and USB Tower compatible processor board
Memory	2 x 32 Mbit (4 MB) dual onboard QuadSPI memory @ 1.8 V 64 Mbit (8 MB) SDRAM memory
Connectivity	MicroSD card slot EMVSIM card interface Standalone full-speed USB host and device function Socket for touch keypad plug-in (TWRPI-TOUCH-STR)
Power Management	Board power select with 3.3 V or 1.8 V MCU operation Independent, battery-operated power supply for real-time clock (RTC) module
Debug	Onboard debug circuit: K20DX128VFM5 OpenSDA with virtual serial port
Sensors	Ten (10) axis sensor systems FXOS8700CQ 3D accelerometer + 3D magnetometer MPL3115A2 digital pressure sensor FXAS21002C 3-axis gyroscope
Support	Software support and application development are offered through the Kinetis software development kit (SDK), an extensive suite of robust peripheral drivers, stacks, and middleware (replacing Sample Code Packages/examples). Get expert advice and support by joining the Kinetis Software Development Kit Community forum
User Components	Five (5) user-controlled status LEDs Two (2) capacitive touchpads Two (2) mechanical push buttons Potentiometer

Buy

TWR-K80F150M ^Active
Tower System Development Board for Kinetis K80 and K82 MCUs
- TWR-K80F150M Tower System module
- Quick start guide
- Supporting cables

TWR-K80F150M
1 @ US
$189.00

Use Coupon

Availability?

Distributor

Distributor Name	Region	Inventory	Inventory Date

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Don't have an NXP coupon? You can purchase this product from one of our authorized distributors.
