QorIQ® P2040/P2041 Multicore Communications Processors with Data Path

P2040
  • Not Recommended for New Designs
  • This page contains information on a product that is not recommended for new designs.

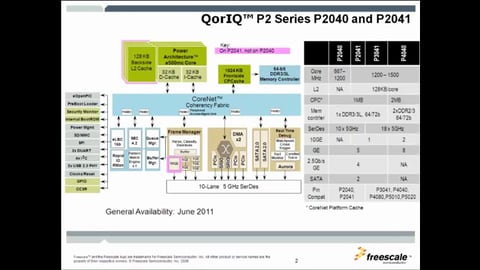

Click over video to play

The QorIQ® P2040 and P2041 quad-core processors bring high-end architectural features pioneered in the P4 platform into the low-end and mid-range quad-core space.

They are software-compatible with members of the P1 family and all devices in the P3, P4 and P5 families. This enables customers to scale software up and down the QorIQ product line. The P2040 and P2041 are pin-compatible, sharing a 23 x 23 mm package.

Product Details

Select a section:

Block Diagram

NXP QorIQ P2040 Communication Processor Block Diagram

NXP QorIQ P4020 Communication Processor Block Diagram
Get diagram PDF

Features

Core Complex

  • Quad e500mc cores to 1.2 GHz (P2040) and 1.5 GHz (P2041) with 32 KB I/D L1
    • 128 KB L2 cache per core (P2041 only)
  • CoreNet® fabric with 1 MB CoreNet platform cache

Networking Elements

  • 10 SerDes lanes up to 5 GHz, supporting 3x PCI Express® 2.0, 2x Serial RapidIO® (1.3+2.1), 5x SGMII, 4x 2.5 Gb/s SGMII, XAUI (P2041 only), 2x Serial ATA 2.0, Aurora debug port

Accelerators and Memory Control

  • 64-bit (72-bit with ECC) DDR3/3L memory controller to 1.2 GHz (P2040) and 1.3 GHz (P2041) data rate
  • Hardware acceleration
    • Frame manager for packet parsing, classification, and policing
    • Queue manager for scheduling, and workload distribution
    • Pattern matching engine for regular expression searches
    • Security block for crypto algorithm acceleration
    • RapidIO message manager for type nine and 11 messaging

Basic Peripherals and Interconnect

  • SD/MMC, 2x DUART, 4x I²C, SPI, 2x RGMII, 2x USB 2.0 with integrated PHY, 16-bit local bus
  • 783-pin FCPBGA package, 23 mm x 23 mm

Additional Features

  • Hardware hypervisor for safe partitioning of operating systems between cores
  • Trusted boot capability to ensure only the correct code is booted and that code is not reverse-engineered

Comparison Table

P2040 P2041
Cores 4 4
Core Frequency 667 to 1.2 GHz 1.2 to 1.5 GHz
L2 Cache - 128 KB/core
L3/Platform Cache 1 MB 1 MB
DDR3 1x 32/64-bit 1x 32/64-bit
GbE - 5x 1 Gigabit Ethernet 1x 10 Gigabit Ethernet
SERDES 10 Lanes 10 Lanes
Security Trust Trust
