i.MX RT1040 Evaluation Kit

MIMXRT1040-EVK

Roll over image to zoom in

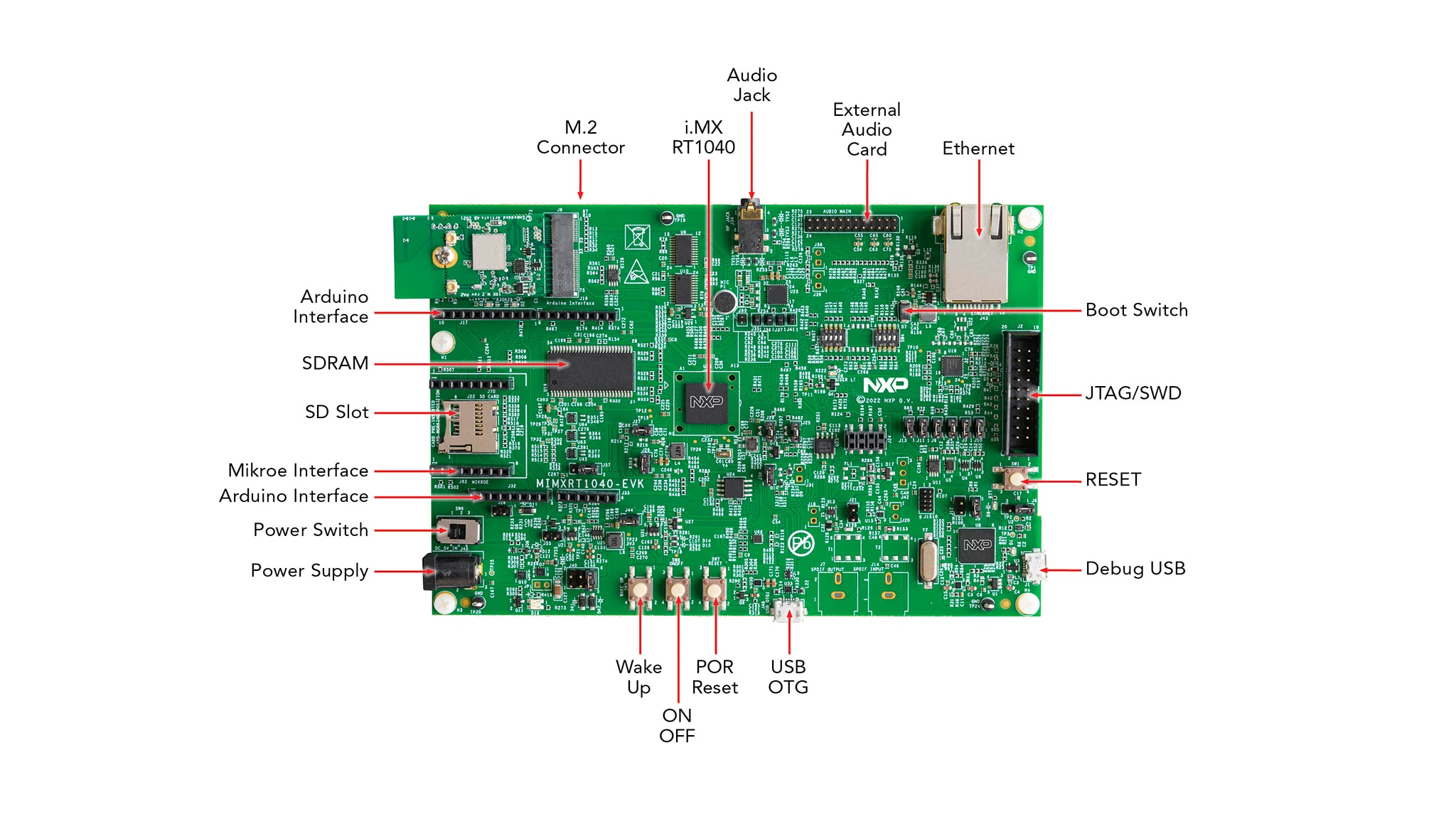

MIMXRT1040-EVK development kit provides the ideal platform for evaluation of and development with the 600MHz i.MX RT1040 Crossover MCU based on the Arm® Cortex®-M7 architecture. The board includes a high-performance onboard debug probe, audio subsystem, accelerometer, networking and USB plus expansion options for displays and other add-on boards. The Kit includes a Murata Wifi module based on NXP's IW416 2.4/5 GHz Dual-Band 1x1 Wi-Fi® 4 (802.11n) + Bluetooth® 5.2 Solution.

The MIMXRT1040-EVK is designed to be a reference for low cost board designs, utilizing a 2 layer PCB design. A design files are available to provide a starting point for your design.

Product Details

Select a section:

Supported Devices

Processors and Microcontrollers

i.MX RT Crossover MCUs

  • i.MX-RT1040: i.MX RT1040 Crossover MCU with Arm® Cortex®-M7 Core

Sensors

Accelerometers

  • FXLS8974CF: ±2g/±4g/±8g/±16g, Low-Power 12-Bit Digital IoT Accelerometer

Features

Audio

  • WM8960 stereo audio codec
  • 4-pole audio headphone + microphone jack
  • External speaker connection points
  • Microphone
  • S/PDIF connector
  • Audio expansion connector

Board Memory

  • 256 Mb SDRAM memory (Winbond W9825G6KH)
  • 64 Mb QSPI Flash (Winbond W25Q64JVSSIQ)
  • TF socket for SD card

Connectivity

  • MURATA Type 1XK Ultra Small Dual band Wi-Fi 11a/b/g/n + Bluetooth 5.2 Module powered by NXP IW416
  • Micro USB host and OTG connectors
  • Ethernet (10/100 M) PHY and RJ45 connector
  • CAN/CAN-FD transceiver (NXP TJA1057GT/3)

Debug Capabilities

  • LPC-Link2 debug high speed USB probe with VCOM port
  • J-Link firmware option
  • SWO trace support
  • JTAG/SWD debug connector to allow debug of target microcontroller using an external probe

Expansion Connectors

  • Arduino UNO R3 expansion header
  • MikroE Click expansion header
  • I2C expansion connector
  • Audio expansion connector

Processor

  • MIMXRT1042XJ M5B processor

Sensors

  • NXP FXLS8974CF: ±2g/±4g/±8g/±16g, Low-Power 12-Bit Digital IoT Accelerometer

User Interface

  • Parallel LCD display connector
  • Wake up / User button
  • User LED

Buy Options

MIMXRT1040-EVK-Image

Click to expand

  • $90.85 USD
  • For a quantity of 1
Buy From Distributor
RK043FN66HS-CTG-Image

Click to expand

  • $44.80 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 77
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor
AUD-EXP-42448-Image

Click to expand

  • $44.85 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 2
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor
